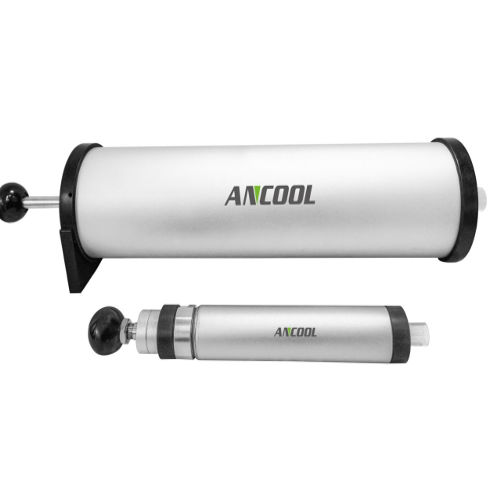

Spirometer Calibration Cylinder

Features

• High-Precision Calibration: Delivers a known air volume for accurate spirometer validation and quality control.
• Multiple Volume Options: Available in 1L, 2L, and 3L capacities to accommodate various calibration needs.
• Durable Construction: Made from high-quality aluminum or stainless steel for long-lasting performance and resistance to wear.
• ATS/ERS Compliance: Meets international pulmonary function testing standards for accurate and consistent calibration.
• Easy Operation: Simple manual operation for quick and efficient calibration checks in clinical and research settings.
• Universal Compatibility: Designed to work with most spirometers and pulmonary function testing devices.
• Stable Airflow Output: Ensures consistent and reliable pressure for calibration accuracy.
• Portable & Lightweight: Compact design for easy transport and use in different testing environments.
• Essential for Quality Control: Ideal for hospitals, clinics, research laboratories, and spirometry device manufacturers.

Scope of Application

Specifications

Features

Key Specifications

The JAY-20-4.0 high-pressure oxygen concentrator is engineered for medical environments that demand higher oxygen flow rates. Delivering 1 to 20 L/min at an outlet pressure of 20–60 PSI (0.14–0.4 MPa), this unit ensures a steady and pure oxygen supply with a concentration of 93% (±3%). Its durable construction and advanced features support continuous operation in demanding settings such as intensive care units and operating rooms.

Key Features

• Flow Rate: 1–20 L/min
• Oxygen Concentration: 93% (±3%)
• Outlet Pressure: 20–60 PSI (0.14–0.4 MPa)
• Power Consumption: ≤2200W
• Sound Level: ≤60 dB
• Net Weight: 118 kg
• Alarms:
  • Power failure alarm
  • High and low pressure alarm
  • Low oxygen concentration alarm: Blue light (>82%), Red light (<82%)
• Mobility: Equipped with wheels for easy transportation
• Applications:
  • Connects with ventilators and anesthesia machines in ICU and operating rooms
  • Suitable for hospitals with up to 100 beds
  • Compatible with hyperbaric oxygen chambers

The JAY-3AW and JAY-5AW are robust oxygen concentrators designed for continuous use. With flow rates of 3L/min and 5L/min, they deliver oxygen at a concentration of 93% (±3%). Their innovative cooling systems ensure reliable 24/7 operation, making them suitable for both home and clinical environments.​

Key features include:

• User-Friendly Interface: Simple controls with an easy-to-read LCD display.

• Mobility: Four flexible castors with two brakes for easy movement and secure positioning.

• Safety Features: Humidifier bottle with a 6PSI pressure relief valve, and alarms for power failure, high/low pressure, and low oxygen concentration.​

These models are compatible with High-Flow Nasal Cannula (HFNC), Hyperbaric Oxygen Chambers (HBOC), and BIPAP systems, enhancing their versatility in oxygen therapy applications. ​

Features

• ✔ Precise DLco Measurement: Accurately assesses lung diffusion capacity for CO (carbon monoxide) to evaluate gas exchange efficiency.
• Advanced Sensor Technology: High-precision sensors ensure reliable and reproducible pulmonary function test results.
• User-Friendly Interface: Intuitive software for easy operation, data analysis, and report generation.
• Compact & Portable Design: Lightweight and ergonomically designed for clinical and research applications.
• Automated Calibration: Ensures consistent accuracy and minimal operator intervention.
• Multi-Parameter Analysis: Measures DLco, lung volumes, and additional respiratory parameters for comprehensive lung function assessment.
• Compliance with Global Standards: Meets ATS/ERS guidelines for pulmonary function testing.
• Patient-Friendly Testing: Fast and comfortable procedures, suitable for all age groups.
• Rapid digital NDIR gas analyzer
• Fast and reliable evaluation of the diffusion capacity
• Unique blocking valve design, Intelligent Demand Valve
• Easy and quick gas administration, no more complicated breathing line design
• ATS/ERS recommended standard test gas mixture
• 0.3% Carbon Monoxide (CO) + 0.3%CH4 +21% Oxygen (O2) , remainder Nitrogen(N2)

Main Functions

• Complete Spirometry (Slow VC, FVC, Flow-Volume Loop, Tidal FVL, MVV)
• Bronchial dilation test pre/post dilator)
• Bronchial provocation test (without hardware)

Features

• Individual dosage of the provocation material

• All-in-one measurement, high automation

Main Function

• Complete Spirometry (Slow VC, FVC, Flow-Volume Loop, Tidal breathing analysis, MVV)
• Bronchial dilation test （pre/post dilator)
• Bronchial provocation test
