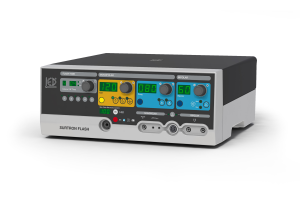

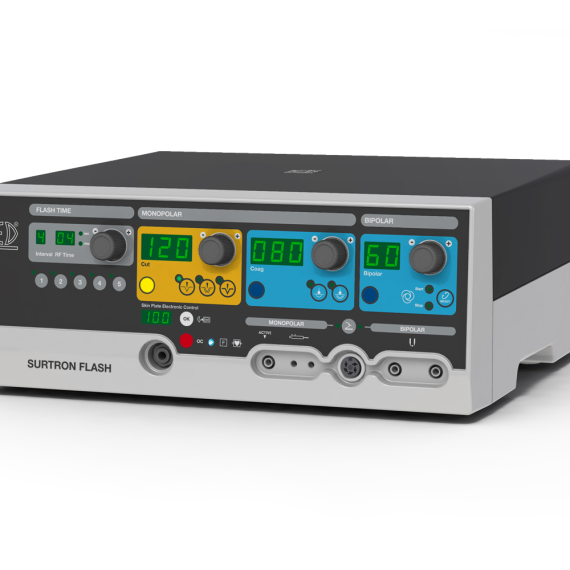

SURTRON FLASH 120

Key Features

• Operating Modes: Supports multiple modes, including pure CUT, cut-coagulation BLEND, incision with reduced eschar production (ENHANCED), superficial coagulation (FORCED COAG), deep coagulation without necrosis (SOFT COAG), BIPOLAR coagulation, and ABLATION. MedicalExpo+2pekamol.com+2Schuco+2

• Digital Interface: Equipped with a microcontroller for digital reading of delivered power and monitoring of operational functions, ensuring reliable performance. Schuco

• Safety Measures: Features patient/plate circuit monitoring, output power monitoring, and self-check control. The connection of the neutral electrode is constantly monitored, with safety control of patient/plate contact using a split neutral electrode.

• Underwater Cutting and Coagulation: Capable of performing procedures in wet environments, expanding its range of applications.

Technical Data

• Max output power CUT 120 W-250 Ω
• Max output power BLEND 90 W-200 Ω
• Max output power ENHANCED 90 W-250 Ω
• Max output power FORCED COAG 80 W-150 Ω
• Max output power SOFT COAG 60 W-100 Ω
• Max output power BIPOLAR COAG 60 W-50 Ω
• Working frequency 600 KHz
• RF power pulse emission time 10 ms – 30 sec
• RF power pulse interval 1 – 9
• Patient circuit F
• Selectable input voltage 115 – 230 Vac
• Mains frequency 50 – 60 Hz
• Electrical input power 350 VA
• Size WxHxD 370x144x319 mm
• Weight 6 Kgs

• Control Plate Circuit / OC patient
• Control of the emitted power
• Self-diagnosis

• EN60601-1
• EN60601-1-2
• EN60601-2-2
• Electrical classification: CF
• MDR 2017/745/UE Class: II b

Features

• Concise and reasonable design, which is easy and convenient to operate.
• Safe and efficient for surgery, and the needle could be withdrawn fluently and accurately.
• Smooth and beautiful suture, small and micro healing scar.
• There's good compatibility with tissues and less inflammatory response.
• It's easy and convenient to take out the stitches, which will promote wound healing.
• Sterile Disposable Skin Stapler reduces the patient's pain and improves operation efficiency.

Features

• High-quality tried-and-tested materials guarantee a long service life for OBS reusable electrosurgical pencils.
• Material is durable for high temperature and high press disinfection for more than 30 times.
• Cost compared to disposable instruments
• The initial cost of the reusable electrosurgical pencil is easily recouped after only a fraction of the expected number of uses and compares favorably to the cost of disposable pencils.

Features

1. LED light positioned between the electrodes enhances the vision during surgery.

Indications for Use

• Ensure that both electrodes are in contact with the tissue to be treated. Activation and saline flow occur simultaneously.
• Ensure that saline is flowing at the time of activation
• These devices should never be used when:
• There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.
• These devices fail the inspection described herein.
• In the presence of flammable gases, flammable prep solutions or drapes. Oxidizing. Gases such as Nitrous Oxide (N2O), or in oxygen-riched environments.
• Do not use monopolar electrosurgery on small appendages, as in circumcision or finger surgery.

Features

• Effective smoke removal: Captures toxic gases and vapors.
• Compact and portable: Weighs 3.5 kg with a trolley cart for easy mobility.
• Quiet operation: Works at 55 dB.
• High efficiency: Processes 3.5-4.2 cubic meters of smoke per hour.
• Automatic startup: Can be activated by an internal sensor or foot switch
