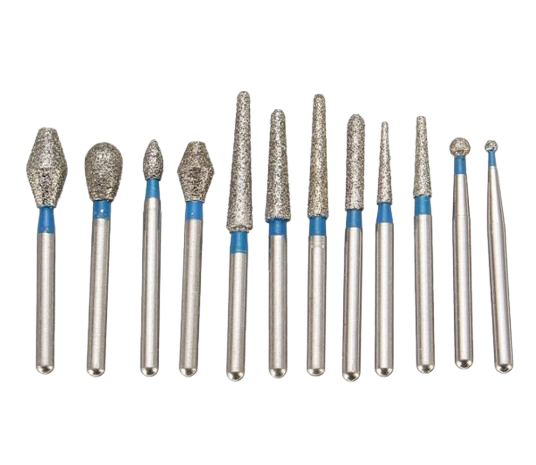

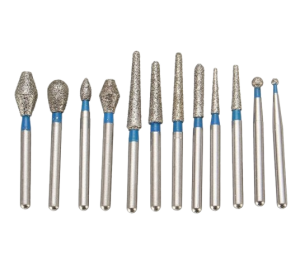

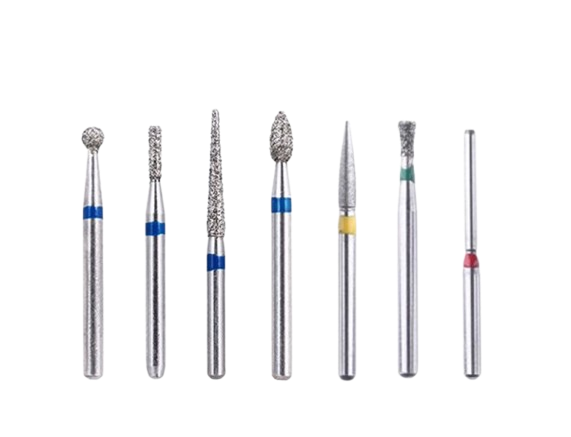

APPLEDENTAL Diamond Burs

Key Features

• High-speed performance up to 400,000 rpm

• Strong tungsten-carbide base with diamond coating

• Multiple shapes for versatile dental applications

• Color-coded grit sizes from super-thick to extra-fine

• Autoclavable at 134 °C for infection control

• Packaged in sets for clinical convenience

Specifications

• Material: Tungsten carbide base with bonded diamond coating

• Rotation speed: Up to 400,000 rpm (high-speed handpiece compatible)

• Shapes available: Cone, fissure, pear, round, inverted cone, tapered fissure

• Grit sizes (color-coded):

  • Black (Super-thick, 150–234 µm)

  • Green (Coarse, 125–150 µm)

  • Blue (Standard, 106–125 µm)

  • Red (Fine, 53–63 µm)

  • Yellow (Extra fine, 20–30 µm)

• Sterilization: Autoclavable up to 134 °C

• Packaging: Sets of 5 or 10 pieces, depending on series (FO, CF, SR, etc.)

• Long functional life
• Sturdy design
• Can be operated without power
• Easy operations

• FreeFill - the newest filling system for liquid Denut's gutta-percha.
• Wireless - minimizing the time and materials needed to fill the channel.
• The use of the device ensures the highest quality and precision in filling the ducts.
• Wireless device 3-dimensional obturation system.
• Fantastic combination of filling with the method of vertical compaction.
• Provides excellent hermetic sealing of the root canal.
• Together, the entire main channel and side channels are filled.
• Excellent control of the honing part and filling of anatomically complex channels.
• Two mobile systems in one device (hot plugger and obturator).
• The obturator cover can be sterilized in an autoclave.
• The device is covered by the manufacturer's one-year warranty (application tips and tips for the plugger are consumable - they are not covered by the warranty).
• Technical data - charging system and batteries:
  • operating voltage - DC 3.7 V,
  • input adapter - AC 100 - 240 V, 50/60 Hz,
  • output - DC 7.5 V, 2.5 A,
  • indicator indicating the status of charging / charging,
  • time to full charge - about 1 hour,
  • two power supplies included.

• Gun - Obturation Gun:
  • heater - DC 3.7 V, 10 W,
  • temperature range - 1500C, 1800C, 2000C, 2200C (visible on the display),
  • working time with continuous use of the gun - about 120 minutes (when the battery is fully charged),
  • automatic shutdown after 5 minutes of non-use (battery saving),
  • automatic shut-off after 15 minutes of continuous operation (prevents burning of the heater),
  • ECO system (energy-saving) - temperature maintained at 1200C in order to warm up to a given temperature faster,
  • induction switch placed in the handle - switches the heating on / off depending on whether the device is held in hand or not,
  • the possibility of setting the needle in any direction (once the bent needle can be used to fill the lower or upper one).

• Plugger - obturation pen:
  • heater - DC 3.7 V, 10 W,
  • temperature range - 1500C, 1800C, 2000C, 2200C (visible on the display),
  • working time for continuous use of the plug - 60 minutes (when the battery is fully charged),
  • 3600 power button,
  • 6 directions of injection tips setting,
  • automatic shutdown after 5 minutes,
  • information about proper connection of the needle,
  • information about the damaged needle.

• Set contains:
  • gun - obturation gun - 1 piece,
  • gun stand with built-in charger - stand for gun - 1 piece,
  • plugger - obturation pen - 1 piece,
  • stand for plugger with built-in charger - stand for pen - 1 piece,
  • injection needles - gun needle - 3 pieces,
  • pen tip - pen tip - 4 pieces,
  • the key for injection needles - adapter - 1 piece,
  • pusher for hot gutta-percha - 2 pieces,
  • thermal casings - heat insulator - 2 pieces,
  • cleaning brush - brush - 1 piece,
  • power supply - 2 pieces,
  • gutta-percha - 20 pieces,
  • instruction - 1 piece.

• There is a possibility to buy tips for the plugger:
  • set - 4 sizes after the play,
  • size F - white (thin),
  • FM size - yellow,
  • size M - red,
  • ML size - black.

• Made in UK and guaranteed accurate to ISO 81060-1
• Range 0–300mmHg, with the scale graduations starting at zero
• Clear white face with sharp black scale
• New flexible shock mount resists any damage to the gauge
• Fine red pointer gives precise indication
• Smaller, lighter and easily portable
• Fitted with your choice of Velcro or Ambidex cuff
• Tough bright white ABS construction with built in carrying handle
• Lightweight ABS cuff container which is very easy to clean

• Simple pencil type grip for easy use and accurate application
• A broad range of applicators
• Freezing temperature
  • Liquid freezing, -89°C / -128°C
  • Contact freezing, -80°C / -112°C
• The level of cold generated is adjusted by the rate at which the metering lever is depressed
• CE marked according to Medical Device II
