Barco AMM240ED
$0.00
Shipped From Abroad

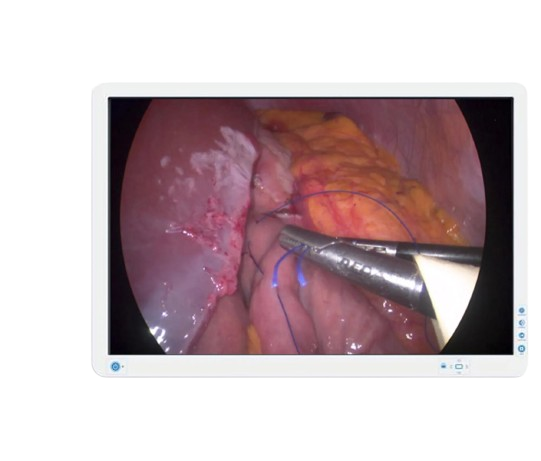

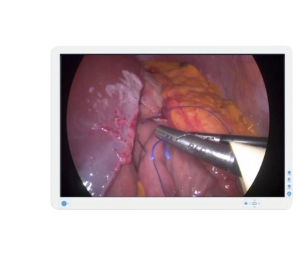

The Barco AMM240ED is a 24-inch LED surgical display designed for near-patient use in the operating room. With 1920 × 1200 resolution, sealed IP22 design, wide connectivity, and Picture-in-Picture support, it’s optimized for endoscopy and surgical imaging.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
Barco’s AMM240ED is a 24-inch near-patient surgical display with LED backlights, featuring a 1920×1200 resolution. Purpose-built for endoscopy imaging, the AMM240ED is a cost-effective but extremely reliable display. Surgical video and images can be placed in Picture-by-Picture mode with independent adjustments.
All-round connectivity
The AMM240ED supports a broad range of input types including DVI, VGA, RGB, Component & Composite Video, as well as HD/SD SDI.
Safe for daily use near patients
Thanks to the sealed design (rated IP22), a protective filter, and cable cover, the AMM240ED is safe for use near patients. It also ensures safe and easy mounting onto surgical arms thanks to the VESA compliance.
Key Features
-
24-inch TFT AM LCD with LED backlighting
-
Resolution: 1920 × 1200 (16:10)
-
Wide connectivity: DVI-I, VGA, Y/C, RGB, Component, HD/SD SDI
-
Video outputs: DVI-I, 3G-SDI
-
Picture-in-Picture mode with independent image control
-
Sealed design (IP22) for safe near-patient use
-
Anti-reflective protective front screen
-
VESA 75 × 75 and 100 × 100 mounting
-
Gamma curve selection (1.8 to 2.4)
Technical Specifications
Category | Details |
---|---|
Screen technology | TFT AM LCD / LED Backlight |
Active screen size (diagonal) | 611.3 mm (24.07″) |
Active screen size (H × V) | 520.4 × 326 mm (20.46 × 12.83″) |
Aspect ratio | 16:10 |
Resolution | 1920 × 1200 |
Pixel pitch | 0.27 mm |
Color support | 16.7 million (8-bit) |
Viewing angle | 178° horizontal / 178° vertical |
Luminance | 300 cd/m² |
Contrast ratio | 1000:1 |
Gamma curve | 1.8, 1.9, 1.95, 2.1, 2.2, 2.3, 2.4 |
Front protection screen | Anti-reflective PMMA protective cover |
Video inputs | 1 × DVI-I, 1 × HD15, 1 × Y/C, 1 × 3G-SDI, 1 × RGBS / YPbPr |
Video outputs | 1 × DVI-I, 1 × 3G-SDI |
Features | Picture-in-Picture |
External power supply | AC input: 90–264 VAC / 47–63 Hz auto-switch DC output: ±24VDC / 1.7A |
Dimensions (W × H × D) | 570 × 386.9 × 63.2 mm (22.4 × 15.2 × 2.5″) |
Net weight | 7.35 kg |
Mounting standard | VESA 75 × 75 / 100 × 100 mm |
Operating temperature | 10°C – 40°C |
Storage temperature | –18°C – 60°C |
Operating humidity | 25% – 75% (non-condensing) |
Storage humidity | 15% – 90% (non-condensing) |
Certification & compliance | Medical Safety: CE (Medical Device Class I), IEC 60601-1:2012 Ed. 3.1, EN 60601-1:2006 +A1:2013, ANSI/AAMI ES 60601-1:2005/(R)2012 + A1:2012 + C1:2009/(R)2012 + A2:2010/(R)2012, CAN/CSA-C22.2 No.60601-1:14, AS/NZS 3200-1:1988, CCC (GB4943.1-2011), CB-ITE (IEC 60950-1:2005 (2nd Ed); Am1:2009 + Am2:2013) Green Compliance: RoHS-2, REACH, WEEE |
Protection rating | IP22 |
