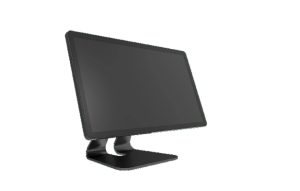

Barco MDAC‑2215

$0.00

Shipped From Abroad

The Barco MDAC-2215 is a 15.6-inch Full HD medical touchscreen display designed for multimodal imaging. It supports precise capacitive touch even with surgical gloves, ergonomic use, easy mounting, and thorough cleaning – ideal for OR carts, trolleys, and point-of-care settings.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Barco-Health

Description

The MDAC-2215 is a compact 15.6″ touchscreen display built for healthcare environments needing reliable touch interaction. With Full HD resolution and projected capacitive (P-Cap) multi-touch, it supports gesture controls even when users wear gloves. It features an HID-compliant USB interface (no extra driver required), ergonomic tilt adjustability, VESA mounting for arms or carts, and a design optimized for easy cleaning and disinfection. It’s suited to surgical suites, diagnostic stations, and clinical carts requiring direct user input on imaging systems.

Features
  • 15.6″ Full HD (1920 × 1080) capacitive touchscreen

  • Multi-touch (10-point P-Cap) support, glove-compatible

  • HID USB interface (plug & play)

  • Tilt-adjustable stand plus VESA 100×100 mounting

  • Designed for easy cleaning and disinfection

  • Compact form factor suited for OR carts and small systems

  • Multi-modal imaging support

  • Certified for medical use (CE, FCC)

Technical Specifications
Specification Detail
Screen Technology TFT LCD
Active Size (Diagonal) ~15.6″
Resolution 1920 × 1080 (Full HD)
Luminance 360 cd/m²
Color Support 16.7 million colors (max)
Contrast Ratio 1000:1 (typical)
Viewing Angle Minimum 160°
Response Time Up to 35 ms (Tr: 19 ms, Tf: 16 ms)
Touch Input P-Cap, 10-point
Certifications CE, FCC
IP Rating IPX0 (no special ingress protection)
Operating Temp 0 °C to 40 °C
Storage Temp –20 °C to 60 °C
Operating Humidity 0% to 90% (non-condensing)
Mounting Standard VESA 100 × 100 mm
Dimensions (without stand) 224 × 370 × 28 mm
Dimensions (with stand) 250 × 370 × 170 mm
Net Weight 3.80 kg
