Barco MDMX‑22400 GNTB
$0.00
Shipped From Abroad

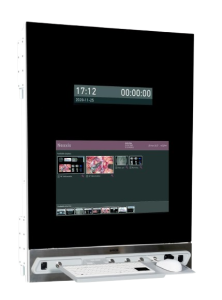

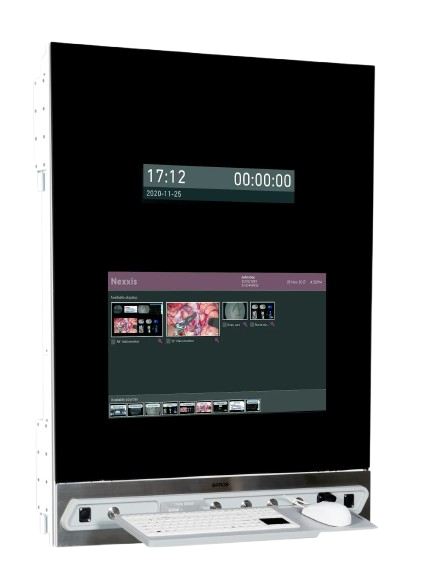

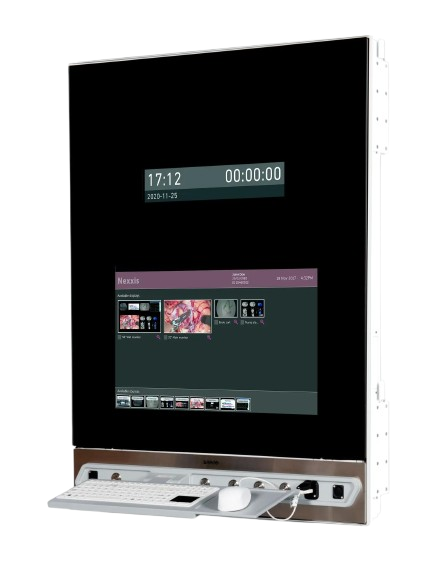

The Barco MDMX-22400 GNTB is a 24-inch Full HD in-wall OR console with integrated Nexxis connectivity and optional touchscreen. It merges nurse station and AV control functions into a compact, easy-clean, wall-mounted design for the operating room.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
MDMX-22400 GNTB is a 24” Full-HD in-wall OR console with integrated Nexxis connectivity and optional touchscreen. The console consists of a single display configuration and allows the entire OR staff to combine and view multiple images, with an intuitive control system for flexible and easy use.
Optimize valuable space
The MDMX-22400 GNTB is multifunctional: it can function as a nurse station area presenting patient and surgery information, and it’s also an AV control station. It offers direct control of remote PC sources and, thanks to its integrated Nexxis decoder, video routing and compositions can be managed without additional installation or configuration.
The console is integrated in the OR wall, so it doesn’t take up any additional space. The black protective, anti-reflective glass front cover allows for easy cleaning and disinfecting.
Enjoy maximum flexibility with Nexxis inside
The MDMX-22400 GNTB fits perfectly within Nexxis’ plug-and-play system: you can route any Nexxis source to the screen, on which multiple types of compositions are possible.
Additionally, a programmable Nexxis button makes it easy to adapt the console’s functionalities to the OR team’s needs: start/stop recordings, take snapshots, change video layouts, reset video source, …
Tailor it to your needs
All components are integrated in the console, which reduces installation time and cost. An optional foldable IP68 keyboard is available in several regional variants (US, German, Italian, French, Spanish, Turkish), as well as a trackpad and USB mouse. The MDMX-22400 GNTB can be combined with the MDMX-25500 GNNB 55” console, with an optional second keyboard, for even more screen surface.
- Enjoy ergonomic viewing support for everyone in the OR: from doctors and nurses to trainees
- Choose the touchscreen option and work even more quickly and easily
- See time and date, synced with the hospital network, from anywhere in the OR
- Rely on Stopwatch functions for time-sensitive interventions
- Connect mobile devices, such as mobile C-arm video sources, to Nexxis
- Interact with remote-PC video sources as if you’re in front of them
Key Features
-
24″ Full HD (1920 × 1080) IPS / WLED panel
-
Integrated Nexxis decoder and connectivity for video routing
-
An optional touchscreen interface for control
-
Wall-mounted design saves floor space
-
Anti-reflective protective glass, easy to clean
-
Programmable Nexxis function button (e.g., record, snapshot, layout change)
-
Supports multiple video compositions (PiP / PaP)
-
Remote PC source control via console
-
Optional foldable IP68 keyboard, trackpad, USB mouse
-
In-wall installation, minimal hardware exposure
Specifications
Specification | Detail |
---|---|
Screen / Backlight Technology | IPS / WLED |
Active Screen Size (Diagonal) | 605 mm (23.8″) |
Active Screen Area (H × V) | 527 × 296 mm |
Aspect Ratio | 16:9 |
Resolution | 1920 × 1080 (Full HD) |
Pixel Pitch | 0.275 × 0.275 mm |
Color / Gray Imaging | Supported |
Bit Depth | 8 bits per channel |
Viewing Angle | 178° (horizontal & vertical) |
Luminance (Typical) | 250 cd/m² |
Contrast Ratio | 1000:1 |
Response Time | 14 ms (typical) |
Screen Protection | Anti-reflective front glass |
Video Input | 1 × 10 Gbps Fiber Optic interface (Nexxis link) |
Optional Input | 2 × 10 Gbps fiber for mobile device connectivity |
Embedded Decoder | MNA-420 Nexxis decoder |
USB / Peripheral | 1 × USB 2.0 downstream (for mouse / control) |
Control Features | SmartBar (date/time/stopwatch), front power button |
Power Supply | 100–240 VAC, 50/60 Hz |
Power Consumption | 75 W maximum |
Dimensions (W × H × D) | 796 × 1050 × 120 mm |
Net Weight | 54 kg (with keyboard/monitor module) |
Mounting | In-wall installation |
Certifications / Compliance | CE (Medical Device Class I), CCC (China) Safety / EMC: IEC / EN 60601-1, IEC 60601-1-2, FCC Class B, etc. |
Protection / Warranty | Protective glass, 2-year warranty |
