New

Barco MDMX-22449 GNTB

$0.00

Shipped From Abroad

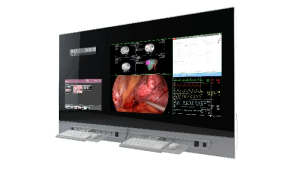

The Barco MDMX-22449 GNTB is a dual-display in-wall OR console combining a 24″ Full HD panel and a 49″ 4K panel. It integrates Nexxis connectivity, an optional touchscreen, and a protective glass front—ideal for surgical and AV control workflows.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Barco-Health

Description

MDMX-22449 GNTB is an in-wall OR console that consists of a 24” Full-HD and a 49” 4K display, with an optional touchscreen. It includes integrated Nexxis connectivity and can also offer touchscreen functionality. The console allows the entire OR staff to combine and view multiple images, with an intuitive control system for flexible and easy use.

Optimize valuable space

The MDMX-22449 GNTB is multifunctional: it can function as a nurse station area presenting patient and surgery information, and it’s also an AV control station. It offers direct control of remote PC sources and, thanks to its integrated Nexxis decoder, video routing and compositions can be managed without additional installation or configuration.

The console is integrated into the OR wall, so it doesn’t take up any additional space. The black protective, anti-reflective glass front cover allows for easy cleaning and disinfecting.

Enjoy maximum flexibility with Nexxis inside

The MDMX-22449 GNTB fits perfectly within Nexxis’ plug-and-play system: you can route any Nexxis source to the screen, on which multiple types of compositions are possible.

Additionally, a programmable Nexxis button makes it easy to adapt the console’s functionalities to the OR team’s needs: start/stop recordings, take snapshots, change video layouts, reset video source, …

Tailor it to your needs

All components are integrated in the console, which reduces installation time and cost. One or two optional foldable IP68 keyboards are available in several regional variants (US, German, Italian, French, Spanish, Turkish), as well as trackpads and USB mice.

  • Enjoy ergonomic viewing support for everyone in the OR: from doctors and nurses to trainees
  • Choose the touchscreen option and work even more quickly and easily
  • See time and date, synced with the hospital network, from anywhere in the OR
  • Rely on Stopwatch functions for time-sensitive interventions
  • Connect mobile devices, such as mobile C-arm video sources, to Nexxis
  • Use the PACS optimization button to quickly switch between color profiles for optimal viewing of PACS images or other modalities
  • Interact with remote-PC video sources as if you’re in front of them
Key Features
  • Dual-display configuration: 24″ Full HD plus 49″ 4K

  • Embedded Nexxis video decoding and routing

  • Optional touchscreen and foldable keyboards

  • Protective anti-reflective front glass

  • Programmable Nexxis function button (snapshot, layout switch, etc.)

  • Video layout flexibility: PiP, PaP, quad, cloning

  • Compact in-wall installation without a floor footprint

  • Control of remote sources via console UI

  • Support for mobile inputs via fiber interface

Specifications
Parameter Specification
Screen / Backlight 24″: IPS / WLED; 49″: IPS / WLED (assets.barco.com)
Diagonals 24″ (605 mm), 49″ (1232 mm)
Active Sizes (H × V) 24″: 527 × 296 mm; 49″: 1074 × 604 mm
Aspect Ratio 16:9 (both displays)
Resolution 24″: 1920 × 1080; 49″: 3840 × 2160
Pixel Pitch 24″: 0.275 mm; 49″: 0.280 mm
Bit Depth / Color 24″: 8 bpc; 49″: 10 bpc
Viewing Angle 178° (H, V) for both
Luminance (Typical) 24″: 250 cd/m²; 49″: 500 cd/m²
Contrast Ratio 24″: 1000:1; 49″: 1100:1
Response Time 24″: 14 ms; 49″: 8 ms
Protective Front Anti-reflective glass cover
Video Inputs 1 × 10 Gbps fiber interface (24″ Nexxis link); 2 × 10 Gbps fiber (49″ link) (assets.barco.com)
Options Up to 4 fiber links for mobile device inputs
Embedded Decoders MNA-420 (24″), MNA-440 (49″)
Features Video layouts (PiP/PaP/Quad), remote PC control, programmable function key
USB / Control 2 × USB 2.0 downstream for peripheral control
Power 100–240 VAC, up to 3 A
Power Consumption 230 W (max)
Dimensions (W × H × D) 1896 × 1050 × 120 mm
Weight ~110 kg (with keyboard module)
Mounting In-wall installation
Compliance CE (Class I), IEC 60601-1, IEC 60601-1-2, EMC, ROHS, REACH, WEEE (assets.barco.com)
Warranty 2 years
