New

Barco MDSC‑8427

$0.00

Shipped From Abroad

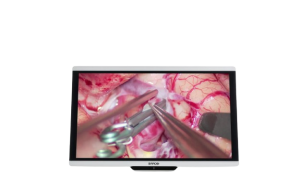

The Barco MDSC-8427 is a 27″ 4K UHD surgical display built for the operating room. It offers wide color gamut, calibrated imaging, multi-modality support, and features like failover, front/back UI, and high brightness for critical real-time visualization.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Barco-Health

Description

The Barco MDSC-8427 is engineered for endoscopy and integrated OR environments, delivering 4K UHD (3840 × 2160) resolution with IPS-PRO/AM LCD and LED backlighting. It supports broad color spaces (ITU-709, DCI-P3, BT.2020) and advanced calibration algorithms for consistent, accurate color. The display includes front and rear user interfaces, hotkeys, and programmable layouts. With features like automated failover, splash-resistant housing, and optional 12G-SDI / quad-link 3G-SDI inputs, it is designed for safe, flexible, and high-fidelity surgical visualization.

Features

True-to-life colors in the surgical suite

The MDSC-8427 has been designed for endoscopy imaging and the integrated operating room. The display has a wide color gamut and offers advanced color calibration algorithms. This results in the most accurate color reproduction, making it the preferred choice for real-time critical imaging.

User friendly

The dual user interface – there is one at the front as well as at the back – makes it easy to operate the display. The touch screen functions at the front can be programmed to meet the personal preferences of surgical staff. The intuitive user interface makes it easy to set up the screen or change the layout configurations of the display to fit the procedure. Four dedicated shortcut buttons enable fluent configuration of the display.

Distinctive design

The 27” screen delivers a stylish, sleek solution for 4K visualization in the operating room. Every detail has been carefully envisioned to assure a professional, purposeful, and elegant fit for the surgical suite. The 27” size offers a lightweight and attractive alternative to current 24” or 26” Full HD displays.

Perfectly safe

This 4K display features a unique, automated failover feature. A backup signal is guaranteed at all times – with no intervention – to ensure safe surgery. The display is easy to disinfect thanks to the smooth surface and splash-proof housing. The integrated cable cover combined with the rubber joystick ensure optimal hygiene. Needless to say, it has been approved for use near patients.

Specifications
Category Specification
Screen
Technology TFT AM LCD / IPS-PRO / LED backlight
Diagonal Size 27″ (685 mm)
Active Area (H × V) 597 × 336 mm
Aspect Ratio 16:9
Resolution UHD (3840 × 2160)
Pixel Pitch 0.155 mm
Color Support 1 Billion (30-bit depth)
Color Gamut Adobe 92% (wide); Calibrated to ITU-709, DCI-P3, BT.2020
Viewing Angle 178° (H) / 178° (V)
Luminance Max: 750 cd/m²; Stabilized: 550 cd/m² @6500K
Contrast Ratio 1400:1 (typical)
Response Time 20 ms (Ton + Toff)
White Point 5600K, 6500K, 7600K, 9300K
Gamma Curve Native, 1.8, Video, 2.2, 2.4, DICOM
Front Protection 2-sided AR glass with anti-fingerprint
Controls
Front Keyboard 5-key capacitive touch (user programmable)
Rear Keyboard 5-key membrane (menu navigation)
Video Inputs – LED Model
DisplayPort 1 × DP 1.1 (3840×2160 @30Hz), 2 × DP 1.1 (1920×2160 @50/60Hz), 1 × DP 1.2 MST (3840×2160 @50/60Hz)
HDMI 2 × HDMI 2.0 (3840×2160 @50/60Hz)
DVI 1 × DVI (FHD, upscaled to UHD)
SDI 1 × 3G-SDI (FHD, upscaled to UHD)
Video Inputs – 12G Model
SDI Quad-link 3G-SDI (4096×2160 @50/60Hz), 12G-SDI (4096×2160 @50/60Hz)
DisplayPort 1 × DP 1.1 (4096×2160 @25/30Hz), 2 × DP 1.1 (2048×2160 @50/60Hz), 1 × DP 1.2 MST (4096×2160 @50/60Hz)
HDMI 2 × HDMI 2.0 (4096×2160 @50/60Hz)
DVI 1 × DVI-SL (FHD, upscaled to 4K)
Video Outputs
LED Model 1 × 3G-SDI (loop-through), 1 × DVI (clone, downscaled to FHD)
12G Model 2 × 12G-SDI (loop-through), 1 × DVI (clone, downscaled to FHD)
Features Low latency video processing, noise reduction, PiP/PbP, image mirror/rotation, failover mode, legacy signal compatibility, screen clone on DVI out, programmable keys, DC power output, cable cover
Remote Control USB Type-B (firmware & remote), DDC via DVI & DP
Power
Consumption LED: Max 100W / 25V ±10% (Low Power: 18W); 12G: Max 120W / 25V ±10% (Low Power: 33W); Power-off: ~1W
AC Input 100–240 VAC, 47–63 Hz (auto-switch)
DC Output +25V / 8A
DC Connector +5V / 2A (also via DVI, DP, USB)
Dimensions & Weight
Display (W × H × D) 657 × 418 × 75 mm
Packaged 860 × 560 × 180 mm
Net Weight 9.1 kg
Packaged Weight 13.2 kg
Mounting Standard VESA 100 × 100 mm
Environmental
Operating Temperature 0–40°C (safety), 5–35°C (recommended)
Storage Temperature −20–60°C
Operating Humidity 20%–85% RH
Storage Humidity 10%–85% RH
Compliance & Approvals Medical safety (ANSI/AAMI ES60601-1, IEC 60601-1, EN 60601-1), EMC (IEC/EN 60601-1-2, EN55011/CISPR 11, FCC Class B), CE, c-UL-us, DEMKO, CCC, INMETRO, BIS
Green Compliance RoHS-3, REACH, WEEE
Protection IP21 (IP45 front)
Warranty 3 years
