New

Barco MDSC-8255

$0.00

Shipped From Abroad

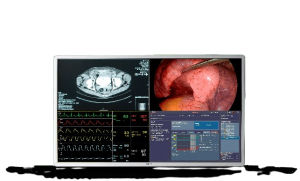

The Barco MDSC-8255 is a 55-inch 4K UHD surgical display designed for review and referral imaging in the operating room. It consolidates multiple image sources into a single, high-resolution screen with seamless integration into video distribution systems.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Barco-Health

Description



Barco’s MDSC-8255 is a 55-inch surgical display purpose-built for ultra-high resolution, multi-image viewing in the digital operating room. Thanks to its high-quality video performance and lightweight housing with shallow depth and thin bezel, it’s the ideal complement of any advanced video distribution system in the OR.

Large-screen 4K UHD resolution display for referral imaging

A future-proof choice for referral imaging in the OR, the MDSC-8255 can present information previously shown on four 27” monitors on one large screen, with all four images in full HD. Thanks to the integrated 4K decoder (optional) it offers seamless integration with Barco’s Nexxis video-over-IP solution.

Wall-mount flexibility

With its protective front glass, shallow depth, thin bezel, and lightweight design, the MDSC-8255 is perfect for wall mounting.

Delivering image quality on large screens

Color-calibrated, artifact-free images in 4K resolution: the MDSC-8255 presents surgeons with accurate, realistic images and excellent depth perception. Advanced video processing features and noise reduction algorithms, and a full 10-bit image processing chain make this display ideal for consultation of any kind of medical referral images inside the OR.

Key Features
  • 55″ (54.6″ viewable) 4K UHD surgical display

  • TFT AM LCD / IPS with LED backlight

  • 10-bit color processing, calibrated to ITU-709, DCI-P3, BT.2020

  • Max luminance ~ 500 cd/m²; stabilized ~300 cd/m² @ 6500K

  • Contrast ratio ~ 1100:1; response time 8 ms (gray-to-gray)

  • Supports multiple video formats: DP, HDMI, DVI, 12G-SDI, quad-link 3G-SDI

  • Multi-image support: Picture-in-Picture, Picture-by-Picture, mirror/rotation, failover mode

  • Protective scratch-resistant AR glass front

  • Side membrane keyboard control panel

  • VESA 200×200 & 600×200 mounting support

Technical Specifications
Specification Value / Detail
Screen Technology TFT AM LCD / IPS with LED backlight
Diagonal Size 54.6″ / 1388 mm
Active Area (H × V) 1210 × 640 mm
Aspect Ratio 16:9
Resolution 3840 × 2160 (4K UHD)
Pixel Pitch 0.315 mm
Color Support 1.07 billion (10-bit)
Color Calibration ITU-709, DCI-P3, BT.2020
Viewing Angle 178° horizontal/vertical
Luminance Max ~500 cd/m²; stabilized ~300 cd/m² @6500K
Contrast Ratio ~1100:1
Response Time 8 ms (gray-to-gray typical)
White Points 5600K, 6500K, 7600K, 9300K
Gamma Curves Native, 1.8, Video, 2.2, 2.4, DICOM
Keyboard Side membrane keyboard
Front Protection Scratch-resistant AR glass, 2-sided
Video Inputs DP 1.1, DP MST, HDMI 2.0, DVI, 3G-SDI, 12G-SDI, quad-link 3G-SDI (varies by version)
Video Outputs 3G-SDI loop-through, DVI clone (downscaled)
Power Consumption LED: 144 W (max); 12G version: ~162 W; MNA variant ~170 W
Dimensions (W × H × D) 1259 × 733 × 87 mm
Net Weight ~33.2 kg (LED variant)
Mounting VESA 200×200 & 600×200 mm
Operating Temperature 0°C to 35°C
Storage Temperature –20°C to 60°C
Operating Humidity 10% to 90% RH
Storage Humidity 5% to 90% RH
Compliance & Certifications IEC 60601-1, IEC 60601-1-2, ANSI/AAMI ES60601-1, EN60601-1, FCC Class B, CE, CCC, RoHS, REACH, WEEE
