Blood Pressure Simulator

Brands: Preclinic

~~$0.00~~

Shipped From Abroad

The Blood Pressure Simulator from Preclinic is a high-precision simulation device used in medical training.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Preclinic

Description
Reviews (0)

Description

Product Description

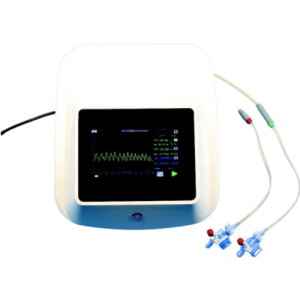

The Blood Pressure Simulator from Preclinic is a high-precision simulation device used in medical training. It consists of a pressure tester, display module, and sensors, and is used for fluid pressure testing in human blood flow simulation systems. This simulator allows for custom testing of pressure differences across two or more channels, enabling realistic training scenarios. Manufactured from high-quality materials, it’s built to endure repeated training use in educational and clinical settings.

Key Features & Specifications

Feature	Details
Composition	Pressure tester, display screen, pressure sensor.
Channels	4 channels capability
Pressure Range	50 mmHg to 300 mmHg
Voltage	220 V
Dimensions	320 × 260 × 140 mm (Length × Width × Height)
Performance	Measures pressure differences between channels
Fluid Temperature Control	Included heating & temperature control for simulated fluids
Model	PLAB4001
Real-Time Curve & Data Export	Supports real-time curve display and data export (for comparison between channels)

Reviews

There are no reviews yet.

Be the first to review “Blood Pressure Simulator”
