New

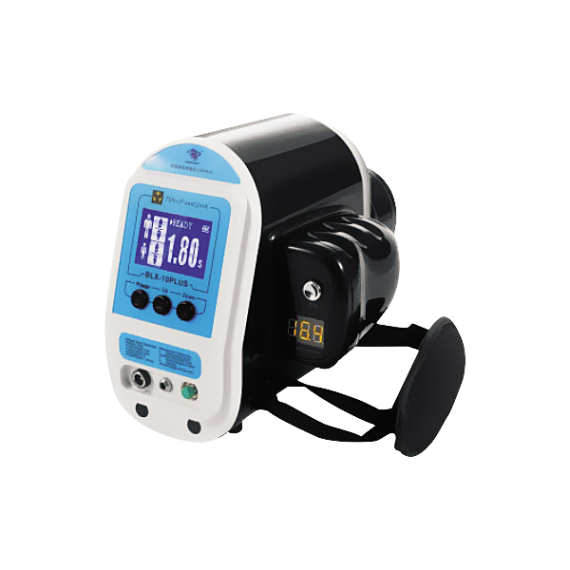

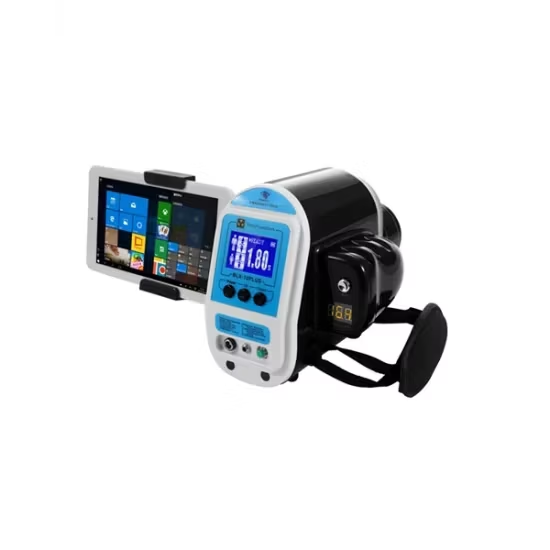

BLX-10 Plus Intraoral Imaging High Frequency X-ray Machine

$0.00

Shipped From Abroad

The BLX-10 Plus Intraoral Imaging High-Frequency X-ray Machine provides portable, high-quality dental imaging with adjustable exposure times and low radiation leakage. Its compact design and compatibility with various imaging mediums make it an ideal choice for modern dental practices seeking efficiency and safety in radiography.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Fsfame

Description

The BLX-10 Plus Intraoral Imaging High-Frequency X-ray Machine is designed for dental professionals seeking a portable and efficient radiography solution. Operating at a high frequency of 30 kHz, it ensures clear and stable images. The device features adjustable exposure times ranging from 0.1 to 1.8 seconds, catering to various diagnostic needs. Its compact design, weighing approximately 2.5 kg, allows for easy transportation and use in multiple clinical settings. With a tube voltage of 70 kV and a tube current of 2 mA, it delivers precise imaging while maintaining radiation leakage below 20 μGy/h, adhering to international safety standards. The BLX-10 Plus is compatible with both traditional dental films and digital sensors, making it a versatile addition to any dental practice.

Key Features
  • High-Frequency Operation: Operates at 30 kHz, ensuring stable and clear imaging results.

  • Adjustable Exposure Time: Exposure time ranges from 0.1 to 1.8 seconds, allowing flexibility based on diagnostic requirements.

  • Toshiba 0.3mm Micro-Focus Tube: Delivers clearer and more detailed images, crucial for precise diagnostics.

  • Radiation Protection: Equipped with multilayer X-ray shielding, ensuring safety for both operator and patient.

  • Portable Design: Compact in volume and light in weight (approximately 2.5 kg), convenient for carrying and operation.

  • Compatibility: Compatible with both traditional dental films and digital sensors, facilitating integration into different imaging workflows.

Specifications
Specification Details
Tube Voltage 70 kV (fixed)
Tube Current 2 mA (fixed)
Frequency 30 kHz
Exposure Time 0.1–1.8 seconds
Focus Spot Size 0.3 mm (Toshiba tube)
Radiation Leakage <20 μGy/h
Power Supply DC 16.8V rechargeable battery
Weight Approximately 2.5 kg
Dimensions 215 × 140 × 160 mm
Operating Temperature 5–40ºC
Humidity <80% RH
