New

BR-102 plus

Brands: SCHILLER

~~$0.00~~

Shipped From Abroad

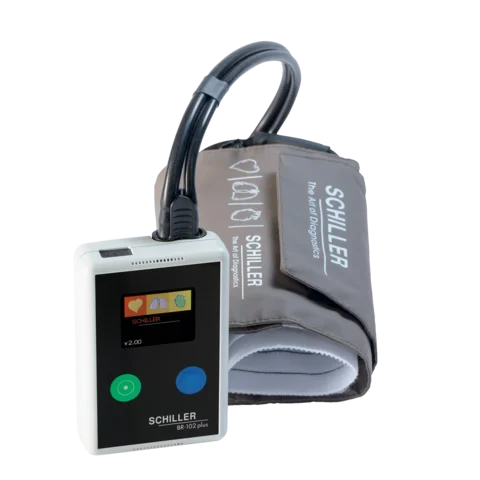

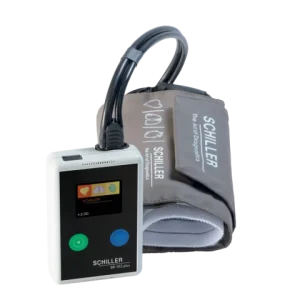

The BR-102 plus is a compact ambulatory blood-pressure recorder, combining either dual-method measurements (auscultatory + oscillometric) or purely oscillometric mode. Designed for patient comfort, it features minimal inflation and high accuracy for 24- or 48-hour monitoring.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: SCHILLER

Description
Reviews (0)

Description

Designed for long-term or ambulatory blood-pressure monitoring (ABPM), the BR-102 plus records readings over 24 or 48 hours while patients continue daily activities. It offers two versions: one using both auscultatory and oscillometric methods (with oscillometric as backup) and a second version using only oscillometric measurement. Its mini-pump system inflates only as much as necessary, reducing noise and discomfort. The device pairs with analysis software for detailed profiling of BP variability, nocturnal fall, morning surge, and white-coat phenomena – ideal for cardiology, hypertension clinics, and research settings.

Features

Two measurement modes:
- Auscultatory + Oscillometric (dual method)
- Purely Oscillometric
Silent/patient-friendly pump; cuff inflates only as much as required
Small dimensions and lightweight design for ambulatory comfort
24-hour or 48-hour recording capability
Up to four programmable measurement programs and patient-triggered additional readings
Compatible with SCHILLER analysis software for full report generation and guideline-based summary
Built to be motion-tolerant, reducing failed readings
Suitable for adult and paediatric use via algorithmic adjustment

Technical Specifications

Parameter	Specification
Recording Duration	24 or 48 hours
Measurement Methods	Auscultatory + Oscillometric OR Pure Oscillometric
Measurement Intervals	Programmable (e.g., 5–120 minutes)
Maximum Readings Storage	Up to ~200 readings in a 24-h period
Cuff Inflation Strategy	Dynamic inflation to ~30 mmHg above the previous systolic
Weight	~198 g (including batteries)
Dimensions	~101 × 69 × 28 mm
Validated Standards	BHS, ESH-IP, AAMI SP10, and others

Reviews

There are no reviews yet.

Be the first to review “BR-102 plus”

Quick Comparison

BR-102 plus remove ASPEL Stress ECG with Treadmill and Software remove Sonoscape P10 Ultrasound Machine remove ASPEL AsPEKT 712 Holter Monitor and Software remove Sonoscape S22 Ultrasound Machine remove Sonoscape E2 Ultrasound Machine remove

Name BR-102 plus remove ASPEL Stress ECG with Treadmill and Software remove Sonoscape P10 Ultrasound Machine remove ASPEL AsPEKT 712 Holter Monitor and Software remove Sonoscape S22 Ultrasound Machine remove Sonoscape E2 Ultrasound Machine remove


SKU SF1033560075-2 SF1033560012-7 SF1033560075-4 SF1033560012-3 SF1033560012-17

Rating

Price

~~$0.00~~

$6,542.00

$9,350.00

$1,991.00

$9,350.00

$5,500.00

Stock

Availability

Add to cart

Description

Shipped From Abroad The BR-102 plus is a compact ambulatory blood-pressure recorder, combining either dual-method measurements (auscultatory + oscillometric) or purely oscillometric mode. Designed for patient comfort, it features minimal inflation and high accuracy for 24- or 48-hour monitoring.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad It is a system with professional tool dedicated to exercise and resting ECG examination. Treadmill has 12 lead ECG modules. With ECG Analyzing Software. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The P10 color Doppler ultrasound system is a new generation product from SonoScape. It is designed to give high quality images, rich probe configurations, various clinical tools and automatic analysis software to provide you with comprehensive solutions for your growing demand for clinical applications. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The Holta Monitor allows quick analysis of ECG examination and detection, reviewing and editing capability in the qualitative assessment of VE, VT, Single SVE, PSVT, Pauses, Irregular Rhythm, VT, IVR, Brady - and Tachycardia, Couplets, ST-segment elevation and depression, Maximum, Minimum and averaged Heart Rates, artifacts Delivery & Availability: Typically 10 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad As SonoScape steps forward to add value and efficiency to ultrasound, the latest S22 was designed in a user-friendly platform to address current and future demanding needs. It represents an excellent mix in performance and price. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Sonoscape E2 portable ultrasound machine is a color Doppler ultrasound system that reaches beyond your expectations due to its compact and fashionable appearance. It fulfills GI, OB/GYN, Cardiac and POC applications to fit your routine scanning needs while its color mode will help you for more accurate and efficient diagnosis of lesions. E2 provides a wide range of applications to assist users with routine scanning. E2 provides automatic calculations to enhance your diagnostic confidence and save you time for patient communication. Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Designed for long-term or ambulatory blood-pressure monitoring (ABPM), the BR-102 plus records readings over 24 or 48 hours while patients continue daily activities. It offers two versions: one using both auscultatory and oscillometric methods (with oscillometric as backup) and a second version using only oscillometric measurement. Its mini-pump system inflates only as much as necessary, reducing noise and discomfort. The device pairs with analysis software for detailed profiling of BP variability, nocturnal fall, morning surge, and white-coat phenomena - ideal for cardiology, hypertension clinics, and research settings.

Features

Two measurement modes:
- Auscultatory + Oscillometric (dual method)
- Purely Oscillometric
Silent/patient-friendly pump; cuff inflates only as much as required
Small dimensions and lightweight design for ambulatory comfort
24-hour or 48-hour recording capability
Up to four programmable measurement programs and patient-triggered additional readings
Compatible with SCHILLER analysis software for full report generation and guideline-based summary
Built to be motion-tolerant, reducing failed readings
Suitable for adult and paediatric use via algorithmic adjustment

Technical Specifications

Parameter	Specification
Recording Duration	24 or 48 hours
Measurement Methods	Auscultatory + Oscillometric OR Pure Oscillometric
Measurement Intervals	Programmable (e.g., 5–120 minutes)
Maximum Readings Storage	Up to ~200 readings in a 24-h period
Cuff Inflation Strategy	Dynamic inflation to ~30 mmHg above the previous systolic
Weight	~198 g (including batteries)
Dimensions	~101 × 69 × 28 mm
Validated Standards	BHS, ESH-IP, AAMI SP10, and others

It is a system with professional tool dedicated to exercise and resting ECG examination. Treadmill has 12 lead ECG modules. With ECG Analyzing Software. Technical Specification:

Simultaneous registration and observation of ECG signal from all 12 leads on PC screen,
Automatic measurement of HR, ST level and slope,
Printing and archiving examination report which contains: patient's data, the full disclosure ECG of the whole recording, selected strips, average P-QRS-T complexes, table summary, load value, HR, ST level and slope,
RAMP protocol
PMHR control
Digital filtration of mains disturbances
Digital filtration of muscle origin disturbances
Resting examination: 12, 6 or 3-channel in manual or automatic mode
Automatic regulation of isoelectric line position in the middle of registration channel
Automatic elimination of isoelectric line migration

CardioTEST Software:

excellent quality of ECG waveforms thanks to the use of digital filters eliminating the swimming of the isoelectric line and disruption of muscle origin,
uninterrupted recording and presentation of 12-lead ECG signal, presentation of averaged P-QRS-T units with 12 leads along with the results of ST level and slope measurements,
automatic HR measurement, ST level and ST segment slope,

automatic control of cycloergometer and treadmill load,
archiving and printing of the research report,
automatic determination of measuring points with the possibility of manual correction,
automatic arrhythmia analysis,
presentation of parameters regarding: test phase, current load, stage time and total effort time,
monitored parameters: rhythm rate, MET, double product, blood pressure, level, ST segment slope and load,
real-time ECG printout,
preview of trends of all measured parameters during the test,
alarm system for monitored parameters and arrhythmia,
an option to automatically measure blood pressure,
archiving and printing a report enabling a reliable assessment of the study (such an report contains ECG, average P-QRS-T assemblies and a table with measurement results),
standard test protocols and the ability to define your own protocols also in RAMP mode,
preview the report on the screen before printing the report,
function of reanalysis of the performed test,
presentation of 3D trends illustrating ST segment changes.

Click Here To Download Catalogue

DETAILS B + Compound B + Compound utilizes several lines of sight for optimal contrast resolution, speckle reduction and border detection, with which P10 is ideal for superficial and abdominal imaging with better clarity and improved continuity of structures. μ-Scan The new generation μ-Scan imaging technology gives you better image quality by reducing noise, improving signal strength and improving visualization. P10 offers a comprehensive selection of electronic probes to maximize its capabilities to meet a wide range of applications including abdomen, pediatric, OB/GYN, cardiovascular, musculoskeletal, etc. The advanced probe technologies also effectively enhance the image quality and confidence in reaching clinical diagnoses, even in difficult patients. Convex Probe 3C-A Ideal for an abundant of application such as abdomen, gynecology, obstetrics, urology and even abdomen biopsy. Linear Probe L741 This linear probe is designed to satisfy vascular, breast, thyroid, and other small parts diagnosis, and its adjustable parameters could also present users a clear view of MSK and deep vessels. Phase Array Probe 3P-A For the purpose of adult and pediatric cardiology and emergency, the phase array probe provides elaborate presets for different exam modes, even for difficult patients. Intracavitary Probe 6V1 Intracavitary probe could face application of gynecology, urology, prostate, and its temperature detection technology not only protects the patient but also extends the service life.

Click Here To Download Catalogue

The Holter Monitor allows quick analysis of ECG examination (arrhythmias and ST segment). Technical specifications: HolCARD 24W Software:

fully compatible with Microsoft Windows environment
unbeatable tool for alternative placement of electrodes
independent analysis of the ST segment in all recorded channels, the positioning of all measurement points is user-reconfigurable and may depend on heart rate
simultaneous arrhythmia detection in all three channels
automatic signal calibration independent in all channels assures the use of all dynamic range available
detection, reviewing and editing capability in the qualitative assessment of VE, VT, Single SVE, PSVT, Pauses, Irregular Rhythm, VT, IVR, Brady - and Tachycardia, Couplets, ST-segment elevation and depression, Maximum, Minimum and averaged Heart Rates, artifacts
validation tool for beat classification making the correction easy and effective
tabular hourly summaries all quantitative results
printing of all recorded ECG signal available

AsPEKT 712 Recorder:

12-channel digital registration of the ECG signal
10-lead patient cable
registration time: 48 hours or 7 days on SD card
built-in the real time clock
EVENT button
pacemaker detection
dimensions: 72x76x23 mm

Click Here To Download Catalogue

DETAILS As SonoScape steps forward to add value and efficiency to ultrasound, the latest S22 was designed in a user-friendly platform to address current and future demanding needs. It represents an excellent mix in performance and price. S22, is a shared service ultrasound system with a slim and elegant package that has combined mobility with utility to fit in specific clinical situations including emergency department, ICU, operating room and so on. Furthermore, its ergonomic design, easy operating and flexible data management will give you a memorable experience. SPECIFICATION • Large high-resolution widescreen LED • Sensitive touch screen • Four transducer sockets plus one socket for pencil probe • A comprehensive selection of probes: linear, Convex, Micro-convex, Volumetric, Endocavity, Bi-plane, Phased Array, TEE, Intraoperative, Pencil • Premium application technology: 4D, μ-scan speckle reduction, compound imaging, Pulse Inversion Harmonic Imaging, Color M-Mode, Steer M-Mode, PDI, TDI, Real-time Panoramic Imaging, Trapezoid Imaging, Auto-IMT… • Full patient database and image management solutions: DICOM 3.0, AVI/JPG, USB 2.0, HDD, DVD, PDF report • Multi-Language Input Keyboard • Built-in battery

Click Here To Download Catalogue

SONOSCAPE E2 DETAILS Auto Image Optimization A portable ultrasound machine with the press of a button, the image is automatically adjusted and optimized, saving you time with parameter adjustments. Additionally, with Auto Focus on, the focus area follows the depth of the ROI box as it is moved in the scanning field, providing users with excellent image quality in the desired area of interest. Automated Calculation Auto IMT is used when determining the level of vascular sclerosis present in the patient by automatically tracing the thickness of the carotid vessels. Auto trace provides users sensitive and accurate wave tracing, avoiding the error of manual trace and giving out calculation result in no time In-Build Battery pack This portable ultrasound machine was equipped with an in-build battery pack which enable the user to perform image scanning when AC power is not available.
