New

Riester_ri-focus_LED_battery_01_web-removebg-preview (1)

ENT / Examination

clar N Head Mirror

Brands: Riester

~~$0.00~~

Shipped From Abroad

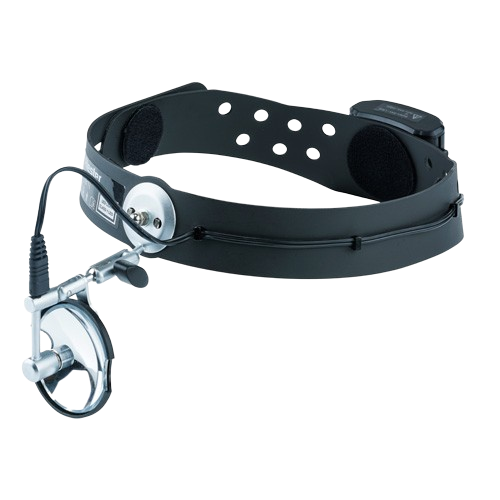

clar N is a wireless high-performance head mirror with a built-in battery compartment with LED lighting or a 6 V vacuum lamp. The headband is infinitely adjustable, offering a high level of wear comfort for practitioners without fatiguing operation even after long periods of use. The removable inner pad is washable for comfortable insertion and removal. The headband with integrated battery compartment can be ordered either for lithium CR123A lithium batteries, AAA alkaline batteries (non-rechargeable) or AAA NiMH rechargeable batteries with plug-in charger 230 V/120 V.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Riester

Description
Reviews (0)

Description

clar N is a wireless high-performance head mirror built-in battery compartment with LED lighting or a 6 V vacuum lamp. The headband is infinitely adjustable, offering a high level of wear comfort for practitioners without fatiguing operation even after long periods of use. The removable inner pad is washable for comfortable insertion and removal. The headband with integrated battery compartment can be ordered either for lithium CR123A lithium batteries, AAA alkaline batteries (non-rechargeable), or AAA NiMH rechargeable batteries with plug-in charger 230 V/120 V.

The clar N head mirror provides an extremely bright and cold examination light, whether equipped with LED or the $6\text{ V}$ vacuum lamp option. The wireless design, combined with an adjustable and comfortable headband, ensures practitioners can use it for long periods without fatigue. The mirror and light are adjustable with one-hand operation.

Providing bright and cold examination light

The mirror provides in combination with LED lighting, provides an extremely bright and cold light, significantly less energy consumption, and heat generation. The lifespan of the LED is set at 50,000 hours.

Features and benefits

One-hand operation

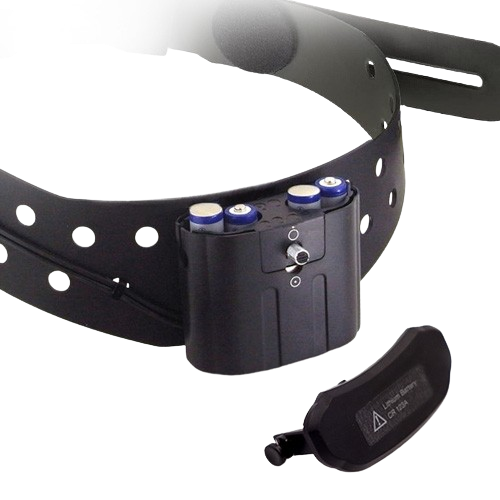

Built-in battery compartment and integral charge jack, optionally fitted with 2 x CR123A lithium batteries, 4 x AAA alkaline batteries (non-rechargeable) or 4 x AAA NiMH rechargeable batteries.
Wireless and balanced headband, cleaning made easy by inner, removable and washable padding.
Adjustable lamp holder on the mirror to focus the circle of light.
Particularly comfortable with a balanced, infinitely adjustable headband.
Mirror Ø 55 mm, infinitely adjustable and fixable.
ON/OFF switch on the battery compartment.
Battery operation:
- approx. 4 hrs. with CR123A lithium batteries (non-rechargeable)
- approx. 90 min. with AAA alkaline batteries (non-rechargeable)
- approx. 90 min. with fully charged AAA NiMH rechargeable batteries

Product details

clar N

Dimensions	Max. Headband diameter	approx. 200 mm
	Min. Headband diameter	approx. 160 mm
	Diameter mirror	50 mm
	Length of mirror arm	approx. 50 mm
Weight	without batteries	194 g
with CR123A lithium batteries (non-rechargeable)	225 g
with AAA NiMH rechargeable batteries	246 g
The lamp for clar N		4000 – 4200 Kelvin, CRI 95, 1 W
Light field	Distance	400 mm / 200 mm
Lux max. LED	11,600 / 30,000
Lux max. Vacuum 6 V	4000 / 7300
Further details	Plug-in charging device	5.8 V, 0.25 A, 50/60 Hz
Ambient temperature	0 °C to 40 °C
Relative Humidity	30% to 70% non-condensing
Storage/ Transport Ambient temperature	-5 °C to 50 °C
Storage/ Transport relative Humidity	10% to 85% non-condensing

Download Medical Lighting Set Brochure EN
