New

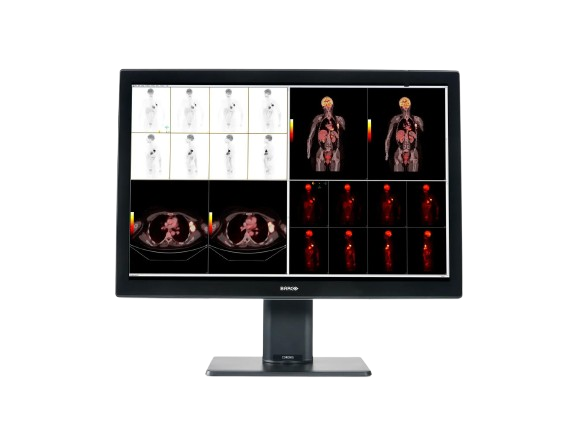

Coronis Fusion 6MP (MDCC‑6530)

$0.00

Shipped From Abroad

The Barco Coronis Fusion 6MP (MDCC-6530) is a high-performance medical display with 6-megapixel resolution, designed for diagnostic imaging across mammography, CT, MRI, and multi-modality tasks. Featuring IPS panel, image-enhancement tools, and QA system support, it enables precision and clarity in clinical workflows.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Barco-Health

Description

The Coronis Fusion 6MP (MDCC-6530) by Barco is engineered for diagnostic radiology and breast imaging, offering a 30.4-inch IPS display with 6-megapixel native resolution. It supports accurate viewing of images such as mammograms, tomosynthesis, and general radiology with enhanced clarity. Featuring uniform luminance, rapid frame support, integrated QAWeb calibration, ambient light adaptation, and multi-modality compatibility, it assists clinicians in consistent, high-quality reading across imaging tasks. The display balances resolution, brightness, and workflow tools for efficient diagnostics and patient care.

Features
  • IPS screen technology for wide viewing angles

  • 6MP native resolution (3280 × 2048 pixels)

  • Active screen size: 30.4″ diagonal, with active dimensions ~654 × 409 mm

  • Uniform luminance correction and image consistency

  • RapidFrame support for smooth cine/3D motion imaging

  • Ambient light presets and sensor support

  • Integrated QAWeb Enterprise system for automated calibration

  • Multi-modality use: mammography, CT, MRI, ultrasound, PACS display

  • Ergonomic stand and mounting support

  • A brighter diagnosis

Coronis Fusion, Barco’s renowned multi-modality display for radiologists, now comes in a new, energy-efficient, and lightweight design. Bright on so many levels, Coronis Fusion has been designed to help radiologists provide care with confidence.

See more details quickly thanks to the high brightness, high contrast ratio, and best-in-class image quality. What’s more, the wide color gamut in combination with SteadyColor™ calibration technology helps you see even more colors and more details on the 30-inch screen.

  • Smart workflow

Designed for your comfort and to boost productivity, Coronis Fusion comes with smart image-enhancing features and workflow tools. The display’s wide viewing angle, combined with the SoftGlow™ task and wall light help reduce eye strain. Thanks to SpotView, radiologists can further improve detection accuracy as well as reading productivity.

  • Effortless quality & compliance

Like all of Barco’s medical display systems, Coronis Fusion comes with QAWeb Enterprise, a cloud-based technology for automated calibration, Quality Assurance, and compliance to ensure maximum uptime of the display with no need for human intervention.

  • A one-stop-shop solution

Barco medical display systems include exclusive display controllers that are validated with the latest workstations and with all major PACS applications. All components are under the full 5-year warranty (including the display backlight) for complete peace of mind.

  • Ensuring diagnostic confidence with MDR Class IIa

Our radiology displays are MDR-certified as Class IIa. Their product information has been reviewed and cleared by independent medical and technical experts, and is audited yearly. In other words, we ensure diagnostic confidence and peace of mind for our users.

Specifications
Category Specification
Screen Technology IPS
Active Screen Size (Diagonal) 772 mm (30.4″)
Active Screen Size (H × V) 654 × 409 mm (25.8″ × 16.1″)
Aspect Ratio 16:10
Resolution Native 6MP (3280 × 2048 pixels); Configurable to 2 × 3MP+ (1640 × 2048); 2 × 3MP (1536 × 2048)
Pixel Pitch 0.1995 mm
Color Imaging / Gray Imaging Yes / Yes
Bit Depth 30-bit
Viewing Angle (H/V) 178°
Uniformity Correction Color PPU
SteadyColor Yes (with Barco Display Controller and QAWeb Enterprise 2.2+)
Ambient Light Presets / Sensor Yes / Yes
Front Sensor Yes (I-Guard)
Maximum Luminance (Typical) 1050 cd/m²
DICOM Calibrated Luminance 600 cd/m²
Contrast Ratio 2000:1
Response Time 18 ms
Housing Color Black / White
Video Input Signals 2 × DisplayPort 1.2
Video Output Signals 1 × DisplayPort (MST)
USB Ports 1 × USB 2.0 upstream; 2 × USB 2.0 downstream; 1 × USB 2.0 downstream with high-power charging
Power Rating 100–240 Vac, 50/60 Hz, 3.6–1.6 A
Power Consumption 80 W (nominal @ 600 cd/m²); <0.5 W (hibernate/standby)
Dimensions with Stand (W × H × D) 714 × 524~624 × 240 mm
Dimensions without Stand (W × H × D) 714 × 478 × 74 mm
Dimensions Packaged (W × H × D) 800 × 650 × 295 mm
Net Weight with Stand MDCC-6530: 17.7 kg; MDCC-6530 NC: 16.3 kg
Net Weight without Stand MDCC-6530: 13.1 kg; MDCC-6530 NC: 11.7 kg
Net Weight Packaged MDCC-6530: 22.3 kg; MDCC-6530 NC: 20.9 kg
Tilt / Swivel / Pivot -5° to +25° / ±30° / N/A
Height Adjustment Range 100 mm
Mounting Standard VESA (100 mm)
Screen Protection MDCC-6530: Protective, anti-reflective glass; MDCC-6530 NC: No glass cover
Recommended Modalities All digital images except digital mammography
Certifications FDA 510(k) K191845, CE0123, CCC, INMETRO, KC, BIS, EAC
Safety Standards IEC/EN/UL/CSA 60950-1, 62368-1, 60601-1, AAMI ES 60601-1
EMI Standards IEC/EN 60601-1-2, FCC Part 15 Class B, ICES-001 Level B, VCCI
Environmental Compliance EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive
Supplied Accessories User guide, Documentation disc, System sheet, Video cables, Mains cables, USB cable
Optional Accessories Graphics board, Touch pad, QA software (QAWeb)
Warranty 5 years (includes 40,000 hrs backlight warranty)
Operating Temperature 0–35°C (specs: 10–30°C)
Storage Temperature -20–60°C
Operating Humidity 20–85% RH (non-condensing)
Storage Humidity 20–85% RH (non-condensing)
Operating Pressure ≥70 kPa
Storage Pressure 50–106 kPa





Reviews

There are no reviews yet.

Be the first to review “Coronis Fusion 6MP (MDCC‑6530)”

Your email address will not be published. Required fields are marked *

Quick Comparison

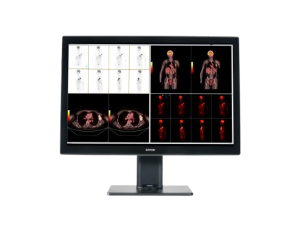

Coronis Fusion 6MP (MDCC‑6530) removeSonoscape P15 Ultrasound Machine With Four Probes removeSonoscape E1 Ultrasound Machine With Two Probes removeSonoscape S22 Ultrasound Machine removeDrGem Ceiling Mounted Digital X-ray removeAnke MRI Openmark 5000 Permanent System remove
