New

Coronis OneLook (MDMC‑32133)

$0.00

Shipped From Abroad

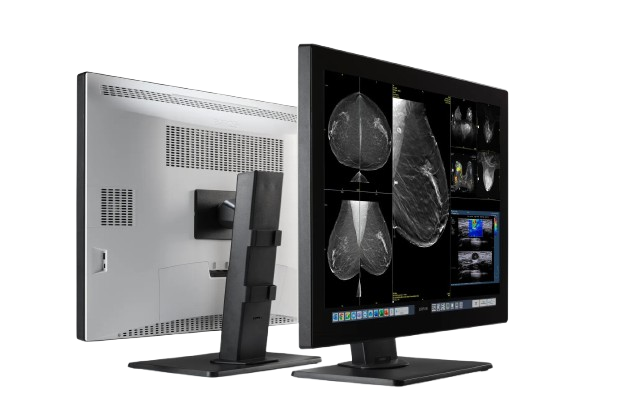

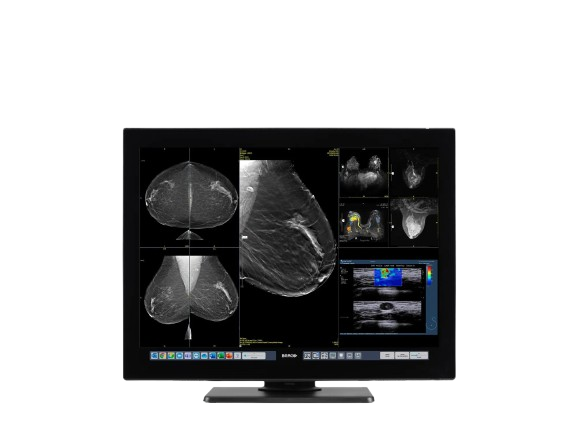

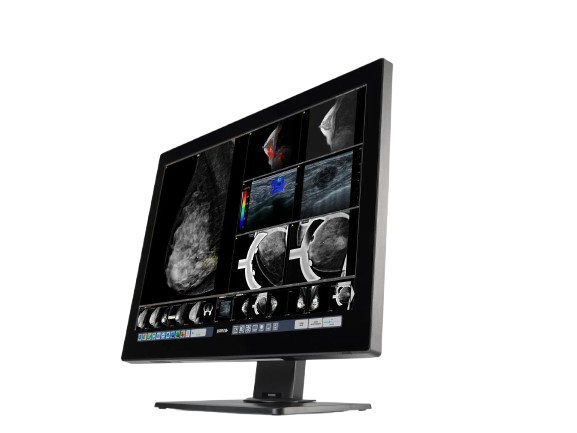

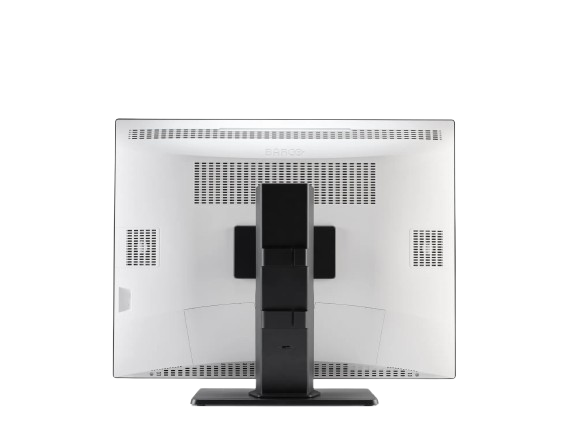

The Barco Coronis OneLook (MDMC-32133) is a 32MP diagnostic display designed for mammography and advanced radiology. It delivers superior resolution, high luminance, precise grayscale and color imaging, with optimized workflow tools for breast imaging, MRI, CT, and ultrasound.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Barco-Health

Description

The Coronis OneLook (MDMC-32133) is Barco’s flagship display solution, optimized for mammography and advanced radiology visualization. With its 32 MP panel and high luminance, it allows radiologists to view full-resolution mammograms without zooming or panning. Equipped with Barco’s RapidFrame technology to support crisp motion in 3D cine imaging, it also features an expanded, calibrated color range and modular custom on-screen shortcuts. Integrated with QAWeb for quality assurance and compliance, the display is built to elevate accuracy, productivity, and image fidelity in diagnostic workflows.

Highest resolution ever in breast imaging

Meet the Coronis OneLook® display solution, brought to you by the team behind the world-class Coronis Uniti. From supporting orthopedics to finding tiny breast calcifications: Coronis OneLook is Barco’s paragon, coming after decades of research and development – your perfect radiology assistant, which will serve for years to come.

Coronis OneLook gives you more detail than you’ve ever imagined: it boasts the highest number of image lines and pixels we have ever achieved. All this, combined with crisp, consistent grayscales and colors and new productivity tools, is true to the Barco range.

Key Features
  • See complete images at a look

    Straight from the acquisition machine, every detail is present without you needing to zoom in and pan in steps. An industry first!



  • Crystal-clear moving images

    Optimized for 3D cine examinations of CT, ultrasound, and breast MRI, Coronis OneLook is equipped with RapidFrame for crisp and in-focus moving images. This Barco-patented technology can lead to a 10% higher detection of small details in moving images.



  • Large screen surface

    Coronis OneLook’s large 33” screen allows you to layout multiple medical images on the screen at the same time. This format, called Fusion, has been proven to improve productivity by 19%.

Display Specifications

Category Details
Screen Technology IPS
Active Screen Size (Diagonal) 850 mm (33″)
Active Screen Size (H × V) 708 mm × 472 mm (28″ × 19″)
Aspect Ratio 3:2
Resolution 32MP (6848 × 4656 @ 60 Hz) with touchbar
Active Area 6848 × 4560 pixels @ 60 Hz (without touchbar)
Pixel Pitch 0.103 mm
Color Imaging / Gray Imaging Yes / Yes
Bit Depth 10-bit per R, G, B (with Barco Display Controller)
Viewing Angle 178° (H/V)
Uniformity Correction PPU
SteadyGray / SteadyColor Yes / Yes (with Barco Controller, IWT & QAWeb)
Color Gamut 117% NTSC, 140% sRGB (CIE 1931), 135% sRGB (CIE 1976), 107% DCI-P3
RapidFrame / I-Luminate Yes / Yes
Ambient Light Presets / Sensor Yes / Yes
Front Sensor Yes (I-Guard)
Max Luminance (Typical) 2300 cd/m² (PPU on, ClearBase)
DICOM Calibrated Luminance 1200 cd/m²
Contrast Ratio 1300:1
Response Time 9.05 ms (typical), 5.9 ms avg. gray-to-gray with RapidFrame
Housing Color Black (RAL 9005) / White (RAL 9003)
Connectivity & Ports
Category Details
Video Inputs 4× DisplayPort 1.4 (2 active: DP1, DP2; 2 reserved: DP3, DP4)
Side USB Ports 1× USB-C, 1× USB 3.0 Type A
Cable Compartment USB Ports 2× USB 3.0 Type B upstream (1 active), 1× USB 2.0 Type A downstream, 2× USB 3.0 Type A downstream
Power & Environmental
Category Details
Power Rating 5V/2A, 24V/7A, 48V/8A
Power Requirements Adapter Tech CDM970A2-P480 (Medical Grade)
Adapter Input 100–240V AC, 50–60 Hz, 16 A
Adapter Output 5V DC/2A, 24V DC/14A, 48V DC/13A
Power Consumption 230 W (nominal), <2.5 W (off)
Physical Dimensions & Mounting
Category Details
With Stand (W × H × D) 795 × 639 × 242 mm (lowest), 795 × 739 × 242 mm (highest)
Without Stand 795 × 604 × 93 mm
Packaged 972 × 741 × 390 mm
Weight 28 kg (with stand), 19 kg (without), 33–37 kg (packaged)
Tilt / Swivel / Pivot -5° to +24° / ±30° / N/A
Height Adjustment 100 mm
Mounting Standard VESA 200 × 100
Screen Protection / Optical Glass Yes / Yes
Medical & Imaging Use
Category Details
Recommended Modalities All digital images, especially breast tomosynthesis, breast MRI, breast US, CT, vascular & gynecological US
Certifications CE0123, FDA 510(k) K242008, CCC, KC, INMETRO (Pending), BIS (Pending), EAC (Pending)
Safety & Compliance
Category Details
Safety Standards IEC/EN/UL/CSA 62368-1, IEC/EN/ANSI/AAMI/CSA 60601-1
EMI Standards IEC/EN 60601-1-2, FCC Part 15 Class B, ICES-001 Level B, VCCI (Pending)
Environmental Compliance EU RoHS, China RoHS, REACH, WEEE, Packaging Directive, China Energy Label (Pending)
Accessories
Category Details
Supplied Accessories Power supply, 2× DP cables, USB cable, User Guide, Quick Start Guide, Documentation CD, Mains cable
Optional Accessories Display controller, Touch pad, QA software (QAWeb Enterprise)
Operating Conditions
Category Details
Operating Temp / Humidity / Pressure 0–35°C (specs: 20–30°C), 20–80% RH (non-condensing), ≥62 kPa
Storage Temp / Humidity / Pressure -20–60°C, 20–80% RH (non-condensing), 50–106 kPa
