e-scope Pocket Ophthalmoscope

Brands: Riester

~~$0.00~~

Shipped From Abroad

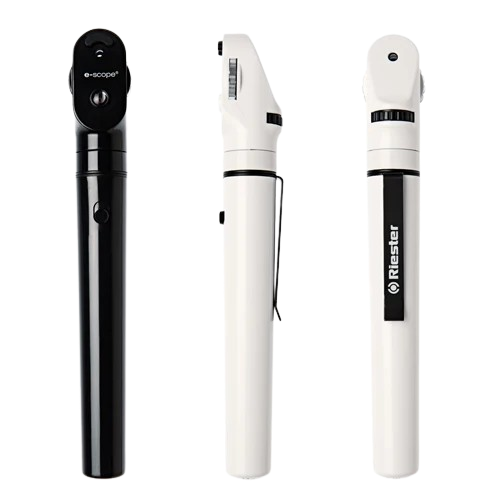

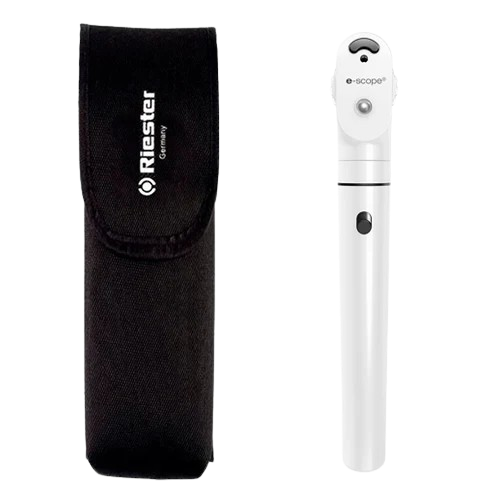

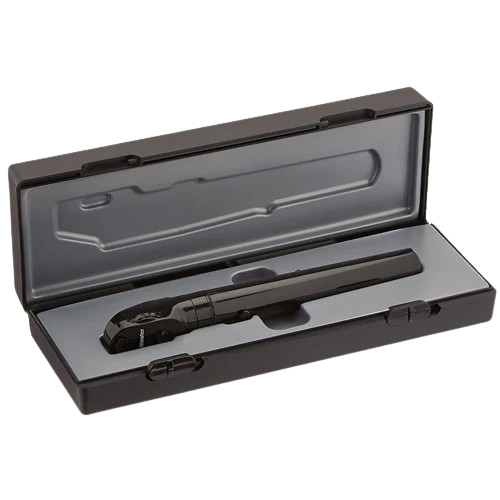

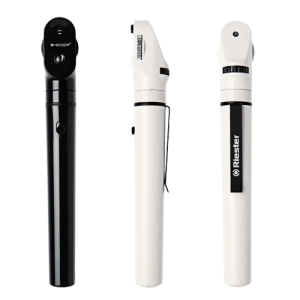

The e-scope® pocket ophthalmoscope is lightweight, economical, and has a perfect size and weight for you to carry in your pocket all day. The ophthalmoscope has AA size handles for use with alkaline batteries (sold separately), a pen clip to easily keep it in place, and LED or Xenon illumination. The instrument comes in a hook and loop closure case or in an impact-resistant case. Riester’s ophthalmoscopes utilize a Dioptre disc with 18 corrective lenses (+/- 1, 2, 3, 4, 6, 8, 10, 15, 20 dioptres) as well as an easy-to-use aperture wheel with six different apertures (fixation star, large circle, small circle, red free filter, blue filter, semi circle).

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Riester

Description
Reviews (0)

Description

e-scope pocket ophthalmoscope details

3.7 V LED or 2.5 V xenon illumination
Dioptre display
Dioptre adjustment wheel
Aperture wheel
Spectacle protection
Dust-protected casing
On/Off switch
Battery compartment and ABS synthetic material casing

Features and benefits of e-scope® ophthalmoscope

Pocket-sized ophthalmoscope with a pen clip
Dioptre disc with 18 corrective lenses (+/- 1, 2, 3, 4, 6, 8, 10, 15, 20 dioptres)
Easy-to-use aperture wheel with six different apertures (fixation star, large circle, small circle, red free filter, blue filter, semi circle)
High-performance optics with an aspherical condenser lens
Spectacle protection
Parallel optical path
Dust-protected
Runs on 2 AA batteries (sold separately)
Innovative 3.7 V LED illumination or 2.5 V Xenon illumination

Product Specifications

Dimension
The lamp for e-scope® ophthalmoscope	XL 2.5 V, 750 mA, mean life span 16.5 h LED 3.7 V, 38 mA, mean life span 20,000 h
Battery	2 Alkaline AA 1.5 V batteries.
Ambient temperature:	0 °C to 40 °C
Relative Humidity:	30% to 70% noncondensing
Storage/ Transport Ambient temperature:	-10 °C to 55 °C
Storage/ Transport relative Humidity:	10% to 95% noncondensing
