Medical Equipment

Eonis 21″ (MDRC‑2421)

Brands: Barco-Health

~~$0.00~~

Shipped From Abroad

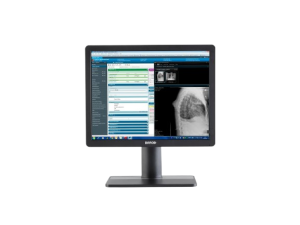

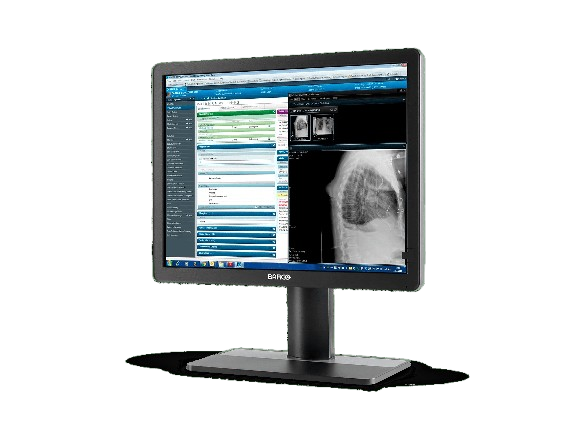

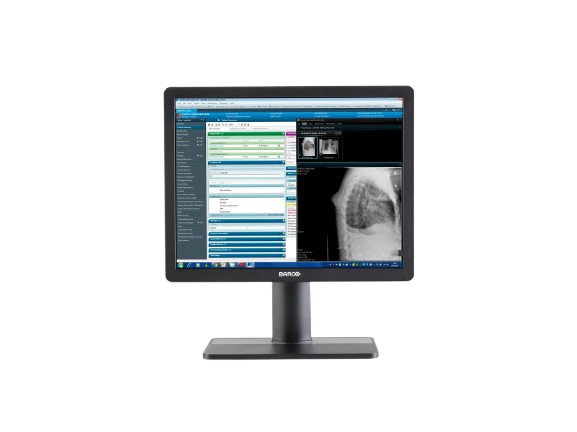

The Barco MDRC-2421 is a 21.3″ clinical review display with calibrated color and grayscale imaging, consistency sensor, ergonomic controls, and QAWeb compatibility — built for reliable, standardized image viewing in medical settings.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Barco-Health

Description
Reviews (0)

Description

The MDRC-2421 (Eonis 21″) is a medical-grade monitor optimized for clinical review and general image display workflows. It delivers 1600 × 1200 (2MP) resolution in a 4:3 format and supports both color and DICOM-calibrated grayscale imaging. A built-in front consistency sensor aligns luminance and uniformity at start-up. Integration with QAWeb enables centralized calibration and quality assurance across devices. With LED backlighting, ergonomic stand adjustments, and multiple video inputs (DisplayPort, DVI, HDMI), it is ideal for PACS review stations, EMR terminals, and clinical consultation displays.

The Eonis 21” brings reliable, DICOM-compliant images to a broad palette of imaging applications, including EMR. It combines consistent image quality and an attractive, versatile design with effortless quality assurance.

Easy collaboration with consistent images

Result? Consistent images that make collaboration between specialists easier. Discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.

Automated quality assurance

Eonis 21” comes with the cloud-based QAWeb Enterprise software, an online service for automated calibration, quality assurance, and asset management.

Praised in hospitals around the world, QAWeb Enterprise allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.

Fit for clinical review

Like every Barco clinical review display, the Eonis 21” complies with international medical and patient safety standards.

Variants

MDRC-2421 (Option SNIB): standard brightness, no cover, no touchscreen, internal power supply, black housing

A ecolabel for Eonis 21”

The Eonis 21” has been subjected to Barco’s ecoscoring protocol and has received an A rating. Some key factors that contributed to this rating are:

Energy efficient when in active use
Automatic standby mode when the device is not in use
100% halogen-free PCBs, cables, and plastics
Packaging optimized for a standard pallet & for sea freight
Less than 3 tools needed for disassembly, & PCBAs are not potted

Key Features

21.3″ panel with 1600 × 1200 resolution
Dual-mode: color + DICOM grayscale imaging
Front consistency sensor for automatic luminance uniformity
QAWeb integration for enterprise calibration/asset management
LED backlight for stable brightness
Ergonomic stand: tilt, pivot, height adjust
Multiple interfaces: DisplayPort, DVI-I, HDMI
Compact design and medical-grade housing
VESA mounting support

Technical Specifications

Specification	Detail
Native Resolution	1600 × 1200 (2MP)
Screen Size (Diagonal)	21.3″
Aspect Ratio	4:3
Pixel Pitch	~0.27 mm
Brightness (Typical)	300–330 cd/m²
Contrast Ratio	~1000:1
Viewing Angle	178° horizontal/vertical
Panel / Backlight	LED-backlit LCD
Video Inputs	DisplayPort, DVI-I, HDMI
Power Consumption	~20 W (typical)
Stand Adjustments	Tilt, height, pivot
Mounting	VESA 100 × 100 mm
Certifications	Medical device safety and imaging standards (e.g., IEC 60601-1)
