Medical Equipment

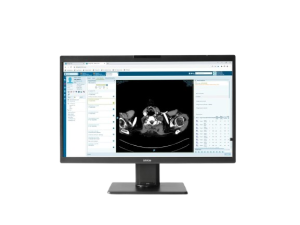

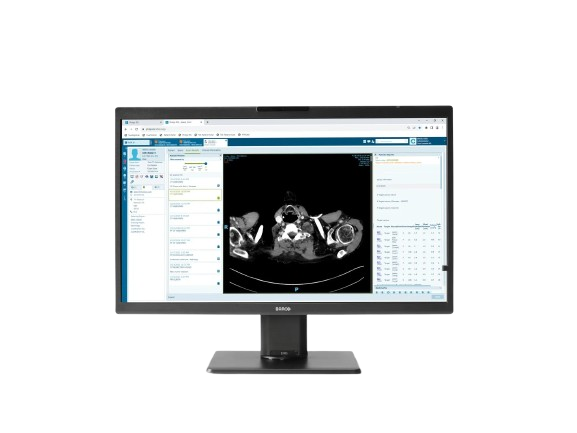

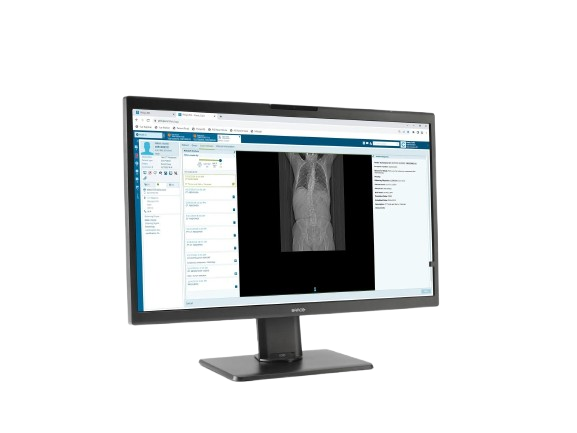

Eonis Color 8MP (MDRC‑8132)

Brands: Barco-Health

~~$0.00~~

Shipped From Abroad

The Barco Eonis Color 8MP is a 32″ clinical review display offering extremely high resolution, built-in front sensor for consistent image quality, pathology mode, KVM, and remote QA management – ideal for advanced imaging and consultation workflows.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Barco-Health

Description
Reviews (0)

Description

Eonis 8MP is a 32″ display built with healthcare specialists in mind. It combines consistent, high image quality and an attractive, versatile design with centralized quality assurance. It also includes built-in multimedia functionalities for easy virtual collaboration.

High image quality

Eonis 8MP offers you 8 megapixels of screen resolution, the highest in our Eonis range. This makes it an ideal choice for healthcare professionals seeking second opinions, emergency or trauma assessments, or referrals, which are not primary diagnoses. Moreover, the display incorporates an innovative front consistency sensor that seamlessly adjusts image quality whenever you power it on.

Additionally, Eonis 8MP has a pathology setting that triggers sRGB color calibration, resulting in excellent images with accurate color representation.

Virtual collaboration was never this easy

The Eonis 8MP extends its capabilities beyond its core functions by providing multimedia features. These streamline intra-hospital and virtual communication among healthcare practitioners, discussing a patient’s medical history, electronic medical records, and clinical images.

Built-in camera, microphone, and speakers
Consistent images and centralized quality assurance
KVM for seamless switching between workstations

These features promote effective communication across locations and clinical disciplines, making Eonis 8MP an excellent tool for teleconsultations with patients as well.

Centralized quality assurance

Eonis monitors are bundled with Barco’s cloud-based QAWeb Enterprise software, an online platform for automated calibration, quality assurance, and asset management. Praised in hospitals around the world, QAWeb Enterprise allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the touch of a button.

A+ ecolabel for Eonis Color 8MP

The Eonis Color 8MP has been subjected to Barco’s ecoscoring protocol and has received an A+ rating. Some key factors that contributed to this rating are:

Automatic standby mode when the device is not in use
Use of plastics containing 30% recycled content >50% halogen-free cables & >65% halogen-free PCBs
>90% recyclable packaging
Unpainted housing to make recycling easier

Key Features

32″ flat panel with 8MP resolution (3840 × 2160)
True color + grayscale imaging (30-bit)
Front Consistency Sensor ensures image stability
Pathology mode with sRGB calibration
Integrated multimedia: camera, microphone, speakers
KVM switching between workstations
Remote QA and calibration via QAWeb
High luminance panel (500 cd/m² typ)
DICOM-calibrated luminance at 300 cd/m²
Wide viewing angles (178°)
RapidFrame refresh technology
Ambient light presets and reading room modes
Ergonomic stand, height/tilt range
Medical safety and imaging certifications

Technical Specifications

Specification	Detail
Screen Technology	IPS panel
Diagonal Size	812.80 mm (32.0″)
Active Area (H × V)	708.48 × 398.52 mm
Aspect Ratio	16:9
Resolution	8MP (3840 × 2160 @ 60 Hz)
Pixel Pitch	0.1845 mm
Color & Gray Imaging	Yes
Bit Depth	30 bit (true color + grayscale)
Viewing Angle	178° horizontal / vertical
Max Luminance (Panel)	500 cd/m²
DICOM Calibrated Luminance	300 cd/m²
Contrast Ratio	1000:1 (typical)
Response Time (Tr + Tf / 2)	9.8 ms (typical)
Video Inputs	2 × DisplayPort 1.4
Video Output	1 × DisplayPort (MST)
USB	2 × USB-B upstream; 5 × USB-A downstream (1 charge port)
KVM	Yes
Power Supply	24 V DC, 8.3 A
Power Consumption	≈ 45.5 W (nominal); <0.35 W in hibernate/off
Dimensions with Stand	743 × (518 to 618) × 238 mm
Dimensions without Stand	743 × 459 × 63 mm
Net Weight	13 kg (with stand), 8.4 kg (without stand)
Tilt	–5° to +25°
Swivel	–30° to +30°
Height Adjustment	100 mm
Mounting	VESA 100 mm
Certifications & Compliance	Medical device safety standards (CE, FDA class I, IEC 60601-1, etc.)
