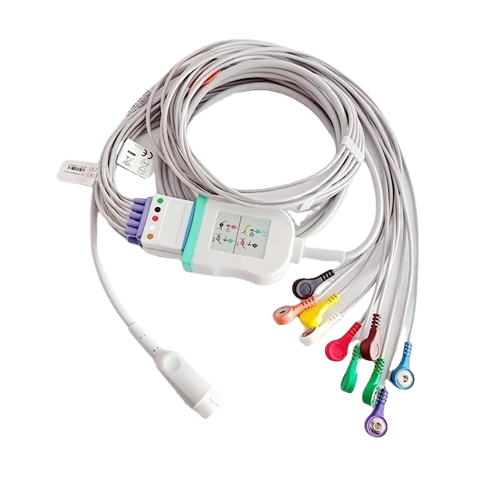

HeartStart MRx IntelliVue 12Pin 10 Lead EKG Trunk Cable

Features

• Compatibility: Designed for Philips HeartStart MRx and IntelliVue monitors.

• Connector: 12-pin round connector for seamless integration.

• Lead Configuration: 10-lead (5+5) setup with AHA/IEC color-coded labels.

• Cable Length: 3.2 meters for flexible patient monitoring.

• Construction: Shielded cable with durable TPU jacket for enhanced longevity.

• Certifications: CE and ISO13485 certified, ensuring compliance with medical standards..

• Latex-Free: Safe for patients with latex sensitivities.

• Use Case: Ideal for hospitals, clinics, and emergency medical services requiring reliable ECG monitoring.

• Cooperation with the CardioTEST cardiovascular exercise system and AsTER cardiac rehabilitation system,
• Control using a computer through the RS-232 port,
• Braking: a processor-controlled brake with torque measurement,
• Load range: 25 - 1000 W,
• Speed ​​range: 20 - 150 rpm,
• Load independent of the number of turns,
• Built-in ECG module,
• 12 standard leads in diagnostic mode,
• 2 leads in training mode,
• Sensitivity 2,5 / 5/10/20 mm / mV,
• Shift 25/50/100 mm / s,
• Digital filters 25 Hz, 35 Hz, 50 Hz, anti-frit filter,
• Digital filter of the isoelectric line,
• Measuring range HR 15-240 bpm,
• Maximum patient weight 200 kg,
• Power supply: 230 V, 50 Hz, 60VA,
• Dimensions: (LxWxH) 1190x600x1370 mm.

• excellent quality of ECG waveforms thanks to the use of digital filters eliminating the swimming of the isoelectric line and disruption of muscle origin,
• uninterrupted recording and presentation of 12-lead ECG signal,
• presentation of averaged P-QRS-T units with 12 leads along with the results of ST level and slope measurements,
• automatic HR measurement, ST level and ST segment slope,
• automatic control of cycloergometer and treadmill load,
• archiving and printing of the research report,
• automatic determination of measuring points with the possibility of manual correction,
• automatic arrhythmia analysis,
• presentation of parameters regarding: test phase, current load, stage time and total effort time,
• monitored parameters: rhythm rate, MET, double product, blood pressure, level, ST segment slope and load,
• real-time ECG printout,
• preview of trends of all measured parameters during the test,
• alarm system for monitored parameters and arrhythmia,
• an option to automatically measure blood pressure,
• archiving and printing a report enabling a reliable assessment of the study (such an report contains ECG, average P-QRS-T assemblies and a table with measurement results),
• standard test protocols and the ability to define your own protocols also in RAMP mode,
• preview the report on the screen before printing the report,
• function of reanalysis of the performed test,
• presentation of 3D trends illustrating ST segment changes.

Click Here To Download Catalogue

• • Comfortable Packaging
  • Singularly Tested and Packed
  • Always 100% accurate and hygienic
  • No Calibration required
  • No Sterilization required
  • No Antibacterial Filter required
  • No Cross Contamination
  • Not affected by Vapour Condensation
  • Not affected by Ambient conditions
  •  A full Spirometry session can be performed, including a Bronchial Challenge and POST Bronchodilator test. For each patient after the Spirometry test, both turbine and spirometer mouthpiece are thrown away

• .

• fully compatible with Microsoft Windows environment
• unbeatable tool for alternative placement of electrodes
• independent analysis of the ST segment in all recorded channels, the positioning of all measurement points is user-reconfigurable and may depend on heart rate
• simultaneous arrhythmia detection in all three channels
• automatic signal calibration independent in all channels assures the use of all dynamic range available
• detection, reviewing and editing capability in the qualitative assessment of VE, VT, Single SVE, PSVT, Pauses, Irregular Rhythm, VT, IVR, Brady - and Tachycardia, Couplets, ST-segment elevation and depression, Maximum, Minimum and averaged Heart Rates, artifacts
• validation tool for beat classification making the correction easy and effective
• tabular hourly summaries all quantitative results
• printing of all recorded ECG signal available

• 12-channel digital registration of the ECG signal
• 10-lead patient cable
• registration time: 48 hours or 7 days on SD card
• built-in the real time clock
• EVENT button
• pacemaker detection
• dimensions: 72x76x23 mm
