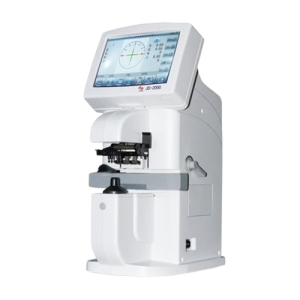

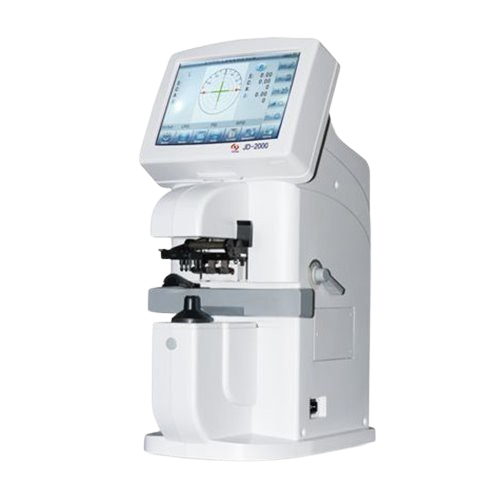

Lensmeter JD-2000B

Brands: zbxyoptics

~~$0.00~~

Shipped From Abroad

The JD-2000B Auto Lensmeter offers accurate and efficient lens measurements with automatic recognition for single, progressive, and contact lenses. Featuring a clear LCD display, compact design, and fast operation, it provides reliable results for optical professionals in clinics, laboratories, and optical shops.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: zbxyoptics

Description
Reviews (0)

Description

The JD-2000B Auto Lensmeter is designed to provide fast, accurate, and reliable measurements of eyeglass and contact lenses. Built with advanced optical technology, it ensures high precision in determining sphere, cylinder, axis, prism, and progressive lens parameters. Its user-friendly interface and clear LCD display allow optical professionals to operate with ease, ensuring efficiency in optical shops, clinics, and laboratories. The JD-2000B also supports automatic recognition of progressive and single-vision lenses, making it versatile for modern eye care practices. With a compact design and efficient measurement speed, it improves workflow and delivers consistent results for daily use.

Key Features

Automatic recognition of single vision, progressive, and contact lenses
High-precision sphere, cylinder, axis, and prism measurement
Fast response and reliable repeatability
Clear LCD display for easy data reading
Compact, ergonomic design for space-saving convenience
Suitable for optical shops, clinics, and labs

Technical Specifications

Range of measurement
Sphere	0~±25m^-1 0.01/0.12/0.25m^-1 step
Cylinder	0~±9.99m^-1 0.01/0.12/0.25m^-1 step
Axis	0°~180° (1°step)
Add.	0~+9.99m^-1 0.01/0.12/0.25m^-1 step
Prism degree	0~15m^-1 0.01/0.12/0.25m^-1 step
Measurement mode
Cylinder	+,+/-,-
Prism	X-Y,P-B
Contact lens	Soft/hard lens
Measuring mode	Single/progressive/ automatic recognition
Specifications
Diameter of lens	Φ20~Φ108mm
PD	40~90mm, 0.5mm step
Speed of measurement	0.1second
Display	7″LCD/TFT
Printer	Without printer
Dimension	196mm286mm442mm
Weight	~6kg
Power supply	100~240V 50~60Hz

Reviews

There are no reviews yet.

Be the first to review “Lensmeter JD-2000B”
