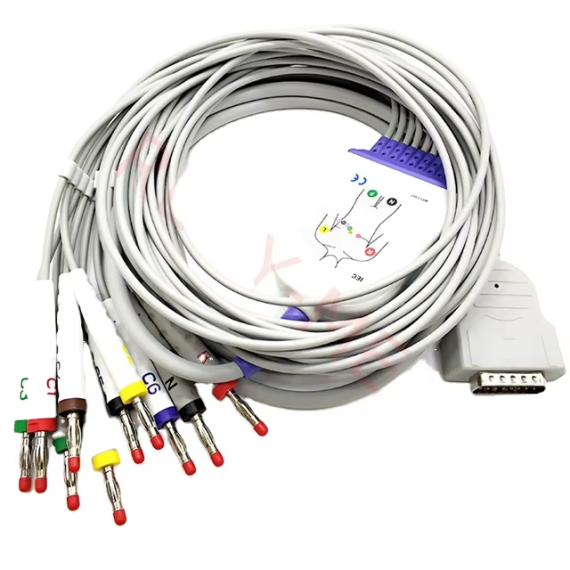

Medical Holter 10 Lead ECG Cables

Brands: Redy-Med

~~$0.00~~

Shipped From Abroad

The 10-lead Holter ECG cable is compatible with GE MAC-500 systems and designed for accurate, long-term cardiac monitoring. Built with durable, medical-grade materials and noise-reducing shielding, it offers secure snap or clip connectors for reliable signal quality in clinical or mobile diagnostic environments.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Redy-Med

Description
Reviews (0)

Description

The Medical Holter 10 Lead ECG Cable is specially designed for reliable and accurate performance with the GE MAC-500 ECG system. Engineered for Holter monitoring and standard EKG applications, this cable offers a precise 10-lead configuration with high-quality signal transmission. Built from durable, medical-grade materials, the cable ensures long-lasting use and minimal signal interference, making it ideal for hospitals, outpatient centers, and cardiac diagnostics. The snap or clip connectors provide secure patient electrode attachment and allow for fast, efficient setup. With superior shielding and biocompatible insulation, the cable supports patient safety and consistent data accuracy over extended monitoring periods. Its plug-and-play compatibility with GE MAC-500 enhances workflow efficiency while maintaining reliable heart signal tracking. This cost-effective replacement or backup cable is fully compliant with medical device standards and suited for high-volume usage in professional healthcare environments.

Features:

Designed for use with GE MAC-500 ECG monitors
10-lead configuration for Holter and routine ECG monitoring
Medical-grade TPU insulation and biocompatible materials
Snap or clip-style connectors for reliable electrode contact
Plug-and-play system compatibility
Reusable and easy to clean
Flexible and tangle-resistant cable
Excellent signal fidelity with low interference

Specifications:

Connector Type: GE MAC-500 compatible 10-pin connector
Lead Type: 10-lead configuration
Electrode Connection: Snap or Clip (model dependent)
Cable Length: 2.5 – 3.0 meters
Material: TPU outer jacket with shielded copper wires
Compatibility: GE MAC-500
Certifications: CE marked, ISO 13485 compliant
Use: Reusable, non-sterile
Packaging: Individually packed

Reviews

There are no reviews yet.

Be the first to review “Medical Holter 10 Lead ECG Cables”

Quick Comparison

Medical Holter 10 Lead ECG Cables remove ASPEL AsCARD Coral PC Based ECG Machine remove ASPEL AsCARD Green B/W ECG Machine remove ASPEL Stress ECG with Ergometer and Software remove Bistos BT- 720 Patient Monitor remove Bistos BT- 740 Patient Monitor remove

Name Medical Holter 10 Lead ECG Cables remove ASPEL AsCARD Coral PC Based ECG Machine remove ASPEL AsCARD Green B/W ECG Machine remove ASPEL Stress ECG with Ergometer and Software remove Bistos BT- 720 Patient Monitor remove Bistos BT- 740 Patient Monitor remove


SKU SF1033560075-11 SF1033560075-8 SF1033560075-1 SF1033560059-8 SF1033560059-9

Rating

Price

~~$0.00~~

$486.00

~~$0.00~~

$4,202.00

$330.00

$715.00

Stock

Availability

Add to cart

Description

Shipped From Abroad The 10-lead Holter ECG cable is compatible with GE MAC-500 systems and designed for accurate, long-term cardiac monitoring. Built with durable, medical-grade materials and noise-reducing shielding, it offers secure snap or clip connectors for reliable signal quality in clinical or mobile diagnostic environments.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad AsCARD Coral electrocardiograph is a 3-, 6-, 12-channel ECG equipped with CardioTEKA software allows transmission of full 12 ECG leads to the user PC through USB interface. It is intended for carrying out ECG examinations in adults and pediatric patients in all types of health care centres. ECG procedures can be performed by qualified personnel only. AsCARD Coral can cooperate also with CardioTEST system as 12-channel ECG device allows transmission of full 12 ECG leads to the user PC through USB interface. Delivery & Availability: Typically 10 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad AsCARD Green electrocardiograph is a 1- and 3-channel ECG unit which enables to make electrocardiogram in full 12 leads. Intended for ECG examinations of adult and paediatric patients aimed at identification of cardiological abnormalities, myocardial ischaemia or infarction. The device is intended for use in healthcare facilities by duly trained personnel. ECG examination may be recorded in manual or automatic mode with the ability to perform the analysis and interpretation. Delivery & Availability: Typically 10 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Ergometer CRG 200 is dedicated for Exercise Stress Tests System CardioTEST. The Ergometer has been designed according to modern technologies. It is controlled from PC equipped in CardioTEST software. Load level is controlled by a microprocessor, therefore it does not depend on speed, which in turn can be adjusted according to patient’s individual needs. Ergometer is equipped with ECG mode recording 12 standard leads. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from abroad Bistos BT - 720 Patient Monitor: Bistos Portable Patient Vital Signs Monitor, SpO2, Pulse, *NIBP, BT-720. The Bistos BT-720 is a compact size vital signs monitor with the standard parameters of SpO2 and Pulse. You can also add the NIBP and/or Masimo SpO2 at an additional cost. The BT-720 has a 4.3" color touch screen The PC software allows the vital signs information to be transferred and analyzed on a computer. Delivery & Availability: Typically 7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Delivery & Availability: Typically 7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Features:

Designed for use with GE MAC-500 ECG monitors
10-lead configuration for Holter and routine ECG monitoring
Medical-grade TPU insulation and biocompatible materials
Snap or clip-style connectors for reliable electrode contact
Plug-and-play system compatibility
Reusable and easy to clean
Flexible and tangle-resistant cable
Excellent signal fidelity with low interference

Specifications:

Connector Type: GE MAC-500 compatible 10-pin connector
Lead Type: 10-lead configuration
Electrode Connection: Snap or Clip (model dependent)
Cable Length: 2.5 – 3.0 meters
Material: TPU outer jacket with shielded copper wires
Compatibility: GE MAC-500
Certifications: CE marked, ISO 13485 compliant
Use: Reusable, non-sterile
Packaging: Individually packed

AsCARD Coral electrocardiograph is a 3-, 6-, 12-channel ECG equipped with CardioTEKA software allows transmission of full 12 ECG leads to the user PC through USB interface. It is intended for carrying out ECG examinations in adults and pediatric patients in all types of health care centres. ECG procedures can be performed by qualified personnel only. AsCARD Coral can cooperate also with CardioTEST system as 12-channel ECG device allows transmission of full 12 ECG leads to the user PC through USB interface. Technical Specification:

Number of electrodes: 10
ECG channels: 12
Sampling frequency: 1600 Hz
Transmitted ECG signal resolution: 12 bits
Transmission type: USB 1.1
ECG signal analysis: CardioTEKA Software

Click Here To Download Catalogue

AsCARD Green electrocardiograph is a 1- and 3-channel ECG unit which enables to make electrocardiogram in full 12 leads. Intended for ECG examinations of adult and paediatric patients aimed at identification of cardiological abnormalities, myocardial ischaemia or infarction. The device is intended for use in healthcare facilities by duly trained personnel. ECG examination may be recorded in manual or automatic mode with the ability to perform the analysis and interpretation. Electrocardiograph is based on advanced microprocessor technology. It is equipped with a thermal printer with high-resolution head and graphical LCD display. A hightech membrane keyboard makes the AsCARD Green device operation intuitive, and its menu navigation exceptionally easy. This light-weight, small-footprint and battery powered cause that device can be easily transported to any location. With plastic casing and foil covered keyboard, the device is neat and easy to clean. Technical Specifications:

dimensions: 220x153x55 mm (L x W x H)
weight: < 0,6 kg
recording of standard 12 ECG lead
saving the ECG signal simultaneously from all the 12 leads during the automatic recording, together with the date and time of the examination, filter settings, examination recording time and, optionally, patient's data, in the internal memory
printout of the automatic ECG recording from internal memory, in groups of three leads
printout of the analysis, interpretation of automatic ECG examination
display of 1, 3, 6 or 12 lead ECG recordings
printout of 1 or 3 lead ECG of selected group:
attaching the name of the patient to the ECG printout
ECG printout in 1- or 3-channel modes
membrane alphanumeric keyboard with functional keys
graphical menu displayed on the screen for easy operation using keyboard
automatic analysis and interpretation in compliance with EN 60601-2-25 (CSE database) - interpretation dependable on age & sex of a patient
memory of the last automatic examinations, with a limit from 5 to 1000
up to 130 automatic examinations in battery mode
continuous heart rate (HR) measurement and display
automatic detection of QRS complex
adapted to direct operation on an open heart
power line interference filter: 50 Hz, 60 Hz
muscle interference filter; filters available: 25 Hz, 35 Hz, 45 Hz
contour line filters; filters available: 0.15 Hz, 0.45 Hz, 0.75 Hz, 1.5 Hz
detection of electrode detachment, independent for each channel
selectable channel to detect heart rate
the thickness of the printing ECG waveforms line to choose from: normal or bold
presentation of the curves in the standard layout or Cabrera layout
multilingual menu
external USB communication port to connect a PC and the CardioTEKA software, for real-time transmission of ECG signal
acoustic signalling of detected beats
protection against defibrillation pulse
detection and presentation of stimulating pulses on printout
automatic examination with the printout of patient data and clinic data
battery power saving functions

Standard Equipment:

limb electrodes, 4 pieces
chest electrodes, 6 piece
KEKG-30R ECG cable
medical power connector, M12-15
RB1 paper 58 mm wide (1 roll)
ECG gel
operation manual

Click Here To Download Catalogue

Ergometer CRG 200 is dedicated for Exercise Stress Tests System CardioTEST. The Ergometer has been designed according to modern technologies. It is controlled from PC equipped in CardioTEST software. Load level is controlled by a microprocessor, therefore it does not depend on speed, which in turn can be adjusted according to patient’s individual needs. Ergometer is equipped with ECG mode recording 12 standard leads. Technical Specifications:

Cooperation with the CardioTEST cardiovascular exercise system and AsTER cardiac rehabilitation system,
Control using a computer through the RS-232 port,
Braking: a processor-controlled brake with torque measurement,
Load range: 25 - 1000 W,
Speed range: 20 - 150 rpm,
Load independent of the number of turns,
Built-in ECG module,
12 standard leads in diagnostic mode,
2 leads in training mode,
Sensitivity 2,5 / 5/10/20 mm / mV,
Shift 25/50/100 mm / s,
Digital filters 25 Hz, 35 Hz, 50 Hz, anti-frit filter,
Digital filter of the isoelectric line,
Measuring range HR 15-240 bpm,
Maximum patient weight 200 kg,
Power supply: 230 V, 50 Hz, 60VA,
Dimensions: (LxWxH) 1190x600x1370 mm.

CardioTEST Software:

excellent quality of ECG waveforms thanks to the use of digital filters eliminating the swimming of the isoelectric line and disruption of muscle origin,
uninterrupted recording and presentation of 12-lead ECG signal,
presentation of averaged P-QRS-T units with 12 leads along with the results of ST level and slope measurements,
automatic HR measurement, ST level and ST segment slope,
automatic control of cycloergometer and treadmill load,
archiving and printing of the research report,
automatic determination of measuring points with the possibility of manual correction,
automatic arrhythmia analysis,
presentation of parameters regarding: test phase, current load, stage time and total effort time,
monitored parameters: rhythm rate, MET, double product, blood pressure, level, ST segment slope and load,
real-time ECG printout,
preview of trends of all measured parameters during the test,
alarm system for monitored parameters and arrhythmia,
an option to automatically measure blood pressure,
archiving and printing a report enabling a reliable assessment of the study (such an report contains ECG, average P-QRS-T assemblies and a table with measurement results),
standard test protocols and the ability to define your own protocols also in RAMP mode,
preview the report on the screen before printing the report,
function of reanalysis of the performed test,
presentation of 3D trends illustrating ST segment changes.

Click Here To Download Catalogue

Bistos BT - 720 Patient Monitor: Bistos Portable Patient Vital Signs Monitor, SpO2, Pulse, *NIBP, BT-720. The Bistos BT-720 is a compact size vital signs monitor with the standard parameters of SpO2 and Pulse. You can also add the NIBP and/or Masimo SpO2 at an additional cost. The BT-720 has a 4.3" color touch screen The PC software allows the vital signs information to be transferred and analyzed on a computer. Features:

3" color touch screen
Standard Confirgurations: SpO2 and Pulse
Optioal NIBP and Masimo SpO2
Short/long trend graphic/trend table display
Audio and visual alarm, adjustable alarm limit
Automatic brightness adjustment
Accurate SpO2 reading during motion or low perfusion
Perfusion index data / bar graphic display
Pitch tone variation for pulse rate
Internal memory for data storage
SD card for easy software upgrade
Over 8 hours of operation with the re-chargeable li-ion battery
PC software for data review and analysis on a computer

Technical Specifications:

Model			BT-720
Display			4.3" Color LCD Touch Screen
SpO2	Measurement Range		0-100%
	Accuracy (70-100%)	Adult/Pediatric	+/- 2%
	Accuracy (70-100%)	Neonate	+/- 3%
	Accuracy (0-69%)		Unspecified
	Perfusion Index		0.05-20%
Pulse Rate	Range (bpm)		25-250
NIBP* (Optional)	Method		Automatic Oscillometric
	Operation Mode		Manual/Automatic/STAT
	Parameter		Systolic/Diastolic/Mean
	Systolic Range (mmHg)	Adult	40-270
		Pediatric	40-200
		Neonate	40-130
	Diastolic Range	Adult	100-210
		Pediatric	100-160
		Neonate	10-90
	Mean Range	Adult	20-230
		Pediatric	20-175
		Neonate	20-100
SpO2 Masimo* (Optional)			Masimo SpO2
Battery	Type (Capacity)		Li-ion (4400mAh)
	Run time		8 Hours
	Charging Time		8 Hours
Interface			RJ45, SD Card Slot
Warranty			2 Years

Click Here To Download Catalogue

Bistos BT - 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4" TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation. Features:

8.4" TFT Color Screen - (Optional Touch Screen Upgrade)
Standard parameters are ECG, Resp., SpO2, NIBP, Temp.
Ultra-low power consumption
Quiet operation
High accuracy SpO2 reading
Data transfer or firmware upgrade via USB
2 Years Manufacturer's Warranty

Technical Specifications:

Model		BT-740
Display		8.4" Color TFT Screen
ECG	Lead type	3/5 Lead
	Gain Selection	x0.25, x0.5, x1, x2, x4, auto
	Sweep speed (mm/s)	12.5, 25, 50
	Bandwith:(Diagnostic Mode)	0.05-130Hz
	Monitoring Mode	0.5-40Hz
	Surgery Mode	1-25Hz
	Strong Mode	5-20Hz
	Heart Rate Range (bpm)	Adult:15-300
	Heart Rate Range (bpm)	Pediatric/neonate: 15-350
Respiration	Method	Trance-thoracic Impedance
	Measurement Range	0-120rpm
	Sweep Speed (mm/s)	6.25, 12.5, 25
SpO2	Measurement Range	0-100%
	Accuracy (70-100%)	Adult/Pediatric	+/-2%
	Accuracy (70-100%)	Neonate	+/-3%
	Accuracy (0-69%)	Unspecified
	Perfusion Index	0.05-20%
Pulse Rate	Range (bpm)	25-250bpm
NIBP**	Method	Automatic (Oscillometric)
	Operation Mode	Manual/Auto/STAT
	Parameter	Systolic, Diastolic, Mean
	Systolic Range (mmHg)	Adult	40-270
		Pediatric	40-200
		Neonate	40-130
	Diastolic Range (mmHg)	Adult	10-210
		Pediatric	10-160
		Neonate	10-90
	Mean Range (mmHg)	Adult	20-230
		Pediatric	20-175
		Neonate	20-100
Temperature	Range	0-50°C
Temperature	Parameter	T1, T2 and TD
IBP"	Channel	2 Channel, 4 Channel
IBP"	Range (mmHg)	-50-400
Printer*	Type	Thermal dot array
	Print Speed (mm/s)	12.5, 25, 50
	Paper Size (mm)	50
CO2*	Sidestream	Masimo ISA / Bistos
CO2*	Mainstream	Masimo IRMA / Bistos
Multi-gas O2*		Masimo ISA
SpO2 Masimo*		Masimo SpO2
CO*	Method	Thermodilution
CO*	Range	0.2-20 L/min
Battery	Type (Capacity)	Li-ion (440mAh)
	Run Time	6 hour
	Charging Time	4 hour
Interface		RJ45, USB, Nursing Call
Warranty		2 Years
