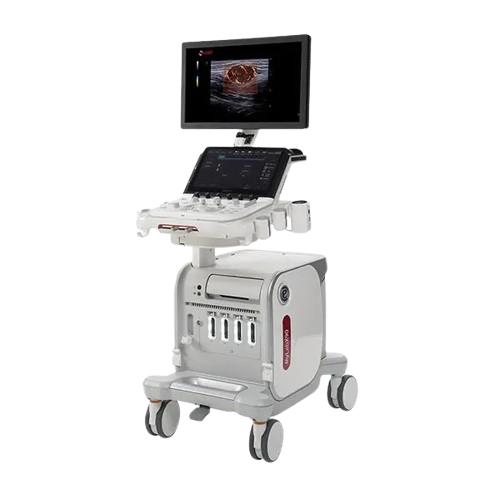

MyLab X90 Ulytrasound System

MyLab X90 is Esaote’s top-tier ultrasound system engineered for advanced clinical needs and streamlined workflows. It integrates AI-driven tools for automatic lesion contouring, fetal biometry, cardiac strain evaluation, and fusion imaging. Using XCrystal transducer technology and ClearWave architecture, it offers enhanced sensitivity and penetration, producing crisp, uniform images in both shallow and deep areas. The system includes a large high-dynamic-range eLED monitor, ergonomic design features such as a touch screen interface, ambient light adaptation, and support for a wide range of probes.

Features

• Augmented Insight suite for AI assistance (measurements, lesion analysis, fusion imaging)

• XCrystal transducer technology for improved penetration and resolution

• ClearWave architecture combining advanced beamforming and post-processing

• eLED high dynamic range monitor for vivid colors, contrast, and viewing stability

• Touchscreen and gesture controls for intuitive workflow

• Opti-Light ambient light sensor and lighting for scanning room comfort

• Wide variety of probe types (convex, linear, phased array, microconvex, etc.) covering many clinical applications

• Ergonomic workstation design: probe holders, gel warmer, adjustable monitor arm

Technical Specifications

• Monitor: ~ 23.8-inch Full HD high dynamic range, dual-layer LCD

• Probe compatibility: multiple transducer types, high-frequency probes up to ~ 25 MHz for superficial imaging

• Imaging modes: includes 2D, 3D/4D, Doppler (Colour, Power, Pulse-Wave), Elastography (strain and shear-wave), Contrast-Enhanced Ultrasound (CEUS)

• AI tools: automatic ejection fraction (AutoEF), global longitudinal strain (XStrain), UroFusion (MRI/US fusion), breast mass analysis, fetal biometric plan recognition, etc.

• Ergonomics: touch control, ambient light sensor, integrated gel warmer, probe holders, adjustable arms

• Weight and footprint: around 120 kg; dimensions approximately 182 × 60 × 112 cm

• Power requirement: 200-240 V, 50-60 Hz

• dimensions: 220x153x55 mm (LxWxH)
• weight: < 0,6 kg
• recording of standard 12 ECG leads
• saving the ECG signal simultaneously from all the 12 leads during the automatic recording, together with the date and time of the examination, filter settings, examination recording time and, optionally, patient's data, in the internal memory
• printout of the automatic ECG recording from internal memory, in groups of three leads
• printout of the analysis, interpretation of automatic ECG examination
• display of 1, 3, 6 or 12 lead ECG recordings
• ECG printout in 1-, 3-, 6- or 12-channel modes
• attaching the name of the patient to the ECG printout
• LCD TFT (4,3", 480x282) touch screen
• membrane alphanumeric keyboard with functional keys
• graphical menu displayed on the screen for easy operation using keyboard
• automatic analysis and interpretation in compliance with EN 60601-2-25 (CSE database) - interpretation dependable on age & sex of a patient
• memory of the last automatic examinations, with a limit from 5 to 1000
• up to 130 automatic examinations in battery mode
• continuous heart rate (HR) measurement and display
• automatic detection of QRS complex
• adapted to direct operation on an open heart
• power line interference filter: 50 Hz, 60 Hz
• muscle interference filter; filters available: 25 Hz, 35 Hz, 45 Hz
• contour line filters; filters available: 0.15 Hz, 0.45 Hz, 0.75 Hz, 1.5 Hz
• detection of electrode detachment, independent for each channel
• selectable channel to detect heart rate
• thickness of the printing ECG waveforms line to choose from: normal or bold
• presentation of the curves in the standard layout or Cabrera layout
• multilingual menu
• external USB communication port to connect a PC and the CardioTEKA software, for real-time transmission of ECG signal
• acoustic signalling of detected beats
• protection against defibrillation pulse
• detection and presentation of stimulating pulses on printout
• automatic examination with the printout of patient data and clinic data
• battery power saving functions

• clamp electrodes (set of 4)
• chest electrodes (set of 6)
• KEKG-30R ECG cable
• medical power connector M12-15
• ECG paper RB1 58 mm wide (1 roll)
• ECG gel
• operation manual

Click Here To Catalogue Download

• PBT-6 is a 4 way Motorized Tabletop with Elevating feature (66cm). A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free
• Automatic Stitching - GXR-SD system provides outstanding automatic stitching function with Source tilting method
• Digital Flat Panel Detector (FPD) – Wireless 17X14 (Csl, 4336W) with Auto Exposure Detection (AED) function, there is no DR trigger cable between detector and generator.
• Full Featured Imaging Software & Excellent Digital Image Processing:

1. Provides convenient user interface and easy operation
2. Anatomical view-based digital image processing automatically optimizes and enhances the quality of the captured image for the pictured anatomy.
3. Radiographic stand & automatic collimator control function
4. DICOM 3.0 networking interface includes Worklist, Print, Store, Query for integration with any PACS or RIS

• Included – Software, HP Laptop Computer

1. CPU≥3.2GHz
2. Memory capacity：≥4GB
3. Hard drive capacity ：≥500 GB
4. Resolution: 1280 x 1024
5. Display size： 21 inch color LCD screen
6. 64 bit Windows 10 operation system
7. Core: i5

• Power Rating - 32KW
• Generator - GXR-32S
• Rotor - Dual Speed Starter(DSS)
• Input Power - 400/480VAC, Three phase
• Line Frequency - 50/60Hz
• X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
• Tube Voltage - 40 to 150kV, 1kV Step
• Tube Current – 10 to 640mA
• Output - 640mA@81kV,  500mA@104kV, 400mA@130kV, 320mA@150kV
• Time Range - 1ms to 10s
• mAs Range - 0.1 to 800mAs
• Reproducibility - Coe­cient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
• Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
• Linearity - Coe­cient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs

Click Here To Download Catalogue

Click Here To Download Catalogue

• TS-CSA-A (Vertical movement, 1.6m stroke, rail length 3x4meter) including HV cable 15m
• WBS-TA: Vertical movement

1. V Stroke:1,450mm in Uprigh Bucky Position,
2. 1,526mm in Horizontal Bucky position.

• PBT-4 is a 4 way Floating Tabletop. A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free
• Digital Flat Panel Detector (FPD) – Wireless 17X14 (Csl, 4336W) with Auto Exposure Detection (AED) function, there is no DR trigger cable between detector and generator.
• Full Featured Imaging Software & Excellent Digital Image Processing:

1. Provides convenient user interface and easy operation
2. Anatomical view-based digital image processing automatically optimizes and enhances the quality of the captured image for the pictured anatomy.
3. Radiographic stand & automatic collimator control function
4. DICOM 3.0 networking interface includes Worklist, Print, Store, Query for integration with any PACS or RIS

• Included – Software, HP Laptop Computer

1. CPU≥3.2GHz
2. Memory capacity：≥4GB
3. Hard drive capacity ：≥500 GB
4. Resolution: 1280 x 1024
5. Display size： 21 inch color LCD screen
6. 64 bit Windows 10 operation system
7. Core: i5

• Power Rating - 32KW
• Generator - GXR-32S
• Rotor - Dual Speed Starter(DSS)
• Input Power - 400/480VAC, Three phase
• Line Frequency - 50/60Hz
• X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
• Tube Voltage - 40 to 150kV, 1kV Step
• Tube Current – 10 to 640mA
• Output - 640mA@81kV,  500mA@104kV, 400mA@130kV, 320mA@150kV
• Time Range - 1ms to 10s
• mAs Range - 0.1 to 800mAs
• Reproducibility - Coe­cient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
• Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
• Linearity - Coe­cient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
• Mechanical Parts:

1. V Stroke:1,450mm in Upright Bucky
2. Position, 1,526mm in Horizontal Bucky position.

Click Here To Download Catalogue

• Simultaneous registration and observation of ECG signal from all 12 leads on PC screen,
• Automatic measurement of HR, ST level and slope,
• Printing and archiving examination report which contains: patient's data, the full disclosure ECG of the whole recording, selected strips, average P-QRS-T complexes, table summary, load value, HR, ST level and slope,
• RAMP protocol
• PMHR control
• Digital filtration of mains disturbances
• Digital filtration of muscle origin disturbances
• Resting examination: 12, 6 or 3-channel in manual or automatic mode
• Automatic regulation of isoelectric line position in the middle of registration channel
• Automatic elimination of isoelectric line migration

• excellent quality of ECG waveforms thanks to the use of digital filters eliminating the swimming of the isoelectric line and disruption of muscle origin,
• uninterrupted recording and presentation of 12-lead ECG signal, presentation of averaged P-QRS-T units with 12 leads along with the results of ST level and slope measurements,
• automatic HR measurement, ST level and ST segment slope,

• automatic control of cycloergometer and treadmill load,
• archiving and printing of the research report,
• automatic determination of measuring points with the possibility of manual correction,
• automatic arrhythmia analysis,
• presentation of parameters regarding: test phase, current load, stage time and total effort time,
• monitored parameters: rhythm rate, MET, double product, blood pressure, level, ST segment slope and load,
• real-time ECG printout,
• preview of trends of all measured parameters during the test,
• alarm system for monitored parameters and arrhythmia,
• an option to automatically measure blood pressure,
• archiving and printing a report enabling a reliable assessment of the study (such an report contains ECG, average P-QRS-T assemblies and a table with measurement results),
• standard test protocols and the ability to define your own protocols also in RAMP mode,
• preview the report on the screen before printing the report,
• function of reanalysis of the performed test,
• presentation of 3D trends illustrating ST segment changes.

Click Here To Download Catalogue
