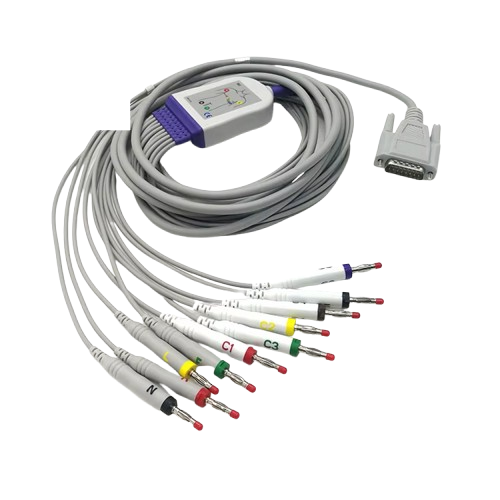

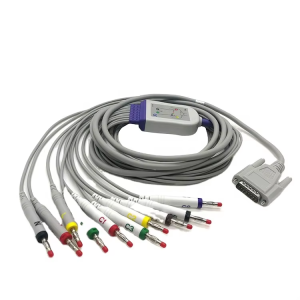

Nihon Kohden SE-1200 9130 10-Lead ECG/EKG Cable

Features:

• Specifically designed for Nihon Kohden SE-1200 and ECG-9130 systems

• Supports standard 10-lead EKG configurations

• High-fidelity signal transfer with low noise interference

• Snap or clip-type connectors for secure electrode attachment

• Durable TPU jacket and flexible cable structure

• Medical-grade, biocompatible materials

• Easy to clean and disinfect

• Long-lasting and reusable for multiple patients

• Plug-and-play system integration

Specifications:

• Connector Type: Nihon Kohden 15-pin connector

• Lead Configuration: 10-lead

• Lead Wire Type: Snap or Clip (model dependent)

• Cable Length: Approx. 2.5 – 3.0 meters

• Material: TPU insulated cable with shielded cores

• Compatibility: Nihon Kohden SE-1200, ECG-9130

• Certifications: CE, ISO 13485 compliant

• Use Type: Reusable, non-sterile

• Packaging: Individually sealed or boxed

• 8.4" TFT Color Screen - (Optional Touch Screen Upgrade)
• Standard parameters are ECG, Resp., SpO2, NIBP, Temp.
• Ultra-low power consumption
• Quiet operation
• High accuracy SpO2 reading
• Data transfer or firmware upgrade via USB
• 2 Years Manufacturer's Warranty

Click Here To Download Catalogue

• dimensions: 220x153x55 mm (L x W x H)
• weight: < 0,6 kg
• recording of standard 12 ECG lead
• saving the ECG signal simultaneously from all the 12 leads during the automatic recording, together with the date and time of the examination, filter settings, examination recording time and, optionally, patient's data, in the internal memory
• printout of the automatic ECG recording from internal memory, in groups of three leads
• printout of the analysis, interpretation of automatic ECG examination
• display of 1, 3, 6 or 12 lead ECG recordings
• printout of 1 or 3 lead ECG of selected group:
• attaching the name of the patient to the ECG printout
• ECG printout in 1- or 3-channel modes
• membrane alphanumeric keyboard with functional keys
• graphical menu displayed on the screen for easy operation using keyboard
• automatic analysis and interpretation in compliance with EN 60601-2-25 (CSE database) - interpretation dependable on age & sex of a patient
• memory of the last automatic examinations, with a limit from 5 to 1000
• up to 130 automatic examinations in battery mode
• continuous heart rate (HR) measurement and display
• automatic detection of QRS complex
• adapted to direct operation on an open heart
• power line interference filter: 50 Hz, 60 Hz
• muscle interference filter; filters available: 25 Hz, 35 Hz, 45 Hz
• contour line filters; filters available: 0.15 Hz, 0.45 Hz, 0.75 Hz, 1.5 Hz
• detection of electrode detachment, independent for each channel
• selectable channel to detect heart rate
• the thickness of the printing ECG waveforms line to choose from: normal or bold
• presentation of the curves in the standard layout or Cabrera layout
• multilingual menu
• external USB communication port to connect a PC and the CardioTEKA software, for real-time transmission of ECG signal
• acoustic signalling of detected beats
• protection against defibrillation pulse
• detection and presentation of stimulating pulses on printout
• automatic examination with the printout of patient data and clinic data
• battery power saving functions

• limb electrodes, 4 pieces
• chest electrodes, 6 piece
• KEKG-30R ECG cable
• medical power connector, M12-15
• RB1 paper 58 mm wide (1 roll)
• ECG gel
• operation manual

Click Here To Download Catalogue

• • Comfortable Packaging
  • Singularly Tested and Packed
  • Always 100% accurate and hygienic
  • No Calibration required
  • No Sterilization required
  • No Antibacterial Filter required
  • No Cross Contamination
  • Not affected by Vapour Condensation
  • Not affected by Ambient conditions
  •  A full Spirometry session can be performed, including a Bronchial Challenge and POST Bronchodilator test. For each patient after the Spirometry test, both turbine and spirometer mouthpiece are thrown away

• .

• fully compatible with Microsoft Windows environment
• unbeatable tool for alternative placement of electrodes
• independent analysis of the ST segment in all recorded channels, the positioning of all measurement points is user-reconfigurable and may depend on heart rate
• simultaneous arrhythmia detection in all three channels
• automatic signal calibration independent in all channels assures the use of all dynamic range available
• detection, reviewing and editing capability in the qualitative assessment of VE, VT, Single SVE, PSVT, Pauses, Irregular Rhythm, VT, IVR, Brady - and Tachycardia, Couplets, ST-segment elevation and depression, Maximum, Minimum and averaged Heart Rates, artifacts
• validation tool for beat classification making the correction easy and effective
• tabular hourly summaries all quantitative results
• printing of all recorded ECG signal available

• 12-channel digital registration of the ECG signal
• 10-lead patient cable
• registration time: 48 hours or 7 days on SD card
• built-in the real time clock
• EVENT button
• pacemaker detection
• dimensions: 72x76x23 mm
