Radiology

Nio Color 5.8MP (MDNC‑6121)

Brands: Barco-Health

~~$0.00~~

Shipped From Abroad

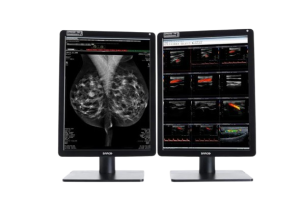

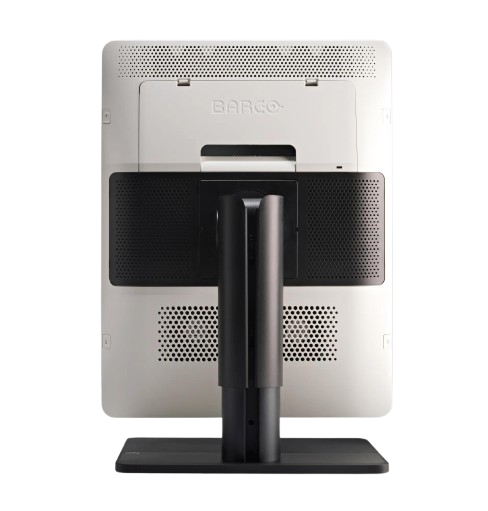

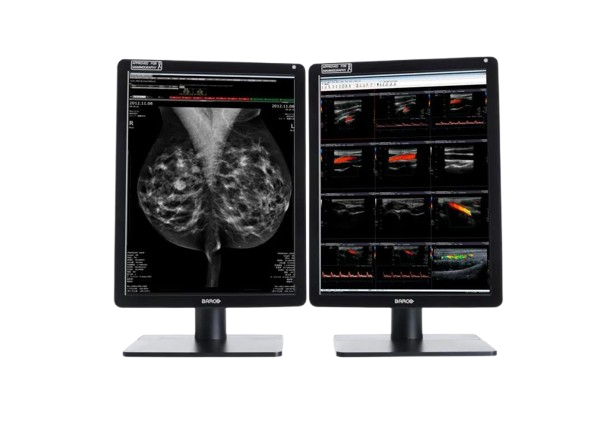

The Barco Nio Color 5MP (MDNC-6121) is a high-brightness, color medical display tailored for mammography and radiology. Offering 5.8 MP resolution, uniform color/gray, and advanced QA integration, it supports precise image review in breast, 3D mammography, and general diagnostic work.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Barco-Health

Description
Reviews (0)

Description

The Barco Nio Color 5MP (MDNC-6121) display brings enhanced clarity and reliability to medical imaging workflows. With a resolution of 4200 × 2800 pixels (5.8 MP), it delivers high-fidelity color and grayscale rendering suited for mammography, tomosynthesis, and general radiology. The IPS-based LCD supports wide viewing angles and uniform luminance correction. Nominal power usage is approx. 60 W. Integrated performance tools, medical certifications, and display consistency make it ideal for diagnostic reading environments where both detail and color accuracy are critical.

Nio Color 5.8MP offers super bright, color-calibrated, and the most detailed medical images, including mammography and breast tomosynthesis. It’s how we help you improve your workflow and make more confident diagnoses.

No detail goes unnoticed

Barco’s Nio Color 5.8MP renders excellent color and grayscale images used in general radiology as well 2D and 3D mammography. Its high brightness and high contrast ratio help you discern the most subtle image details for an accurate diagnosis. And the additional resolution allows you to fit more of the image on the screen for reduced panning and zooming.

Using Barco’s integrated front sensor, the Nio Color 5.8MP works perfectly together with Barco’s QAWeb Enterprise solution for automated Quality Assurance and calibration. QAWeb Enterprise guarantees stable DICOM grayscale images and, with SteadyColor, consistent, calibrated color images throughout the display’s lifetime.

Work smarter

With the integrated smart features, you can easily take control and improve your productivity. SpotView™, for example, allows you to focus on an area of interest to unveil even more details. And with DimView™, auxiliary displays can be dimmed automatically so they don’t interfere with your reading experience.

The Nio Color 5.8MP is an excellent solution for radiologists who want to angle their desktop: it lets you choose your preferred viewing angle and offers a highly ergonomic display configuration. It’s also possible to switch between Clearbase and Bluebase viewing modes on the fly. Whether to suit the image type or to change reading preferences, you decide which color you want, and when.

Ultimate peace of mind

Thanks to the high-performance LED backlights, the Nio Color 5.8MP has a positive impact on both maintenance and operational costs. The display is equipped with an integrated glass cover to safeguard your investment.

Barco is the only company that provides complete system solutions, from displays and controllers to workflow tools and calibration via QAWeb. All components are covered by our full 5-year warranty. At product release, we extensively test our displays’ compatibility with all major PACS applications.

Ensuring diagnostic confidence with MDR Class IIa

Our radiology displays are MDR-certified as Class IIa. Their product information has been reviewed and cleared by independent medical and technical experts, and is audited yearly. In other words, we ensure diagnostic confidence and peace of mind for our users.

An ecolabel for Nio Color 5.8MP

The Nio Color 5.8MP has been subjected to Barco’s ecoscoring protocol and has received an A rating. Some key factors that contributed to this rating are:

Energy-efficient power supply, energy-efficient standby, and off modes
Possibility to switch to standby mode when the device is not in use
Halogen-free cables and plastics
Use of recycled cardboard in packaging (>85% recycled content)
Product design optimized for disassembly with common tools

Key Features

5.8 megapixel (4200 × 2800) resolution for high detail imaging
Bright, calibrated color and grayscale capability
Wide viewing angles (178° horizontal & vertical)
Uniform brightness correction for consistent image quality
Power-efficient design with nominal 60 W consumption
LCD technology optimized for medical imaging
Suitable for mammography, tomosynthesis, general radiology, and PACS integration

Specifications

Category	Specification
Screen Technology	LCD
Active Screen Size	21.3″ diagonal (541 mm); 324 × 433 mm (12.77″ × 17″)
Aspect Ratio	3:4 per display (portrait), 3:2 overall
Resolution	5.8 MP (2100 × 2800 pixels)
Pixel Pitch	0.1545 mm
Color & Gray Imaging	Yes
Bit Depth	30-bit
Viewing Angle	178° (H/V)
Uniformity Correction	ULT
SteadyGray	Yes
SteadyColor	Yes (with Barco Display Controller, video driver, QAWeb Enterprise)
Color Gamut	NTSC: 72.2%, sRGB: 101.9%, DCI-P3: 75.5%
sRGB Delta E2000	Avg < 3, Max < 5
I-Luminate	Yes
Ambient Light Features	Presets and sensor; reading room selection
Front Sensor	Yes (I-Guard)
Max Luminance	1560 cd/m²
DICOM Calibrated Luminance	600 cd/m²
Contrast Ratio	1400:1
Response Time	12.5 ms ((Tr + Tf)/2)
Housing Color	Black (RAL 9004) / White (RAL 9003)
Video Inputs	2 × DisplayPort 1.4
USB Ports	2 × USB-B 2.0 upstream; 5 × USB-A 2.0 downstream (1 charging)
KVM Switch	Yes
Power Rating	24 VDC, 5 A
Power Supply	AdapterTech ATM160T-P240 (100–240 Vac, 50–60 Hz, 1.8–0.9 A; Output: 24 Vdc, 6.6 A)
Power Consumption	60 W (nominal); 0.4 W (hibernate/off)
Dimensions (with stand)	Portrait: 378 × 528~628 × 235 mm; Landscape: 491 × 472~572 × 235 mm
Dimensions (w/o stand)	Portrait: 378 × 491 × 84 mm; Landscape: 491 × 378 × 84 mm
Packaged Dimensions	500 × 280 × 670 mm
Weight (with stand)	With cover: 11.9 kg; Without cover: 10.6 kg
Weight (w/o stand)	With cover: 6.9 kg; Without cover: 5.6 kg
Packaged Weight	With cover: 16.9 kg; Without cover: 15.6 kg
Tilt / Swivel / Pivot	Tilt: -10° to +30°; Swivel: ±45°; Pivot: 90°
Height Adjustment	100 mm
Mounting Standard	VESA (100 mm)
Screen Protection	Optional anti-reflective glass
Recommended Modalities	All digital images, including digital mammography
Certifications	FDA 510(K), CE0123, CCC, KC, INMETRO, BIS, IEC/EN/AAMI/CSA standards
EMI Compliance	IEC/EN/FCC/ICES/VCCI standards
Environmental Compliance	EU RoHS, China RoHS, REACH, WEEE, Packaging Directive
Supplied Accessories	User guide, documentation disc, system sheet, DisplayPort cable, USB cable, PSU
Optional Accessories	Graphics board, QA software, QAWeb Enterprise
Warranty	5 years (includes 40,000 hours backlight warranty)
Operating Conditions	Temp: 0–40 °C (specs: 15–30 °C); Humidity: 8–80%; Pressure: 70 kPa
Storage Conditions	Temp: -20–60 °C; Humidity: 5–85%; Pressure: 50–106 kPa
