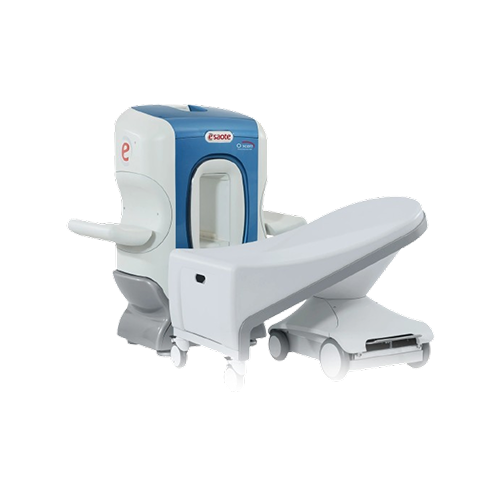

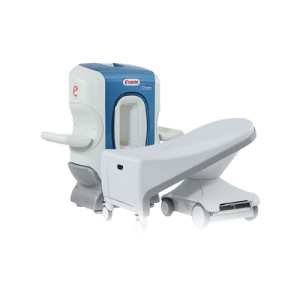

O-scan: The ideal solution for extremities MRI

Engineered for performance

Imaging & Visualization

The O-scan system is engineered for maximum performance and patient experience in a compact footprint.

• Compact & Efficient: It is a very compact system, requiring only 9 m² of installation space, and can be installed in virtually any office or practice with ease.

• High Throughput: The system is capable of scanning up to 3 patients per hour, significantly enhancing workflow and productivity in clinics.

• Patient Comfort: It offers an optimal patient experience with a design that eliminates claustrophobia—only the extremity being examined is inside the magnet, while the patient sits comfortably. It also features a low acoustic noise level (59.7 dB).

• Sustainability & Economics: It is an eco-friendly and efficient system with low power consumption (1 kW), contributing to cost containment and low running costs.

Clinical Applications

The O-scan is the ideal solution for MRI of the extremities, providing high-quality imaging for musculoskeletal (MSK) pathology.

• Extremity MRI: It provides a complete range of high-quality imaging capabilities for the upper and lower limbs.

• Targeted Use: Its efficiency and economics make it an ideal solution for:

  • Standalone Specialty Clinics

  • An add-on unit in the main Radiology Department to divert suitable patients and reduce waiting lists.

• High-Throughput Environments: It is designed for high-throughput in Radiological settings and Orthopedic practices, allowing direct access to MRI for musculoskeletal diagnosis.

Coils (Probe Types)

The O-scan utilizes a complete set of dedicated Dual Phased Array (DPA) coils for high-quality extremity imaging.

The system's coils are specifically designed for the limbs:

• Knee coil DPA O-scan

• Hand-Wrist coil DPA O-scan

• Ankle-Foot coil DPA O-scan

RZ LED iLumen EndoVue 24"

Features:

• • 1920x1200 (WUXGA), 518x324mm, 16:10
  • 178° viewing angle, 49 W
  • 24 inch TFT LCD (LED)
  • 1920 x 1200 pixel (WUXGA)
  • 2 x DVI-D
  • 1 x SD/HD/3G-SDI (BNC)
  • 2 x SOG
  • 1 x VGA (D-sub)
  • 1 x C-Video (BNC)
  • 1 x S-Video (DIN)
  • 1 x Component (RGBS, YPbPr) (5 x BNC)

Full HD Digital Camera System F 1

Features:

• 3-Chip Full HD camera with latest MOS technology for brilliant picture quality
• Pure Natural Colors technology

• best possible picture transmission to medical grade monitors
• 3 programmable remote control buttons User-friendly multilingual menu allows a large variety of setups for individual procedures and surgeons preferences
• Full HD 60fps video recording
• Full HD image saving
• USB pen drive included
• Boost function
• On-screen-menu
• 3 user settings storable
• 5x digital zoom

LUMEN LED 1 High Intensity Light Source 180W

Features:

• More than 10.000h lamp lifetime
• Latest PHASER® – Technology
• Waterproof touch control panel
• High color rendering
• High luminance
• Daylight color temperature
• Low noise level
• No UV or IR light
• Low power consumption
• Video-IN terminal - 1 x VHS (BNC)

AIRFLOW A2 INSUFFLATOR

Feature:

• Gas Flow - 20L/min
• User-friendly interface
• Highest safety standard for patients
• Available with CO2 heating system
• Pre-insufflation mode for use with Verres Cannulas
• Non-heating unit features same gasflow rates as heating unit models
• Gas connection - UNF 7/16“ male
• Gas - Medical Grade Carbon Dioxide.

**SUCTION AND IRRIGATION PUMP P1000

Feature:

• Double roll pump for precise suction- and irrigation during Laparoscopic surgeries
• Also for extraction of smoke gases that arise when using lasers and HF devices
• Optional footswitch for comfortable operation during surgery
• Permits dispensing with mechanically sensitive trumpet valves that require elaborate cleaning
• Independently digital pre-settings for maximum suction and irrigation pressures
• Digital display of actual suction and irrigation pressures
• High efficiency with rates up to 3L/min
• Color coded tubing sets
• Standby function
• Irrigation Power - 0 - 3.0 ml/min
• Suction Power - 0 - 3.0 ml/min
• Pressure - 0 - 750 mmHg.

**DIATHERMY MACHINE 200W

Feature:

• Stable and Powerful Generators,
• Highest patient safety through REM system
• Digital value indicator of chosen power output
• Monopolar and Bipolar applications
• Activation through Hand- or Footswitch
• Safe application through color-coded membrane keypad
• Max output power CUT 200W – 250Ω
• Max output power ENHANCED 120W – 250Ω
• Max output power BLEND120W – 200Ω

• Max output power FORCED COAG 150W – 150Ω
• Max output power SOFT COAG 90W – 100Ω
• Max output power BIPOLAR COAG 80W – 50Ω
• Working frequency 600 kHz
• Patient circuit F
• Mains voltage 115-230 Vac
• Mains frequency 50-60 Hz

HIGH-END TROLLEY

Feature:

• Power columns for cables
• Endoscope Holder
• Variable height support arms
• Conductive rolls
• Optional doors and rear panel in order to protect valuable equipment
• Optional main on/off switch

Accessory

• Fibre Optic Light Guide Cable Ø 4,8mm, 3000mm
• Adaptor for Fibre Optic light guide Type RZ/Storz - connection to unit

Click Here To Download Catalogue

• This white coat laboratory coat is a knee-length overcoat/smock is perfect for professionals in the medical field or by those involved in laboratory work.
• This garment is Easy to wash and made from a cotton polyester blend, allowing it to be washed at high temperature and make it easy to see if it is clean.
• Easy to wash.

• Provides convenient user interface and easy operation
• Anatomical view-based digital image processing
• Radiographic stand and automatic collimator control function
• DICOM 3.0 networking interface features include: work-list, print, store, and query for
• integration with any PACS or RIS.

• Outstanding image quality by optimized digital image processing
• Easy driving and maneuverable with ergonomic and compact design
• Convenient and enough space for detector, battery and other necessary stuff
• Swift mobility with 5km/h speed allows you to save time, cost and satisfy your patient with quick processing
• Accurate positioning and precise movement provided with 4 direction buttons on this control panel
• Longer arm stroke and high column provide wider coverage and patient-friendly operation service
• A safety function with front safety bumper & brake, spring loaded front wheel and status LED indicator
• Provide best satisfaction and convenience for your patient and operator. It will prevent any unexpected and secondary accident

• Output Rating   - 32kW/40kW
• kVRange          - 40 to 125V/150kV
• mA Range        - 10 to 400mA/500mA
• mAs Range      - 0.1 to 400mA/500mAs

• Size – 14X17inch
• Scintillator - Csl/GOS
• Type - Wireless

Click Here To Download Catalogue

• BILIPOD LED Double Surface Phototherapy Unit Sturdy Baby Trolley consists of –  Collapsible Acrylic Side Panels  Transparent Baby Tray with Bubble Mattress  Height Adjustment and Angle Adjustment for Overhead LED Module  Four Swivelling castor wheels with brakes Certified Also available - Bilipod Double Surface Phototherapy Unit with Detachable trolley
• Uniform Light Distribution with 11 High Intensity LED Lamps uniform body coverage • Observation Lamp Two Observation White LEDs provide enough light to observe the color of baby’s skin • High Irradiance Levels Irradiance > 30 µW/cm²/nm enables faster bilirubin breakdown • Pin Drop Silent Operation zero noise cooling fan • Optimum Wavelength Range: 420 to 490 nm • Very Low Power Consumption of only 30W • Effective Surface Area : 40cm x 50cm
• Life of Lamps - 30000 hours • Lamp Tilt up to 90° • Height Adjustability up to 50cm • Light Weight Lamp Unit weighs less than 3 Kg • Portable can be placed above Infant incubator or below the Infant Warmer Bassinet to give under surface Phototherapy • Sleek & Compact Lamp Unit Size : 45 x 30 x 5 cm takes minimum space • Timer: LCD Based Timer measuring Total Lamp Usage and Patient Timer
• BiliProbe Irradiance Meter Handheld Irradiance (Flux) meter for measurement of the output of conventional Phototherapy Units.  Bandpass filter - 425nm to 475nm  Range: 0 to 200 uW/cm²/nm  Minimal Graduation: 1 uW/cm²/nm  Accuracy: ± 10%  Measuring Time: Approx 4-5 sec  Press to ON Switch  Battery: 9V Alkaline Phototherapy Eye PATCH has been designed to assure complete comfort, and eye protection for infants during Phototherapy Treatment  Adjustable Band for proper comfort and secure fit  Easy to use design  Large eye protection pad increases light protection  Single Piece wrap around design can be independently adjusted to prevent unwanted movement.  Available in 3 sizes - Preterm, Term and Neonatal Phototherapy Eye Patch
