Pediatric Bronchoscope Training Model

Brands: Preclinic

~~$0.00~~

Shipped From Abroad

Train pediatric respiratory endoscopy with PLHX1005. Soft silica gel model replicates realistic airway, supports biopsy, brush exam, foreign body removal.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Preclinic

Description
Reviews (0)

Description

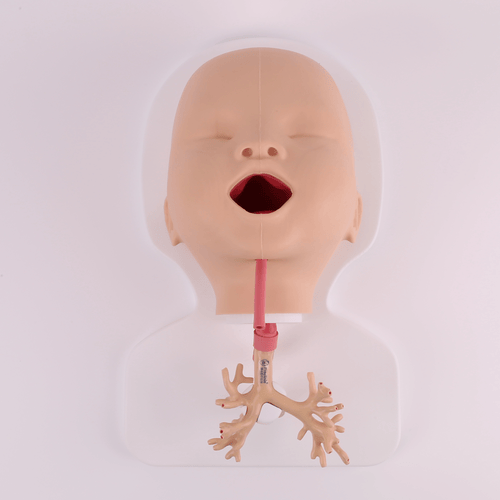

The Pediatric Bronchoscope Training Model (Model PLHX1005) by Preclinic is a high-fidelity pediatric airway simulator designed for endoscopy training in children. It is built from soft silica gel material (hardness approx. 18A-30A) based on children’s lung CT data, replicating the oral cavity, nasal cavity, throat, and tracheobronchial anatomy with realistic feel. The model includes both fixed parts (head model, bronchial tree, base) and replaceable elements for simulating foreign body removal. It supports pediatric laryngoscope, bronchoscope, endotracheal intubation, biopsy, and brush examination procedures. With approximate dimensions 68 cm × 40 cm × 35 cm, it is ideal for medical training centres aiming to improve skill in pediatric respiratory endoscopy.

Key Features & Specifications

Feature	Specification / Detail
Model Number	PLHX1005 — Pediatric Bronchoscope Training Model
Material	Soft silica gel, hardness ~18A-30A
Fixed Components	Head model, tracheobronchial model, base
Replaceable Parts	Simulated foreign body component
Procedures Supported	Pediatric laryngoscope; bronchoscope; endotracheal intubation; biopsy; brush examination
Dimensions	Length: 68 cm (26.8 in), Width: 40 cm (15.7 in), Height: 35 cm (13.8 in)
Lead Time	15 days
Port of Dispatch	Shanghai, China

Reviews

There are no reviews yet.

Be the first to review “Pediatric Bronchoscope Training Model”

Quick Comparison

Pediatric Bronchoscope Training Model remove ASPEL AsPEKT 712 Holter Monitor and Software remove DrGem GXR-SD 400mA Floor Mounted Digital X-ray remove Sonoscape S11 Ultrasound Machine remove ASPEL AsCARD Coral PC Based ECG Machine remove Jade Mobile X-ray machine (Analogue) remove

Name Pediatric Bronchoscope Training Model remove ASPEL AsPEKT 712 Holter Monitor and Software remove DrGem GXR-SD 400mA Floor Mounted Digital X-ray remove Sonoscape S11 Ultrasound Machine remove ASPEL AsCARD Coral PC Based ECG Machine remove Jade Mobile X-ray machine (Analogue) remove


SKU SF1033560075-4 SF1033560074-5 SF1033560012-1 SF1033560075-11 SF1033560074-2

Rating

Price

~~$0.00~~

$1,991.00

~~$0.00~~

$6,380.00

$486.00

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad Train pediatric respiratory endoscopy with PLHX1005. Soft silica gel model replicates realistic airway, supports biopsy, brush exam, foreign body removal.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The Holta Monitor allows quick analysis of ECG examination and detection, reviewing and editing capability in the qualitative assessment of VE, VT, Single SVE, PSVT, Pauses, Irregular Rhythm, VT, IVR, Brady - and Tachycardia, Couplets, ST-segment elevation and depression, Maximum, Minimum and averaged Heart Rates, artifacts Delivery & Availability: Typically 10 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock The GXR-SD Digital X-ray is a diagnostic digital radiography system that provides reliable high quality digital radiographic images with a reduced dose. The GXR-SD DR systems offer comprehensive digital solutions to all radiography needs, featuring ACQUIDR digital imaging system with stationary or portable digital flat-panel detectors as well as reliable high-frequency x-ray generators that are known worldwide for their excellent performance, lifetime and stability. Patient tables and wall stands are also offered. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock A Value Choice beyond Your Expectation. SonoScape’s trolley color Doppler system S11 redefines price and performance with practical design. The S11 will go beyond your expectations but not your budget. Delivery & Availability: Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad AsCARD Coral electrocardiograph is a 3-, 6-, 12-channel ECG equipped with CardioTEKA software allows transmission of full 12 ECG leads to the user PC through USB interface. It is intended for carrying out ECG examinations in adults and pediatric patients in all types of health care centres. ECG procedures can be performed by qualified personnel only. AsCARD Coral can cooperate also with CardioTEST system as 12-channel ECG device allows transmission of full 12 ECG leads to the user PC through USB interface. Delivery & Availability: Typically 10 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock JADE is one of the lightest portable X-ray systems on the market, allowing it to be used in any imaginable way including bedside, operating rooms, intensive care units and in veterinary fields. With a simple, easy-to-use operator console, three-way control, two-step foldable stand and auto lock system, JADE is a user-friendly portable X-ray system. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Key Features & Specifications

Feature	Specification / Detail
Model Number	PLHX1005 — Pediatric Bronchoscope Training Model
Material	Soft silica gel, hardness ~18A-30A
Fixed Components	Head model, tracheobronchial model, base
Replaceable Parts	Simulated foreign body component
Procedures Supported	Pediatric laryngoscope; bronchoscope; endotracheal intubation; biopsy; brush examination
Dimensions	Length: 68 cm (26.8 in), Width: 40 cm (15.7 in), Height: 35 cm (13.8 in)
Lead Time	15 days
Port of Dispatch	Shanghai, China

The Holter Monitor allows quick analysis of ECG examination (arrhythmias and ST segment). Technical specifications: HolCARD 24W Software:

fully compatible with Microsoft Windows environment
unbeatable tool for alternative placement of electrodes
independent analysis of the ST segment in all recorded channels, the positioning of all measurement points is user-reconfigurable and may depend on heart rate
simultaneous arrhythmia detection in all three channels
automatic signal calibration independent in all channels assures the use of all dynamic range available
detection, reviewing and editing capability in the qualitative assessment of VE, VT, Single SVE, PSVT, Pauses, Irregular Rhythm, VT, IVR, Brady - and Tachycardia, Couplets, ST-segment elevation and depression, Maximum, Minimum and averaged Heart Rates, artifacts
validation tool for beat classification making the correction easy and effective
tabular hourly summaries all quantitative results
printing of all recorded ECG signal available

AsPEKT 712 Recorder:

12-channel digital registration of the ECG signal
10-lead patient cable
registration time: 48 hours or 7 days on SD card
built-in the real time clock
EVENT button
pacemaker detection
dimensions: 72x76x23 mm

Click Here To Download Catalogue

DrGem GXR-SD 400mA Floor Mounted Digital X-ray system matches with a radiographic room which perfectly fits your workow and can be easily upgraded to DR system with the help of DR interface and PC interface in GXR generator as well as Bucky suitable to Flat Panel Detector. GXR X-ray system is equipped with a high frequency X-ray generator which consistently produces high quality radiograph in favor of high quality X-ray output with a very small kV ripple and accurate mA and mAs. GXR X-ray system is designed to provide convenience to operator and comfort to patient Features of DrGem GXR-SD 400mA Floor Mounted Digital X-ray:

PBT-6 is a 4 way Motorized Tabletop with Elevating feature (66cm). A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free
Automatic Stitching - GXR-SD system provides outstanding automatic stitching function with Source tilting method
Digital Flat Panel Detector (FPD) – Wireless 17X14 (Csl, 4336W) with Auto Exposure Detection (AED) function, there is no DR trigger cable between detector and generator.
Full Featured Imaging Software & Excellent Digital Image Processing:

Provides convenient user interface and easy operation
Anatomical view-based digital image processing automatically optimizes and enhances the quality of the captured image for the pictured anatomy.
Radiographic stand & automatic collimator control function
DICOM 3.0 networking interface includes Worklist, Print, Store, Query for integration with any PACS or RIS

Included – Software, HP Laptop Computer

CPU≥3.2GHz
Memory capacity：≥4GB
Hard drive capacity ：≥500 GB
Resolution: 1280 x 1024
Display size： 21 inch color LCD screen
64 bit Windows 10 operation system
Core: i5

Technical Specifications of DrGem GXR-SD 400mA Floor Mounted Digital X-ray:

Power Rating - 32KW
Generator - GXR-32S
Rotor - Dual Speed Starter(DSS)
Input Power - 400/480VAC, Three phase
Line Frequency - 50/60Hz
X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
Tube Voltage - 40 to 150kV, 1kV Step
Tube Current – 10 to 640mA
Output - 640mA@81kV, 500mA@104kV, 400mA@130kV, 320mA@150kV
Time Range - 1ms to 10s
mAs Range - 0.1 to 800mAs
Reproducibility - Coecient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
Linearity - Coecient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs

Click Here To Download Catalogue

DETAILS SonoScape’s trolley colour Doppler system S11 redefines price and performance with practical design. The S11 will go beyond your expectations but not your budget. As an easy-to-use ultrasound system, the S11 is integrated with a new software platform, especially optimized for a smooth workflow and convenient operation. The system speeds up the exam process and makes file management easier. SPECIFICATION - 15-inch high definition LCD monitor with articulating arm - Compact and agile trolley design - 3 active transducer sockets available for a wide range of applications - Duplex, Color Doppler, DPI, PW Doppler, tissue harmonic imaging, μ-scan speckle reduction imaging, compound imaging, trapezoidal imaging - Customized settings based on your own working style - Full patient database and image management solutions

Click Here To Download Catalogue

AsCARD Coral electrocardiograph is a 3-, 6-, 12-channel ECG equipped with CardioTEKA software allows transmission of full 12 ECG leads to the user PC through USB interface. It is intended for carrying out ECG examinations in adults and pediatric patients in all types of health care centres. ECG procedures can be performed by qualified personnel only. AsCARD Coral can cooperate also with CardioTEST system as 12-channel ECG device allows transmission of full 12 ECG leads to the user PC through USB interface. Technical Specification:

Number of electrodes: 10
ECG channels: 12
Sampling frequency: 1600 Hz
Transmitted ECG signal resolution: 12 bits
Transmission type: USB 1.1
ECG signal analysis: CardioTEKA Software

Click Here To Download Catalogue

JADE Mobile X-ray machine is one of the lightest portable X-ray systems on the market, allowing it to be used in any imaginable way including bedside, operating rooms, intensive care units and veterinary fields. With a simple, easy-to-use operator console, three-way control, two-step foldable stand and auto-lock system, the JADE Mobile X-ray machine is a user-friendly portable X-ray system. Convenient & Intuitive Operation: JADE is one of the lightest portable X-ray systems on the market, allowing it to be used in any imaginable way including bedside, operating rooms, intensive care units and in veterinary fields. With a simple, easy-to-use operator console, three-way control, two-step foldable stand and auto-lock system, JADE is a user-friendly portable X-ray system. Compact & Powerful Design: JADE Mobile X-ray machine is an innovative, highly versatile portable X-ray system suitable for a variety of clinical uses. Utilizing the unique technology used in DRGEM’s universally recognized X-ray generators, JADE is a compact but powerful unit with a 4kW output and thoughtfully designed components to increase efficiency and maximize workflow. The core part of X-ray source adopts high-quality tube assembly, X-ray collimator and high frequency X-ray generator with excellent performance, lifetime and stability. Features:
