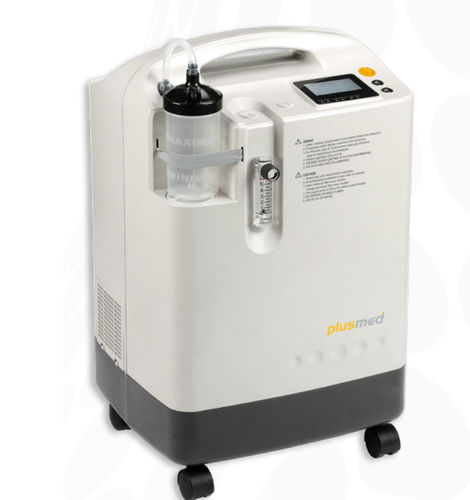

pM-KN01-Stationary Oxygen Concentrator

Brands: Plusmed

~~$0.00~~

Shipped From Abroad

pM-KN01 Oxygen Concentrator adopts the pressure swing adsorption principle, which can separate oxygen, nitrogen, and other gases from the air. As soon as power is connected, the oxygen that meets medical use standards can be separated from the air constantly. The planned life of the whole generator reaches up to 20,000 hours. There is no influence on the indoor oxygen percentage during the generator’s operation.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Plusmed

Description
Reviews (0)

Description

The Plusmed PM-KN01 is a stationary oxygen concentrator designed for continuous oxygen therapy in both clinical and home settings. Utilizing pressure swing adsorption (PSA) technology, it efficiently separates oxygen from ambient air to deliver high-purity oxygen to patients.pdf.medicalexpo.com+3Plusmed+3MedicalExpo+3

Key Features

Continuous Operation: Provides a steady oxygen supply without affecting indoor air quality.
User-Friendly Interface: The large LCD display offers real-time information on device status and operation.
Safety Features: Equipped with multiple alarms to ensure patient safety and device reliability.
Durable Design: Built for long-term use with a lifespan of up to 20,000 hours.
Mobility: Mounted on casters for easy movement within the home or clinical environment.

Specifications

Parameter	Details
Model	PM-KN01
Rated Power	550 VA
Operating Voltage	AC 230V ±10%, 50 ±1 Hz
Oxygen Flow	0 – 5 L/min
Oxygen Concentration	93% ±3%
Outlet Pressure	0.04 – 0.07 MPa
Alarm Types	Power failure, low & high pressure
Sound Level	≤ 50 dBA
LCD Display Functions	Accumulating timing (0–10,000 hrs), present timing, preset timing, pressure (accuracy: 0.001 MPa), switch times
Display Size	Large LCD
Timing Accuracy	1 minute
Electrical Category	Class II Type B
Product Category	Class IIa
Net Weight	26 kg
Fuse Specification	T6.3AL/250V

Download Instruction Manual
