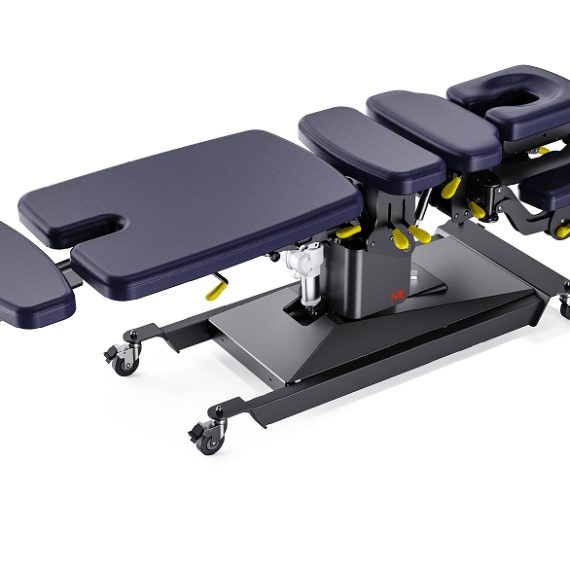

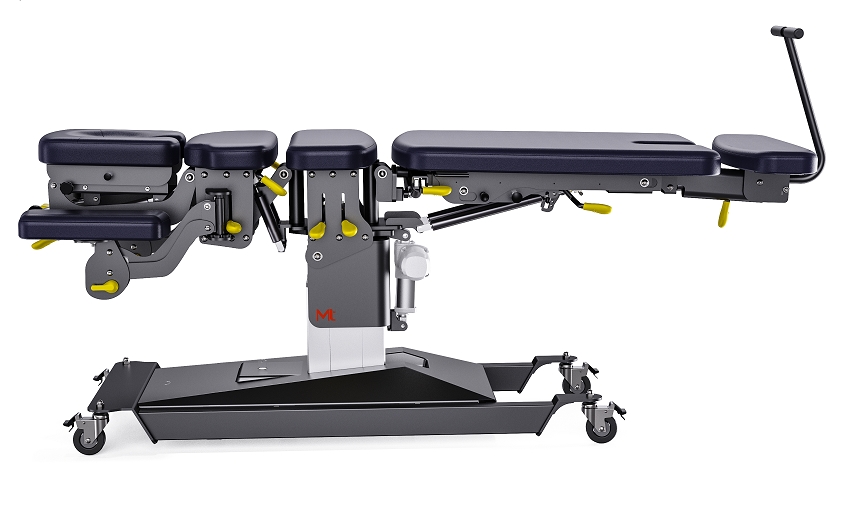

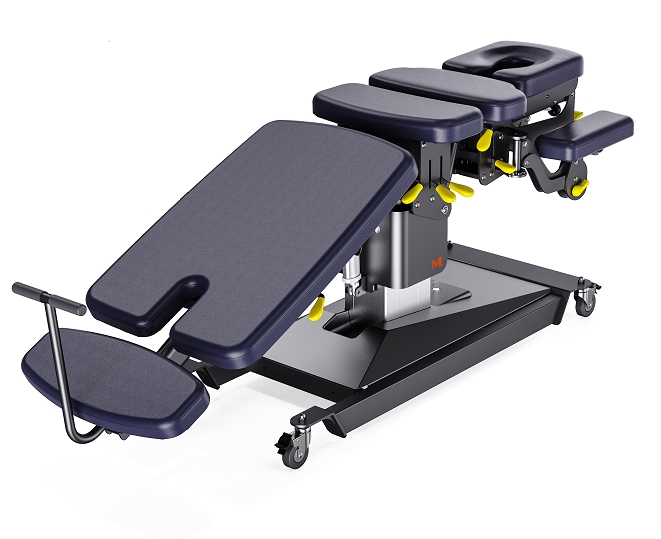

Prime Electric 3D Flexion Distraction Osteopathy Table

Brands: Jiangsu Sintang Health

~~$0.00~~

Shipped From Abroad

The Prime Chiropractic Table is a precision-engineered manual therapy platform designed for spinal manipulation, lumbar traction, and 3D flexion-distraction therapy. Its single-column PowerLift structure ensures superior stability, while the adjustable sec

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Jiangsu Sintang Health

Description
Reviews (0)

Description

The Prime Chiropractic Table is a precision-engineered manual therapy platform designed for spinal manipulation, lumbar traction, and 3D flexion-distraction therapy. Its single-column PowerLift structure ensures superior stability, while the adjustable sections enable practitioners to perform decompression, mobilisation, and soft-tissue techniques with accuracy and ease.
Built for chiropractors, osteopaths, and physiotherapists, Prime offers smooth movement in multiple axes – ideal for restoring alignment, improving joint function, and relieving muscle tension through dynamic positioning.

Features

Electric power lift system for easy height adjustment
3D flexion-distraction capability for gentle spinal decompression
Multi-section adjustable table for precise patient positioning
Smooth, controlled movements for consistent therapy
Supports manipulation, traction, decompression, and mobilisation
Reduces practitioner strain with motorised operation
Enhances spinal alignment and joint mobility
Suitable for treating a wide range of spinal conditions
Stable, durable frame ensuring safe operation
Designed for chiropractic, osteopathy, and physiotherapy clinics

Functions

Upper Body Section

Headpiece & Thorax Section 3D flexion-distraction motion for precise mobilization
Height adjustable, rotatable, and swiveling armrests
6.5 cm cervical traction for neck therapy
Straight cervical spine drop
Pneumatically assisted tilting headrest (–40° ~ +27°)
Pneumatically assisted elevating headrest (0° ~ +40°)
Headpiece lateral manual flexion: ±18°
Thorax section lateral manual flexion: ±18°
Pneumatically thorax section vertical flexion: –18° ~ 0°

Lower Body Section

Lumbar vertical manual flexion: –35° to +15°
Lumbar lateral manual flexion: ±18°
Axial rotation at any position: ±23°
Manual dynamic 3D flexion-distraction motion
8 cm lumbar traction for effective lower back care
Straight lumbar drop function
Flippable & rotatable footrest support system
Double body straps

Motorized Adjustments

Double lifting motors
Electric tilt up/down: –12° ~ 0°
Electric height: 65–83 cm / 25.6″–32.7″
Double foot controller
Electric safety lock
Durable German-brand gas spring

Specification

Length: 76.5″ / 194 cm
Width: 23.6″ / 60 cm
Height: 65–83 cm / 25.6″–32.7″
Electric Tilt Up: 12° ~ 0°
Material: High-density molded polyurethane sponge
Upholstery: Durable anti-bacterial PVC vinyl
Safety Lifting Capacity: 440 lbs / 200 kg
Safe Working Weight: 440 lbs / 200 kg
