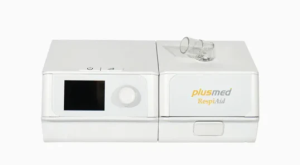

RespiAid AutoCPAP System

Brands: Plusmed

~~$0.00~~

Shipped From Abroad

The RespiAid AutoCPAP System automatically adjusts pressure levels (4–25 hPa) to suit individual breathing patterns, providing optimal sleep apnea therapy. It features ultra-quiet performance, a built-in humidifier, an SD card for therapy tracking, and a user-friendly LCD interface, making it ideal for comfortable, reliable, and adaptive respiratory support at home.

RespiAid CPAP is equipped with required alarm and warning systems to offer simplicity, safety, and comfort to the user to provide continuous treatment.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Plusmed

Description
Reviews (0)

Description

With its user-friendly interface and intuitive controls, the Respiaid AutoCPAP System offers a seamless experience for users. It effectively delivers a continuous positive airway pressure (CPAP) to help maintain an open airway during sleep, reducing episodes of interrupted breathing and snoring.

This CPAP system incorporates a mask and humidifier, further enhancing the overall treatment experience. The mask provides a secure and comfortable fit, ensuring minimal air leakage, while the humidifier adds moisture to the air, preventing dryness and discomfort.

The Respiaid AutoCPAP System is suitable for use in various settings, including hospitals, clinics, and home environments. It is designed to meet the needs of both medical professionals and individuals seeking effective sleep apnea treatment.

Key Features:

Advanced alarm and warning systems for enhanced safety
User-friendly interface and intuitive controls
Continuous positive airway pressure (CPAP) for uninterrupted breathing during sleep
Secure and comfortable mask for minimal air leakage
Integrated humidifier for added comfort and moisture
Suitable for use in medical facilities and home environments

Technical Specifications

Category	Specification
Device Size	140 × 156 × 94 mm (without humidifier) 262 × 156 × 94 mm (with humidifier)
Weight	<1 kg (without humidifier) <1.6 kg (with humidifier)
Power Supply Requirements	100–240 V, 50/60 Hz, ≤2 A
Security Type	Class II, Type BF Applied Part
Waterproof Level	IP22 – Drip proof
Working Mode	Continuous mode (≥8 hours continuous operation)
Operating Mode	See section 3.4 (AutoCPAP functionality)
Pressure Range	4–25 hPa (±0.5 hPa)
Pressure Display Accuracy	±0.5 hPa
Ramp Time	Adjustable from 0 to 60 minutes
Noise Level	≤30 dB at 10 hPa
User Connector	Ø22 mm cone joint
Filter Specification	Most penetrating particle size: 10 μm
Maximum Pressure (Patient Port)	CPAP: 20 hPa (normal), ≤30 hPa (fault) Bi-Level: 25 hPa (normal), ≤40 hPa (fault)
Dynamic Pressure Stability	See table below
Ventilatory Capacity	See flow rate table below
Humidifier Temp Range	Adjustable from 0 to 5
Humidifier Gas Temp (Max)	≤43°C
Humidifier Tank Capacity	≥240 ml
Tube Length	1.8 m ± 0.18 m, Ø22 mm
SD Card Capacity	≥8 GB, logs treatment data
Production Date	Indicated on device label
Operating Life	5 years (extendable with proper maintenance and part replacement)
Environmental Conditions	Operation: Temp: 5–35°C, Humidity: 10–93% RH (non-condensing), Pressure: 760–1060 hPa Storage/Transport: Temp: -20–60°C, Humidity: 10–93% RH (non-condensing), Pressure: 760–1060 hPa

Ventilatory Capacity Table

Testing Pressure (hPa)	Average Flow Rate (L/min)
4	80
9	90
15	90
20	70
25	70

Dynamic Pressure Stability

Pressure (hPa)	@10 BPM	@15 BPM	@20 BPM
4	±0.5	±0.55	±0.60
9	±0.80	±0.85	±0.85
15	±0.95	±0.95	±0.95
20	±0.95	±0.95	±1.0
25	±1.0	±1.0	±1.0

Download Instruction Manual

Reviews

There are no reviews yet.

Be the first to review “RespiAid AutoCPAP System”
