New

ri-magic® HPLED examination light

Brands: Riester

~~$0.00~~

Shipped From Abroad

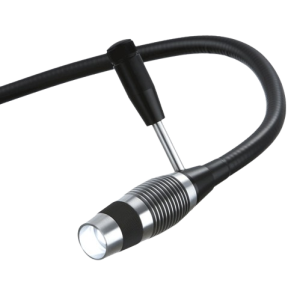

ri-magic® HPLED examination light is a high-performance examination light with the most modern LED technology, similar to daylight. The ri-magic® HPLED is equipped with a focusing device on the front of the lamp head to precisely size the illuminated examination area. Highly flexible and long special arm can be bent in any direction and used as a wall-mounted model, as a desk model with universal clamp or as a mobile lamp with a practical wheeled chassis.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Riester

Description
Reviews (0)

Description

The mobile model is supplied with a particularly steady, heavy, and anti-static stand. Two of the five castors can be locked. The wall and desk models can be quickly and easily mounted to any conventional wall rail in the clinic using universal clamps.

Details of ri-magic® HPLED

LED with a magnifying lens
Focus wheel
Cooling fins/body
ON/OFF switch – rheostat for stepless regulation of the light intensity

Features and benefits

The focusing device at the front of the light head allows exact adjustment of the size of the illuminated examination area
Highly flexible, long special arm can be bent in all directions, the light remains fixed in the chosen position
Significantly less heating and energy loss
Simple to use handle with rheostat for infinitely variable regulation of light intensity
Wide-range power cord for 230 V/120 V
Available with plugs to suit the electrical outlets in your country upon request
Power supply mounted to the pole (optional)
Available with clamp, wall mount, or mobile base

Product details

ri-magic® HPLED

Dimensions
Mobile design	Overall height with a tripod and mobile base	1.96 m
	Gooseneck length	1.10 m
	Mobile base height	0.71 m
Lamp head	Diameter	45 mm
	Length	150 mm
Lamp for ri-magic® HPLED		5700 Kelvin, CRI 93, 4.6 W
Further details	Power adapter	5 V, 3 Ah, 15 W
	Ambient temperature	0 °C to 40 °C
	Relative Humidity	30% to 70% non-condensing
	Storage/ Transport Ambient temperature	-5 °C to 50 °C
	Storage/ Transport relative Humidity	10% to 85% non-condensing

Light field
Distance	1000 mm	800 mm	600 mm	400 mm	200 mm
Lux max. ¹	25,000	35,000	60,000	130,000	>200,000
Circle of light max. Ø	500 mm	400 mm	320 mm	230 mm	130 mm
Circle of light min. Ø	80 mm	60 mm	50 mm	35 mm	20 mm

1: Brightness at maximum intensity setting, tolerance ±20%
