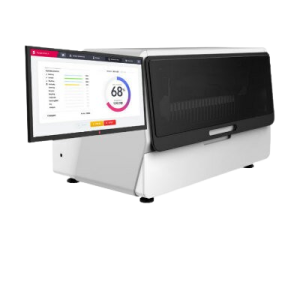

Sugentech S-Blot 3

Brands: Sugentech

~~$0.00~~

Shipped From Abroad

The Sugentech S‑Blot 3 is a robotic, fully automated immunoblot system analyzing up to 48 strips per run with ≤7% dispensing error. It includes liquid‑level detection, high‑resolution imaging, post-run auto-cleaning, and seamless LIS integration—ideal for high-volume allergy and autoimmune diagnostic workflows. Medical Onex+8

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Sugentech

Description
Reviews (0)

Description

The Sugentech S‑Blot 3 is a fully automated one-step immunoblot analyzer powered by a built-in 3‑axis robotic system. It processes up to 48 strips per run with dispensing and aspiration accuracy within 7%. Featuring liquid‑level detection, high‑sensitivity camera imaging, and proprietary multi‑band analysis algorithms, it delivers precise, reproducible results. A post-run automatic cleaning function improves maintenance. Certified by MFDS (Korea) and CE‑IVD (Europe), it’s ideal for allergy (e.g, food, inhalant, atopy) and autoimmune (e.g, ANA, myositis, vasculitis) diagnostics in high‑volume clinical settings. Its seamless LIS-ready software ensures easy integration and streamlined workflows.

Key Features

Throughput: 48 strips
Uses improved LLD (Liquid Level Detection) technology for accurate analysis
Smart – Uses improved LLD (Liquid Level
Detection) technology for accurate analysis.
Simple – Fully-automated immunoblot system with user-friendly software and LIS for easy operation.
Specialized – Optimized for use in large

hospital environments.

Specifications

Dimensions: 968 mm (W) x 616 mm (D) x 609 mm (H)
Weight: 80 kg
Power: AC 100-240V, 50/60Hz(Max. 400VA)

Reviews

There are no reviews yet.

Be the first to review “Sugentech S-Blot 3”

Quick Comparison

Sugentech S-Blot 3 remove Erma B-111 Bilirubin Meter remove IISM VPism-C (Compact Type) Vein Probe remove Skyla Hi POC Clinical Chemistry Analyzer remove AGD Erma EL-120 ELectrolyte Analyzer remove Discover 5 Panel Cup with Adulterants Per Pack remove

Name Sugentech S-Blot 3 remove Erma B-111 Bilirubin Meter remove IISM VPism-C (Compact Type) Vein Probe remove Skyla Hi POC Clinical Chemistry Analyzer remove AGD Erma EL-120 ELectrolyte Analyzer remove Discover 5 Panel Cup with Adulterants Per Pack remove


SKU SF1033560084-6 SF1033560090-1 SF1033560060-2 SF1033560084-125 SF1033560084-23

Rating

Price

~~$0.00~~

$715.00

~~$0.00~~

$1,320.00

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad The Sugentech S‑Blot 3 is a robotic, fully automated immunoblot system analyzing up to 48 strips per run with ≤7% dispensing error. It includes liquid‑level detection, high‑resolution imaging, post-run auto-cleaning, and seamless LIS integration—ideal for high-volume allergy and autoimmune diagnostic workflows. Medical Onex+8

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Aboard The advanced B111 Bilirubinmeter provides fast, accurate results for Total bilirubin level in neonates with only 40μl serum or plasma sample. It determines total bilirubin by dual wavelength photometric analysis. Suited for pediatric setups, small workload labs & hospitals because of its compact and portable design. Advanced, benchtop and precise instrument for measuring Total Bilirubin.

Delivery & Availability:

Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The iiSM VPism-C Vein Probe - Compact Unit is a compact, non-invasive infrared device to view blood vessels just beneath the skin. Includes a camera, touchscreen display, connector cable, power supply, camera stand, gooseneck arm, and instruction manual. Delivery & Availability: Typically 10 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The skyla Hi POC Clinical Chemistry Analyzer provides clinical testing laboratories of medical facilities and clinics with an in-vitro clinical chemistry diagnostic tool that is compact, portable, and reports rapid results.The use of skyla Hi in the management of diabetes enables better access to testing and rapid clinical decision making, discussion,and implementation of optimized treatment. Delivery & Availability: Typically 14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Electrolyte Analyzer ERMA EL-120 is ideal for medium to high volume Laboratories and Hospitals . It offers reliable, automated samples handling and work flow offences . It also allows measurement of specific ions, accurately and precisely . This supports fast diagnosis of critically ill patients and reduces the risks of patient discomfort associated with repeated sampling Precise & Accurate Results Economical to use Large Touchscreen Display with Graphical User Interface. Delivery & Availability: Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In stock

The Discover Cup is an all-in-one drug of abuse test cup. The strips are self-contained and the entire cup is tamper resistant. Delivery & Availability:

Typically 2 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

https://youtu.be/q5L06ZVBuxs?si=bfGiEUJkN7buFWbQ The Sugentech S‑Blot 3 is a fully automated one-step immunoblot analyzer powered by a built-in 3‑axis robotic system. It processes up to 48 strips per run with dispensing and aspiration accuracy within 7%. Featuring liquid‑level detection, high‑sensitivity camera imaging, and proprietary multi‑band analysis algorithms, it delivers precise, reproducible results. A post-run automatic cleaning function improves maintenance. Certified by MFDS (Korea) and CE‑IVD (Europe), it’s ideal for allergy (e.g, food, inhalant, atopy) and autoimmune (e.g, ANA, myositis, vasculitis) diagnostics in high‑volume clinical settings. Its seamless LIS-ready software ensures easy integration and streamlined workflows.

Key Features

Throughput: 48 strips
Uses improved LLD (Liquid Level Detection) technology for accurate analysis
Smart - Uses improved LLD (Liquid Level
Detection) technology for accurate analysis.
Simple – Fully-automated immunoblot system with user-friendly software and LIS for easy operation.
Specialized – Optimized for use in large

hospital environments.

Specifications

Dimensions: 968 mm (W) x 616 mm (D) x 609 mm (H)
Weight: 80 kg
Power: AC 100-240V, 50/60Hz(Max. 400VA)

The advanced B111 Bilirubinmeter provides fast, accurate results for Total bilirubin level in neonates with only 40μl serum or plasma sample. It determines total bilirubin by dual wavelength photometric analysis. Suited for pediatric setups, small workload labs & hospitals because of its compact and portable design. Advanced, benchtop and precise instrument for measuring Total Bilirubin. Feature

Auto zero function: Manual blanking not required
Dual wavelength measurement system:
2 wave lengths 455nm and 575nm
Plays major role to remove the interference caused due to Hemolysis & turbidity of sample
LED Light source:
LED does not require replacement as it lasts longer
As compared to Lamp, LED are more suitable as there is no intensity fluctuations
No warm up time required.
Flexible unit selection:
Two units either mg/dl or umol/L are selectable, ease of reporting
Compact slot for Capillary:
Accuracy of results are directly related to proper alignment of Capillary
B-111 has the easiest mode to ensure precise values
Data transfer:
External device can be connected to instrument through RS232 por
USB port

Technical Specification

Light source - LED
Wavelength - 455nm and 575nm
Net weight - 1kg
Measuring range - 0-30 mg/dl , 510 umol/L
Display - 16×2 LCD module with backlight
Auto calibration - Yes
Sample type - Serum or plasma
Sample volume - 40-80μL
Test time - <5sec
Units - mg/dl or umol/L
Dimensions - 150 (W) × 115 (H) × 190 (D) mm
Interface - RS232
Reading cuvette - Heparinized micro capillary holder
Storage temperature - 15-40°c
Power supply - DC 9V(DC adapter)
Power consumption - <2W

The iiSM VPism-C Vein Probe - Compact Unit is a compact, non-invasive infrared device to view blood vessels just beneath the skin. Includes a camera, touchscreen display, connector cable, power supply, camera stand, gooseneck arm, and instruction manual. This handheld, portable device is lightweight and includes the touchscreen and camera with attached clip. The camera can be removed and handled by hand, or can clip to the touchscreen unit for a hands-free experience. The back of the device also has a kickstand, so that physicians can stand the device on its own. The VPism-C can also be mounted to an armrest, if a patient needs to be stationary, or attached to a SLism-F Specialized Light Source for patients with deeper vessels. This device can be a vital tool in providing accurate placement of injections or other vascular treatments, such as for varicose veins. The infrared video shows the location of the veins and capillaries in real time, as well as save images for further discussion or diagnosis. For patients who have difficult-to-find veins, this device will save them from incorrect or painful injection sites. Features: Probe Target: Subcutaneous blood vessels of various patients (including capillaries) Probe Method: Non-invasive infrared technology Probe Depth: Within 10 mm under the skin Magnification Function: Up to 1X, 2X and 4X Automatic Adjustment Function: Adjusts the brightness automatically based on the targeted vein Specialized Light Function: Shows the veins more clearly by using the specialized light source Operation Method: Easy to operate with touchscreen Internal Battery Support: Continuous running time: 1.5 hours Warranty: 1 year

Click Here To Download Catalogue

skyla Hi Analyzer enables better access to testing and rapid clinical decision making, discussion, and implementation of optimized treatment. To get the result, only prepare <1 μl fingertips blood or venous blood (depends on test item) without pretreatment with easy steps and then read the result after 6 mins. The device allows two specimens be tested in one run and provides fully automatic procedures from checking the validity of cartridge to printing the results. Reagent Kit

HbA1C
CRP
Lipid Panel (TC,TG, HDL, LDL#)
Lipid Plus Panel (Glu,TC,TG, HDL, LDL#)

Main Specification

Principle

Turbidimetric Method / Biochemistry

Device

Testing Time

5~20 minutes (depends on test items)

Display and Interface

5″ TFT color touch screen LCD

Memory Capacity

50,000 test results

Dimension of Analyzer

270 x 188 x 148 mm

Weight of Analyzer

1.7 kg

Dimension of Printer Module

134 x 100 x 82.7 mm

Weight of Printer Module

0.37 kg

Power Supply

100~240 volts AC, 50-60Hz

Data Transmission

USB 2.0*4 / USB 3.0*1 / RS232*1 / RJ45*1 / Wi-Fi (optional)

Reagent and Samples

Samples

Fingertips blood or venous blood

Samples Volume

0.8 ~ 30 μL (depends on test item)

Storage Temperature (Reagent)

2 ~ 8˚C

Humidity

Relative humidity < 95% (Non-condensing)

Temperature

10 ~ 32 ˚C

Click Here To Download Catalogue

Parameters: Na+,K+,Cl-, iCa++ / Li
It works on ISE principle
Sample Type: Whole blood, Serum, Plasma, Urine
Low reagent consumption
Sample requirement is only 90ul
60 samples per hour
Automatic two point calibration after 4hrs and one point calibration with each sample analysis
Air bubble detection
Track reagents consumption and provides alerts
For low reagent volume
Precision testing facility to get CV and SD
Trilevel Quality Control with LJ plots of last 30days
Low aspiration volume
Fast sample processing
Accurate and Precise results

Technical Specifications:

Parameters	Na+, K+, Cl– /Ca++
Principle	Ion Selective Electrode (ISE)
Sample Type	Analyses whole blood, serum, plasma and urine
Sample Volume	≤100 µL
Analysis Time	≤60 seconds
Throughout	≤60 samples per hour
Data Link	Serial (RS232)
External Interface	USB (Keyboard, Mouse)
Operating Condition	10° C to 35° C, Relative Humidity up to 85%
Storage Condition	Temp: 10° C to 40° C
Relative Humidity	up to 85% non- condensing
Power Supply	100 to 240 VAC ±10%, 50Hz
Dimensions	395 x 260 x 375 mm
Weight	7.5 kg

Click Here To Download Catalogue

All-in-One Design

FDA 510K & CLIA Waived 99% Accurate Results in as little as 1 minute 24 Month Shelf Life from Date of Manufacture Secure, seal and send to lab for confirmation Built in temperature strip Available to test up to 14 substances Adulterants available

Weight N/A N/A N/A N/A N/A N/A
