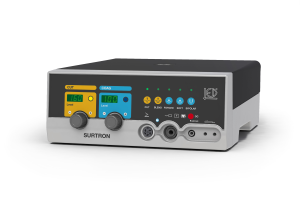

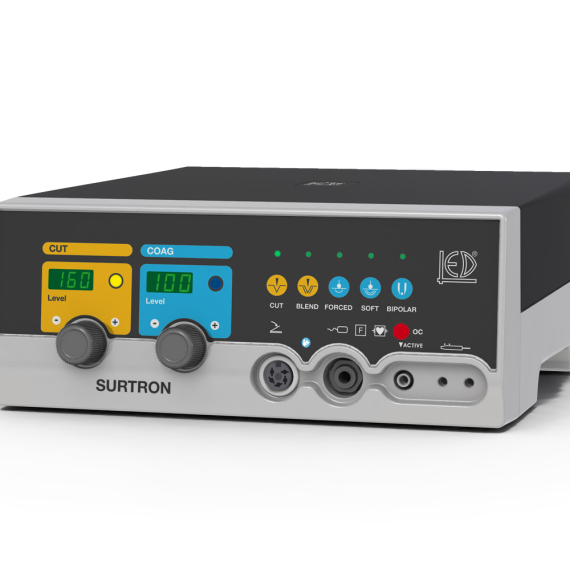

SURTRON 160

Key Features

• Operating Modes: Supports multiple modes including pure CUT, cut-coagulation BLEND, superficial coagulation (FORCED COAG), deep coagulation without necrosis (SOFT COAG), and, with a special adapter, BIPOLAR coagulation.

• Digital Interface: Equipped with a microcontroller for digital reading of delivered power and monitoring of operative functions, ensuring reliable performance.

• Safety Measures: Features patient/plate circuit monitoring, output power monitoring, and self-check control. The connection of the neutral electrode is constantly monitored, with safety control of patient/plate contact using a split neutral electrode.

• Underwater Cutting and Coagulation: Capable of performing procedures in wet environments, expanding its range of applications.

Technical Data

• Max output power CUT 160 W-250 Ω
• Max output power BLEND 120 W-200 Ω
• Max output power FORCED COAG 100W-150Ω
• Max output power SOFT COAG 80 W-100 Ω
• Max output power BIPOLAR 60 W-100 Ω
• Working frequency 600 KHz
• Patient circuit F
• Selectable input voltage 115-230 VAC
• Main frequency 50-60 Hz
• Electrical input power: 350 VA
• Size WxHxD  254x104x288 mm
• Weight 5 Kgs

• Patient/Plate circuit monitoring
• Output power monitoring
• Self-check control

• EN60601-1
• EN60601-1-2
• EN60601-2-2
• Electrical Class: I CF
• MDR 2017/745/UE Class: II b

Features

Features

• Concise and reasonable design, which is easy and convenient to operate.
• Safe and efficient for surgery, and the needle could be withdrawn fluently and accurately.
• Smooth and beautiful suture, small and micro healing scar.
• There's good compatibility with tissues and less inflammatory response.
• It's easy and convenient to take out the stitches, which will promote wound healing.
• Sterile Disposable Skin Stapler reduces the patient's pain and improves operation efficiency.

Features

• Designed with the surgeon in mind
• Slim and lightweight, tapered ergonomic design, streamlined design.
• Slip-proof handling and water resistant Rocker or Push-Button Switch
• Switch and buttons designed for smooth activation
• Equipped with a range of monopolar cutting and coagulation electrodes to satisfy all users requirements.
• With hexagonal shape to protect against inadvertent twisting, the electrodes can be locked safely into place and are easily exchanged and replaced.

Features

• Clinic result proves that higher frequency can get less tissue resists nee. 4Mhz frequency can reduces heat injury a ind carbonizing to tissue at maximum. It realizes low temperature cutting.
• The antenna pad is unnecessary for skin touch, no current goes through the body, and no possibility of burning
• No pressure cutting and the pencil is operated easily and it's full of flexibility.
• No carbonation, less bleeding, and no adhesions.
• Less pain, scarring, and fast healing after operation.

Technical Parameters

Product Details

OUTPUT MODE

• CUT - For micro-smooth cutting
• BLEND - For cutting with coagulation
• HEMO - For pure Hemostasis-Coagulation to control most forms of bleeding
• FULGURATION - For desiccation or fulgurate spark-gap
• BIPOLAR - For precise coagulation utilizing bipolar energy

INTENDED USE

• Cutting: snoring, submucosal palatal shrinkage, traditional uvulopalatoplasty (RAUP), myringotomy with effective hemorrhage control, epistaxis treatment, turbinate shrinkage, skin incisions, biopsy, cysts, abscesses, tumors, cosmetic repairs, development of skin flaps, skin tags and blepharoplasty.
• Blended (cutting and coagulation): snoring, submucosal palatal shrinkage, traditional uvulopalatoplasty (RAUP), myringotomy with effective hemorrhage control, epistaxis treatment, turbinate shrinkage, skin tags, papilloma keloids, keratosis, verrucae. basal cell carcinoma, nevi, fistulas, epithelioma, cosmetic repairs, cysts, abscesses, and development of skin flaps.
• Hemostasis: control of bleeding, epilation, telangiectasia.
• Fulguration: basal cell carcinoma, papilloma, cyst destruction, tumors, verrucae, hemostasis.
• Bipolar: pinpoint precise coagulation, pinpoint hemostasis in any field (wet or dry), snoring, submucosal palatal shrinkage, traditional uvulopalatoplasty (RAUP), myringotomy with effective hemorrhage control, epistaxis treatment and turbinate shrinkage.

Transportation Data :

• WxHxD:34(L)'23.5(W)*10.6(H) 49(L)*35.5(W)'31(H)cn Weight:8.2kg(NetWeight);12. cm(Generator) i(outer carton) 1kg(Gross Weight)
• Standard Matching Accessories
• Instruction for Use: 1pc
• Power Cord: 1pc
• Dual Pedal Switch: 1pc
• Disposable ESU Pencil: 2 pes
• Reusable Antenna Pad with cable: 1 set
• Reusable Bipolar Forceps with Cable: 1 set
• Reusable ESU pencil: 1 pc
• Reusable Fine Electrode tips (Needle, curved, Needle .Ball): 7pcs
• Disposable leep Electrode tips: 5pcs

Disposable ECG Electrodes are pre-gelled, non-sterile, single use disposable electrocardiographic electrodes which are intended for use as an accessory to ECG equipment for ECG monitoring , diagnostic procedures and can used for stress test & holter.

1. Clean the skin area where the electrode will stick on. Make sure the skin area for sticking is intact (uninjured). 2. Connect the leadwire with the electrode. Make sure it is fastened and in good contact. 3. Tear off the release film from the bottom (the part away from metal stud) of electrode. 4. Press lightly when stick the electrodes to the skin and make sure the conductive gel and adhesive backing stick on the skin tightly. Caution

• Don’t peel the release film from the metal stud of the electrode. It may break the structure and affect the function of electrodes.
• ECG electrodes should only be used by or in consultation with a healthcare provider familiar with their proper placement and use.
• ECG electrodes may damage the skin if removed carelessly.
• ECG electrodes should be applied only to intact, clean skin (e.g., not over open wounds, lesions, or infected, or inflamed areas).
• Do not reuse this device. It may cause infection and affect the performance of the reuse of this device.
