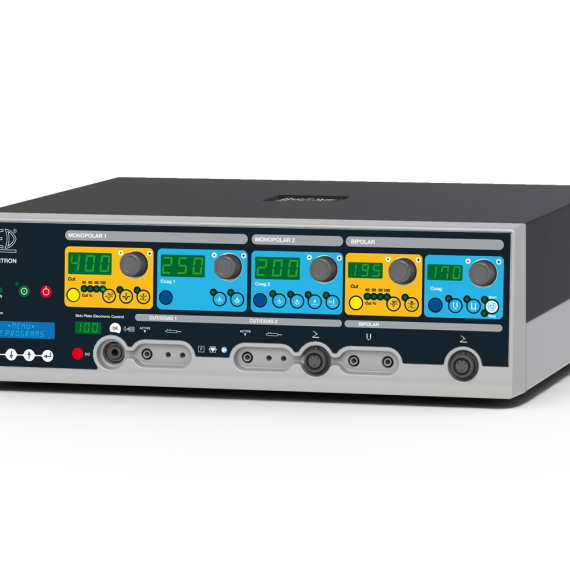

SURTRON 400 HP

Features

Technical Data

• Max output power monopolar pure CUT 400 W – 300 Ω
• Max output power monopolar cut-coag CUT80% 300 W – 300 Ω
• Max output power monopolar cut-coag CUT60% 250 W – 300 Ω
• Max output power monopolar cut-coag CUT40% 200 W – 300 Ω
• Max output power monopolar cut ENHANCED 250 W – 500 Ω
• Max output power monopolar cut-coag BLEND 250 W – 300 Ω
• Max output power monopolar coag SPEEDY 120 W – 500 Ω
• Max output power monopolar coag DEEP 120 W – 200 Ω
• Max output power monopolar coag SPRAY 100 W – 2000 Ω
• Max output power monopolar coag SPRAY ARGON 100 W – 2000 Ω
• Max output power of bipolar CUT 120 W – 50 Ω
• Max output power bipolar cut-coag CUT80% 120 W – 50 Ω
• Max output power bipolar cut-coag CUT60% 120 W – 50 Ω
• Max output power bipolar cut-coag CUT40% 100 W – 50 Ω
• Max output power bipolar cut-coag BLEND 120 W – 150 Ω
• Max output power bipolar coag COAG 120 W – 50 Ω
• Vessel sealing 200 W – 50 Ω
• Working frequency Monopolar / Bipolar 425 kHz / 525 kHz
• Patient circuit F
• Selectable input voltage 115 – 230 Vac
• Mains frequency 50 – 60 Hz
• Electrical input power 1000 VA
• Size WxHxD 470x150x400 mm
• Weight 17,5 Kgs

• Patient/Plate circuit monitoring
• Output power monitoring
• Self-check control
• H.F. Leakage currents control
• Compensation for mains fluctuation

• EN60601-1
• EN60601-1-2
• EN60601-2-2
• Level of protection provided by housing: IP21

Features

• Power: It offers cutting power up to 350W and coagulating power up to 150W.
• Frequency: Operates at 417 kHz.
• Applications: Suitable for general surgery, vascular surgery, hepatobiliary and pancreatic surgery, cardiothoracic surgery, gastroenterology, TURP (Transurethral Resection of the Prostate), TUVP (Transurethral Vaporization of the Prostate), and compatible with cystoscopy, arthroscopy, laparoscopy, and hysteroscopy.
• Modes: It has 8 different working modes including pure cut, blend, coagulation, and bipolar vessel sealing.
• Display: Features a 7-segment LED display for easy monitoring.
• Presets: Comes with 10 saved presets for quick access
• Monopolar and Bipolar Modes: This device supports both monopolar and bipolar modes, offering flexibility for various surgical needs.
• User-friendly Interface: The intuitive LCD display provides real-time feedback and easy control settings, enhancing the precision and efficiency of surgical procedures.
• Safety Features: It includes automatic self-checking systems and alarms for safety, ensuring reliable performance during operations.
• Memory Function: You can save and recall up to 10 presets, allowing for quick setup and operation tailored to specific surgical requirements.
• Efficient Smoke Evacuation: Integrated smoke evacuation system helps maintain a clear surgical field and improves visibility.

Technical Specifications

• Cutting Power: Up to 350W
• Coagulating Power: Up to 150W
• Frequency: 417 kHz
• Power Supply: AC 100-240V, 50/60Hz
• Dimensions: 380mm x 280mm x 120mm
• Weight: Approximately 6kg

Applications

• General Surgery: Versatile for cutting and coagulating tissue.
• Vascular Surgery: Precise control for delicate procedures.
• Laparoscopy: Compatible with minimally invasive surgical techniques.
• Hysteroscopy: Suitable for gynecological procedures.

Key Features

Technical parameters:

Features:

1. High Conductivity: They are made from materials that ensure efficient conduction of electrical current.
2. Large Surface Area: This helps in dispersing the current over a wide area, reducing the risk of burns.
3. Adhesive Backing: They usually have an adhesive side to securely attach to the patient's skin.
4. Flexible Design: They are designed to conform to the contours of the patient's body.
5. Safety Mechanisms: Modern pads often include features like dual-pad return electrodes for fail-safe operation.

Uses:

1. Completing the Electrical Circuit: They act as a return path for the electrical current used in electrosurgery.
2. Minimizing Burns: By dispersing the current, they help prevent burns at the surgical site.
3. Ensuring Patient Safety: They are crucial for the safe operation of electrosurgical units, especially in patients with electronic implants like pacemakers.
4. Versatile Applications: Used in various surgical procedures, including cutting, coagulating, and desiccating tissue.

Features

• Concise and reasonable design, which is easy and convenient to operate.
• Safe and efficient for surgery, and the needle could be withdrawn fluently and accurately.
• Smooth and beautiful suture, small and micro healing scar.
• There's good compatibility with tissues and less inflammatory response.
• It's easy and convenient to take out the stitches, which will promote wound healing.
• Sterile Disposable Skin Stapler reduces the patient's pain and improves operation efficiency.

Features

1. Intended for ablation,tissue modification, and coagulation of soft tissue in arthroscopic procedures such as hip,  shoulder, ankle, wrist, elbow, and knee. 2. The Extending shaft enables good visualization and easy insertion through subcutaneous tissue,and  well insulated coating guarantee its safety and reliability. 3.Irrigation/suction solution is available with a cannula and an adjustable flow control valve. 4. Tips in different shapes and angles fit in particular arthroscopic procedures. 5. Compatible with most electrosurgical generators.

Use Indication

This device should never be used when:

• There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.
• These devices fail the inspection described herein.
• In the presence of flammable gases, flammable prep solutions or drapes. Oxidizing. Gases such as Nitrous Oxide (N2O), or in oxygen-riched environments.
• Do not use monopolar electrosurgery on small appendages, as in circumcision or finger surgery.
