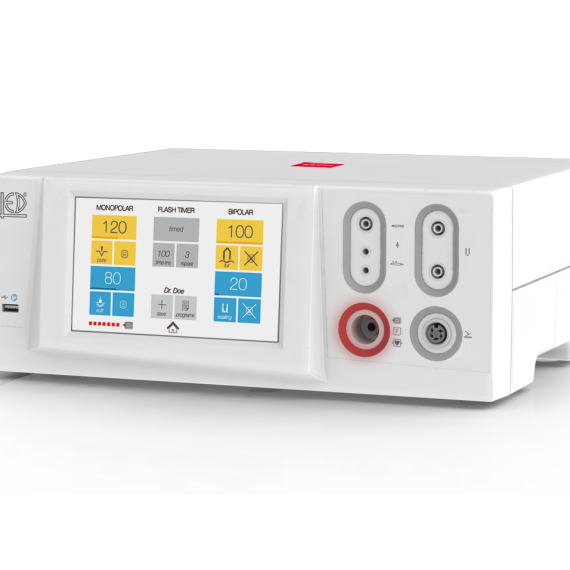

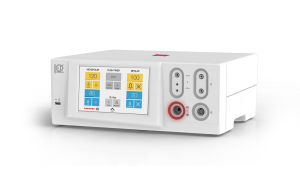

SURTRON TOUCH 200

Technical data

• Max power PURE CUT 200 W – 300 Ω
• Max power BLEND CUT 150 W – 200 Ω
• Max power ENHANCED CUT 150 W – 300 Ω
• Max power BIPOLAR TUR 200 W – 200 Ω
• Max power BIPOLAR CUT 120 W – 50 Ω
• Max power FORCED COAG 150 W – 200 Ω
• Max power SOFT COAG 100 W – 200 Ω
• Max power FULGURATION COAG 100 W – 1000 Ω
• Potenza max BIPOLAR COAG 120 W – 50 Ω
• Max power BIPOLAR SEALING 200 W – 50 Ω
• Working frequency 360 kHz
• RF power pulse emission time 10ms-30sec
• RF power pulse interval 1-30
• Patient circuit F
• Selectable input voltage 100-240 VAC
• Mains Frequency 50-60 Hz
• Electrical input power: 750 VA
• Size WxHxD 370x144x319 mm
• Weight 6 kg

• Standard Lead Wires: These are the basic cables that come with most electrotherapy units.
• Bifurcation Cables: These cables allow you to connect multiple electrodes to a single channel, effectively doubling the number of electrodes you can use.
• Extended Length Cables: These are longer cables that provide more flexibility in positioning the electrodes.

Disposable ECG Electrodes are pre-gelled, non-sterile, single use disposable electrocardiographic electrodes which are intended for use as an accessory to ECG equipment for ECG monitoring , diagnostic procedures and can used for stress test & holter.

1. Clean the skin area where the electrode will stick on. Make sure the skin area for sticking is intact (uninjured). 2. Connect the leadwire with the electrode. Make sure it is fastened and in good contact. 3. Tear off the release film from the bottom (the part away from metal stud) of electrode. 4. Press lightly when stick the electrodes to the skin and make sure the conductive gel and adhesive backing stick on the skin tightly. Caution

• Don’t peel the release film from the metal stud of the electrode. It may break the structure and affect the function of electrodes.
• ECG electrodes should only be used by or in consultation with a healthcare provider familiar with their proper placement and use.
• ECG electrodes may damage the skin if removed carelessly.
• ECG electrodes should be applied only to intact, clean skin (e.g., not over open wounds, lesions, or infected, or inflamed areas).
• Do not reuse this device. It may cause infection and affect the performance of the reuse of this device.

• Power output can be controlled by the easy to use power adjustment button on the electrosurgical hand pencil which can shorten the operation time.
• With the inbuilt memory function on the device, you can set the required function parameters then power off the unit, next time the unit is powered on, the unit the last set parameter will be displayed.
• Output power of between 10 and 30 watts or less can be adjusted up and down by 0.1-watt increments, which is suitable for various delicate procedures.
• It can be used with disposable dispersive electrode

• x1 OBS-50 High-Frequency Electric Coagulator Unit
• x1 Reusable power control electrosurgical pencil
• x10 Non-Sterile Single-Use Short Sharp Tips
• x10 Non-Sterile Single-Use Short Blunt Tips
• x1 Power cord
• x1 Instruction manual

Multiple Applications to meet your different clinic demands

• Monopolar output mode without using the dispersive electrode
• Contact or insert into the tissue with the electrode
• The unit produces a high-frequency current, which runs through the patient via the electrode and then returns to the unit through grounding.
• High-frequency current vaporises the liquid inside the tissue cell therefore causing denaturation on the protein

• Another monopoly output mode without using a dispersive electrode
• Holding the electrode above the lesions rather than contact directly, will release an electric arc to the tissue.
• Range of action in this mode is limited to the surface where the arc contacts the tissue

• Suitable for hemostasis and shrinkage of tissue
• Used in control of hemostasis
• Suitable for more difficult cutting procedures for good hemostasis

• Monopolar output mode using the dispersive electrode
• Under this mode, the high-frequency current that is produced from the unit flows through the patient and then returns to the unit via a dispersive electrode
• The dispense electrode can draw more high-frequency current to the electrode, making the tip of electrode produce a more powerful desiccation to the tissue.

• An Output mode in which the high-frequency current circulates between two nearby electrodes (bipolar forceps), without using the dispersive electrode.
• In contrast to the effect of monopolar coagulation, since the high-frequency current is only circulated separately in the forceps, the bipolar coagulation effect acts only on the tissue surface, causing minimal damage to the tissue.

• Single foot switch
• Reusable power control electrosurgical pencil
• Reusable dispersive electrode (Patient Plate) & Cable
• Reusable bipolar forceps & cable
• Reusable Connecting Cable (for disposable dispersive electrode)
• Disposable dispersive electrodes
• Wall mounting Plate

Features:

1. Material: Made from medical-grade silicone, which is durable and flexible.
2. Reusable: Can be used multiple times after proper sterilization, making it cost-effective.
3. Adhesive Backing: Comes with an adhesive side to securely attach to the patient's skin.
4. Large Surface Area: Designed to disperse electrical current over a wide area to minimize the risk of burns.
5. Connectors: Typically equipped with connectors like REM or banana connectors for easy attachment to electrosurgical units.

Uses:

1. Electrosurgical Procedures: Used in various surgical procedures, including cutting, coagulating, and desiccating tissue.
2. Patient Safety: Ensures safe operation of electrosurgical units by dispersing the electrical current away from the patient's body.
3. Versatility: Suitable for different types of surgeries, from open surgeries to laparoscopic procedures.
