SURTRON TOUCH HP
$0.00
Shipped From Abroad

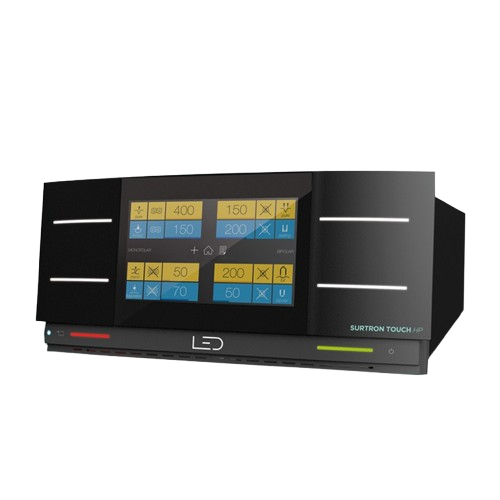

The SURTRON TOUCH HP is a high-frequency electrosurgical unit developed by LED SpA, designed for advanced monopolar and bipolar surgical procedures. It integrates ergonomic design with cutting-edge technology to enhance surgical precision and safety.starkmed.com.au+6
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description

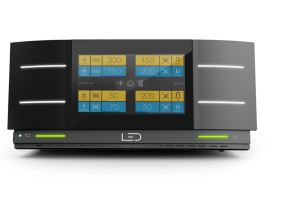

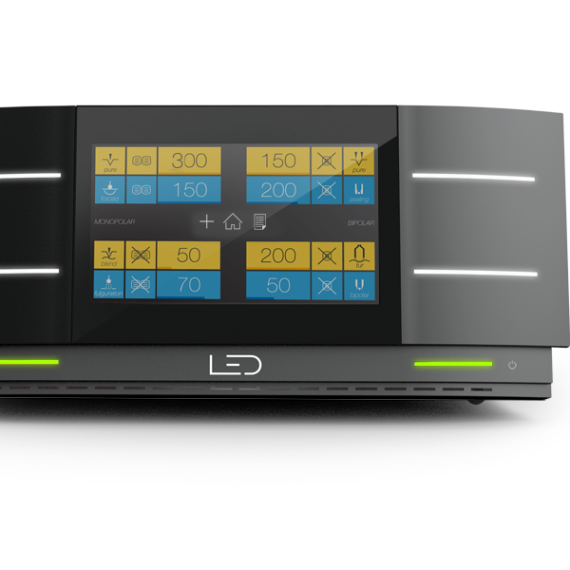

The Surtron Touch HP is one of the most advanced diathermy units from Led Spa; it comes with a 9-inch capacitive touch screen. The major objective behind developing this machine is to provide a simple, functional, and intuitive work experience. With a simple touch of the finger over the screen, healthcare professionals can customise the work setting. The diathermy machine can also change the power of Cut or Coag.
There are two monopolar outputs and two bipolar outputs, meaning that two surgeons can operate simultaneously. The vessel sealing can be done up to 7 mm. Wider monopolar and bipolar features are available. It has preset protocols, and new programs can be created. An inbuilt argon circuit is suitable for endoscopy and liver surgeries.
An open, minimal invasive/ laparoscopic procedure can be performed. It comes with the feature of Auto start and stop feature. In auto mode, bipolar can be used without connecting to the footswitch. Bipolar Micro coagulation is available in neuro and microsurgeries where there is a need for minimal power. The product is CE quality approved.
Features
- Simultaneous activation of Monopolar and Bipolar
- Contemporary dual monopolar
- Contemporary dual bipolar
- Integrated ARGON unit
- Power control depending on impedance
- Activating power with pedal and/or handpiece
- Neutral-patient electrode contact control
- Cutting function under saline solution TUR
- Modular cut in wet conditions BLEND
- VESSEL SEALING to clamp vessels up to 7 mm
- Possibility of use for minimally invasive surgery
- Monopolar / Bipolar functions
- Autostart / Autostop in Bipolar modality
- Adjusting the intensity of the sound
Technical Specifications
| Function | Maximum Output Power |
|---|---|
| Monopolar CUT (PURE) | 400 W at 300 Ω |
| Monopolar CUT (ENHANCED) | 250 W at 300 Ω |
| Monopolar CUT-COAG (BLEND) | 250 W at 200 Ω |
| Monopolar CUT (TUR) | 300 W at 300 Ω |
| Monopolar COAG (FORCED) | 150 W at 150 Ω |
| Monopolar COAG (SOFT) | 150 W at 200 Ω |
| Monopolar COAG (FULGURATION) | 100 W at 500 Ω |
| Monopolar COAG (SPRAY) | 120 W at 1000 Ω |
| Bipolar CUT (PURE) | 150 W at 100 Ω |
| Bipolar COAG (STANDARD) | 150 W at 50 Ω |
| Bipolar COAG (SEALING) | 250 W at 50 Ω |
| Working Frequency | 360 kHz |
| ARGON Flow Regulation | 0.2 – 10 LPM |
| ARGON Maximum Inlet Pressure | 3.0 bar (43.5 psi) |
| Input Voltage | 100 – 240 Vac |
| Mains Frequency | 50 / 60 Hz |
| Electrical Input Power | 1000 VA |
| Dimensions (WxHxD) | 470 x 220 x 460 mm |
| Weight | 13.5 kg |
