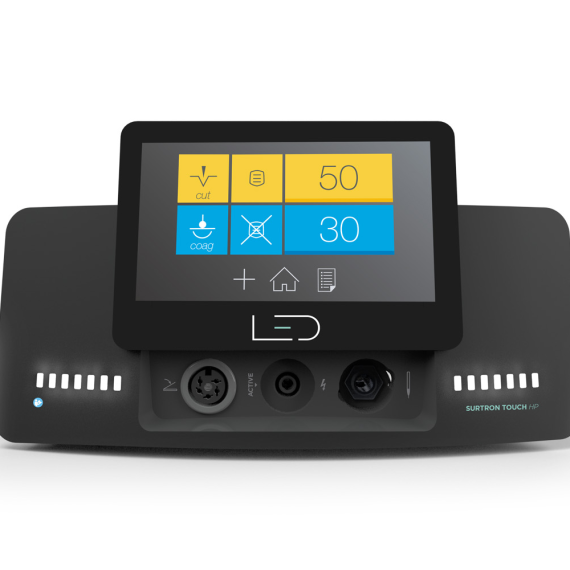

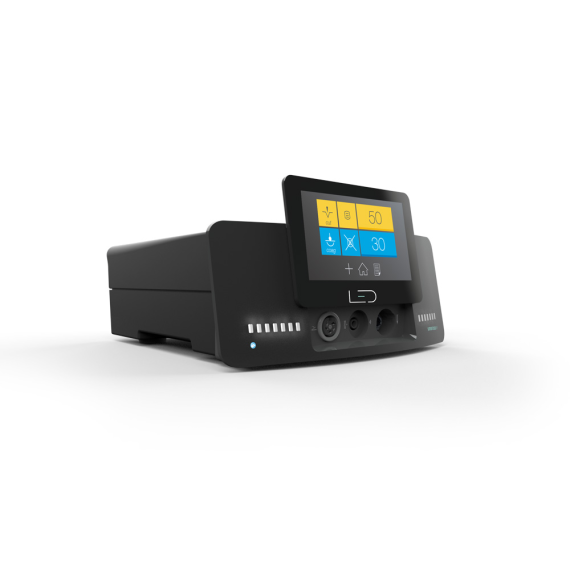

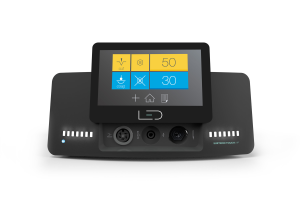

SURTRON TOUCH HP 50D

Features

• Large touchscreen display for easy navigation and setup
• Quick and intuitive controls to minimize the need to navigate through complex menus
• Ability to adjust settings during surgery without diverting attention from the surgical field

• High 50W power for maximum efficiency and precise cutting
• Ability to set different modes for CUT, COAG, and COAG2 for a wide range of surgical procedures
• Precise control of depth and width of coagulation for minimal damage to surrounding tissues

• Advanced safety features to protect the patient and surgeon
• Self-diagnostic system to ensure trouble-free operation
• I CF classification and MDR 2017/745/EU Class: II b for the highest safety standards

• Compact and ergonomic design for maximum comfort during surgery
• Lightweight for easy maneuverability
• Can be used without the need for special training

Technical Data

• Max output power CUT 50 W – 400 Ω
• Max output power CUT 1 45 W – 400 Ω
• Max output power CUT 2 40 W – 400 Ω
• Max output power COAG 40 W – 400 Ω
• Working frequency 600 kHz
• Patient circuit F
• Selectable input voltage 100/240 VAC
• Main frequency 50-60 Hz
• Electrical input power: 200 VA
• Size WxHxD 190x85x239 mm
• Weight 2,5 Kgs

Controls

• Output power monitoring
• Self-check control

Safety

• EN60601-1
• EN60601-1-2
• EN60601-2-2
• Electrical Class: I CF
• MDR 2017/745/UE Class: II b
