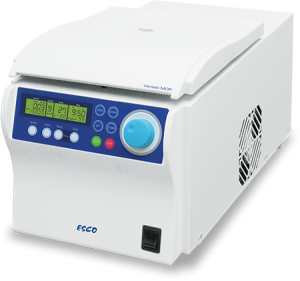

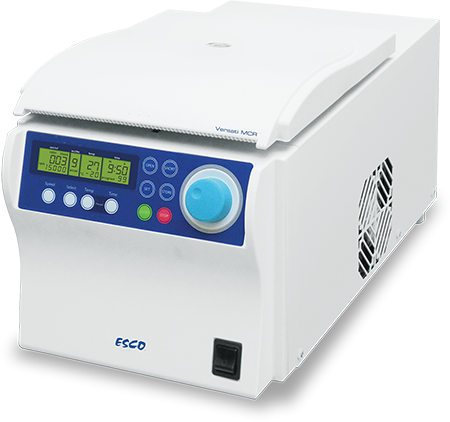

Versati™ Micro Refrigerated Centrifuge

$0.00

Shipped From Abroad

The Versati™ MCR‑88 refrigerated micro centrifuge spins up to 15,000 rpm at –20 °C to 40 °C, featuring brushless motor, imbalance protection, antimicrobial coating, and intuitive programmable controls.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Brands:: Esco Medical

Description

A refrigerated centrifuge is a laboratory equipment used for the separation of microliter temperature-sensitive heterogeneous mixtures or samples. This device works by spinning the samples loaded in a rotor at high speed. It undergoes a centrifugation process, which involves the use of centrifugal force for the separation of particles or macromolecules.

Separation of temperature-sensitive heterogeneous mixtures is now easier, safer, and high-yielding with the Versati™ Micro Refrigerated Centrifuge (MCR). This is the equivalent refrigerated model of Versati™ Micro Ventilated Centrifuge (MCV). It also has a maximum speed of 15,000 rpm (21,380 x g), a maximum volume capacity of 44 x 1.5/ 2.0 ml.

Esco Versati™ centrifuges’ compact design saves space in your lab, and their low noise performance is preferred in any working area. The refrigerated model’s powerful refrigeration system has a temperature range of -20°C to 40°C.

Micro tubes (from 1.5ml to 5ml) are used in micro centrifuges for the following applications:

  • Sample pelleting
  • Sedimentation
  • Preparation
  • Purification
Features

Intelligent Versati™ Microprocessor Control System

  • Big rotary knob and buttons— convenient for rotation and operation.
  • Large LCD screen with clear indication of running condition

Genuine-Protec™ Safety Lid Design

  • Provides a real safe protection

V-balance™ Weight Imbalance Protection

  • Automatic imbalance recognition

Emergency Switch

  • Manual opening of the lid in case of power failure

Maintenance-free Brushless Motor

  • German-originated motor— requiring neither bearing replacement nor oil change

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure
Specifications
Feature Specification
Model Versati™ MCR‑88‑8 / MCR‑88‑9 (230 VAC / 120 VAC)
Max Speed 15,000 rpm (~21,380 × g)
Temperature Range –20 °C to +40 °C (1 °C increments)
Cooling System CFC‑free compressor; rapid precooling with pre‑cool function
Rotor Capacity Up to 44 × 1.5/2.0 ml tubes; various fixed-angle rotor options
Rotor Types Supported Microtube and hematocrit rotors
Speed Control Adjustable from 200 to 15,000 rpm in 100 rpm steps
Time Setting 1 min to 99 hr 59 min 10 sec (with continuous run option)
Program Memory Stores up to 99 user-defined protocols
Motor Type Maintenance-free brushless DC motor
Safety Features Genuine‑Protec™ lid lock, V‑balance™ auto imbalance detection, emergency lid release
Construction Galvanized steel body; antimicrobial Isocide™ powder coating
Dimensions (W × D × H) 280 × 605 × 304 mm
Weight ~31 kg (68 lb)
Power Requirement 230 V or 120 V AC, 50/60 Hz (~520 W)
Noise Level ≤ 60 dBA (depending on rotor and speed)
Applications Ideal for DNA/RNA extraction, protein prep, temperature-sensitive micro-volume samples



Download Catalogue
