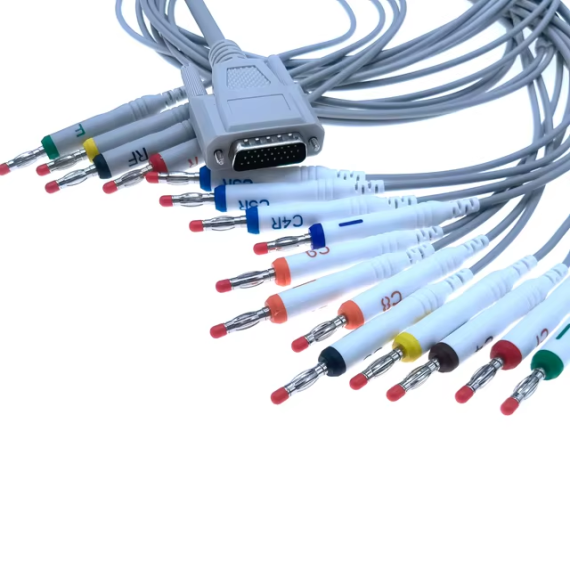

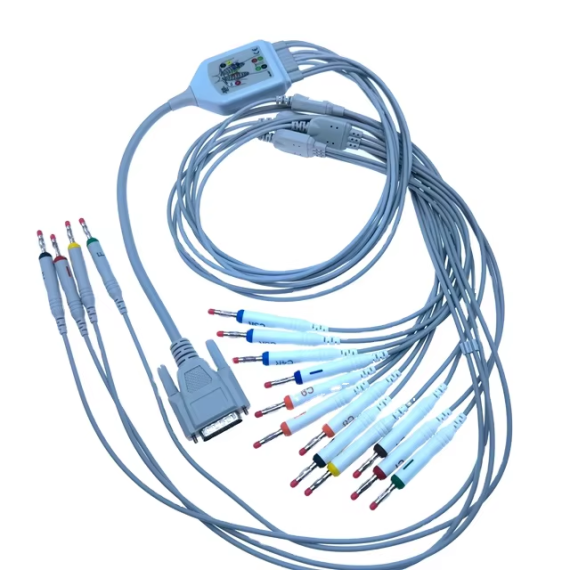

Zoncare IMAC 1800 Compatible 16/18 Lead EKG Cable

The Zoncare IMAC 1800 Compatible 16/18-Lead EKG Cable is designed to deliver high-quality, accurate electrocardiographic signals for clinical and diagnostic applications. Specifically engineered for compatibility with Zoncare IMAC 1800 and IMAC 1800Pro systems, this multi-lead ECG cable features a 26-pin connector and Banana 4.0 mm electrode terminals. Its durable TPU jacket offers superior flexibility, chemical resistance, and easy cleaning, making it ideal for repeated use in busy hospital environments. Available with AHA or IEC color-coded leads, this cable accommodates both adult and pediatric patients. The 16 or 18-lead configuration allows comprehensive cardiac monitoring during stress tests, resting ECGs, and routine exams. CE and ISO 13485 certified, this cable ensures medical-grade safety and performance. It comes individually packaged to maintain hygiene and is backed by a standard 6-month warranty. This cable offers a cost-effective, reusable solution for clinics seeking reliability and efficiency in ECG diagnostics.

Key Features

• Compatible with Zoncare IMAC 1800 and IMAC 1800Pro

• 16 or 18 leads for advanced cardiac diagnostics

• 26-pin connector and Banana 4.0 mm electrode terminals

• TPU cable jacket: flexible, durable, and easy to clean

• AHA or IEC color-coded leads

• Suitable for adult and pediatric use

• CE and ISO 13485 certified

• Individually packaged and reusable

• OEM/ODM options available

Technical Specifications

• Simultaneous registration and observation of ECG signal from all 12 leads on PC screen,
• Automatic measurement of HR, ST level and slope,
• Printing and archiving examination report which contains: patient's data, the full disclosure ECG of the whole recording, selected strips, average P-QRS-T complexes, table summary, load value, HR, ST level and slope,
• RAMP protocol
• PMHR control
• Digital filtration of mains disturbances
• Digital filtration of muscle origin disturbances
• Resting examination: 12, 6 or 3-channel in manual or automatic mode
• Automatic regulation of isoelectric line position in the middle of registration channel
• Automatic elimination of isoelectric line migration

• excellent quality of ECG waveforms thanks to the use of digital filters eliminating the swimming of the isoelectric line and disruption of muscle origin,
• uninterrupted recording and presentation of 12-lead ECG signal, presentation of averaged P-QRS-T units with 12 leads along with the results of ST level and slope measurements,
• automatic HR measurement, ST level and ST segment slope,

• automatic control of cycloergometer and treadmill load,
• archiving and printing of the research report,
• automatic determination of measuring points with the possibility of manual correction,
• automatic arrhythmia analysis,
• presentation of parameters regarding: test phase, current load, stage time and total effort time,
• monitored parameters: rhythm rate, MET, double product, blood pressure, level, ST segment slope and load,
• real-time ECG printout,
• preview of trends of all measured parameters during the test,
• alarm system for monitored parameters and arrhythmia,
• an option to automatically measure blood pressure,
• archiving and printing a report enabling a reliable assessment of the study (such an report contains ECG, average P-QRS-T assemblies and a table with measurement results),
• standard test protocols and the ability to define your own protocols also in RAMP mode,
• preview the report on the screen before printing the report,
• function of reanalysis of the performed test,
• presentation of 3D trends illustrating ST segment changes.

Click Here To Download Catalogue

• 3" color touch screen
• Standard Confirgurations: SpO2 and Pulse
• Optioal NIBP and Masimo SpO2
• Short/long trend graphic/trend table display
• Audio and visual alarm, adjustable alarm limit
• Automatic brightness adjustment
• Accurate SpO2 reading during motion or low perfusion
• Perfusion index data / bar graphic display
• Pitch tone variation for pulse rate
• Internal memory for data storage
• SD card for easy software upgrade
• Over 8 hours of operation with the re-chargeable li-ion battery
• PC software for data review and analysis on a computer

Click Here To Download Catalogue

• dimensions: 220x153x55 mm (LxWxH)
• weight: < 0,6 kg
• recording of standard 12 ECG leads
• saving the ECG signal simultaneously from all the 12 leads during the automatic recording, together with the date and time of the examination, filter settings, examination recording time and, optionally, patient's data, in the internal memory
• printout of the automatic ECG recording from internal memory, in groups of three leads
• printout of the analysis, interpretation of automatic ECG examination
• display of 1, 3, 6 or 12 lead ECG recordings
• ECG printout in 1-, 3-, 6- or 12-channel modes
• attaching the name of the patient to the ECG printout
• LCD TFT (4,3", 480x282) touch screen
• membrane alphanumeric keyboard with functional keys
• graphical menu displayed on the screen for easy operation using keyboard
• automatic analysis and interpretation in compliance with EN 60601-2-25 (CSE database) - interpretation dependable on age & sex of a patient
• memory of the last automatic examinations, with a limit from 5 to 1000
• up to 130 automatic examinations in battery mode
• continuous heart rate (HR) measurement and display
• automatic detection of QRS complex
• adapted to direct operation on an open heart
• power line interference filter: 50 Hz, 60 Hz
• muscle interference filter; filters available: 25 Hz, 35 Hz, 45 Hz
• contour line filters; filters available: 0.15 Hz, 0.45 Hz, 0.75 Hz, 1.5 Hz
• detection of electrode detachment, independent for each channel
• selectable channel to detect heart rate
• thickness of the printing ECG waveforms line to choose from: normal or bold
• presentation of the curves in the standard layout or Cabrera layout
• multilingual menu
• external USB communication port to connect a PC and the CardioTEKA software, for real-time transmission of ECG signal
• acoustic signalling of detected beats
• protection against defibrillation pulse
• detection and presentation of stimulating pulses on printout
• automatic examination with the printout of patient data and clinic data
• battery power saving functions

• clamp electrodes (set of 4)
• chest electrodes (set of 6)
• KEKG-30R ECG cable
• medical power connector M12-15
• ECG paper RB1 58 mm wide (1 roll)
• ECG gel
• operation manual

Click Here To Catalogue Download

• fully compatible with Microsoft Windows environment
• unbeatable tool for alternative placement of electrodes
• independent analysis of the ST segment in all recorded channels, the positioning of all measurement points is user-reconfigurable and may depend on heart rate
• simultaneous arrhythmia detection in all three channels
• automatic signal calibration independent in all channels assures the use of all dynamic range available
• detection, reviewing and editing capability in the qualitative assessment of VE, VT, Single SVE, PSVT, Pauses, Irregular Rhythm, VT, IVR, Brady - and Tachycardia, Couplets, ST-segment elevation and depression, Maximum, Minimum and averaged Heart Rates, artifacts
• validation tool for beat classification making the correction easy and effective
• tabular hourly summaries all quantitative results
• printing of all recorded ECG signal available

• 12-channel digital registration of the ECG signal
• 10-lead patient cable
• registration time: 48 hours or 7 days on SD card
• built-in the real time clock
• EVENT button
• pacemaker detection
• dimensions: 72x76x23 mm

Click Here To Download Catalogue

• dimensions: 220x153x55 mm (L x W x H)
• weight: < 0,6 kg
• recording of standard 12 ECG lead
• saving the ECG signal simultaneously from all the 12 leads during the automatic recording, together with the date and time of the examination, filter settings, examination recording time and, optionally, patient's data, in the internal memory
• printout of the automatic ECG recording from internal memory, in groups of three leads
• printout of the analysis, interpretation of automatic ECG examination
• display of 1, 3, 6 or 12 lead ECG recordings
• printout of 1 or 3 lead ECG of selected group:
• attaching the name of the patient to the ECG printout
• ECG printout in 1- or 3-channel modes
• membrane alphanumeric keyboard with functional keys
• graphical menu displayed on the screen for easy operation using keyboard
• automatic analysis and interpretation in compliance with EN 60601-2-25 (CSE database) - interpretation dependable on age & sex of a patient
• memory of the last automatic examinations, with a limit from 5 to 1000
• up to 130 automatic examinations in battery mode
• continuous heart rate (HR) measurement and display
• automatic detection of QRS complex
• adapted to direct operation on an open heart
• power line interference filter: 50 Hz, 60 Hz
• muscle interference filter; filters available: 25 Hz, 35 Hz, 45 Hz
• contour line filters; filters available: 0.15 Hz, 0.45 Hz, 0.75 Hz, 1.5 Hz
• detection of electrode detachment, independent for each channel
• selectable channel to detect heart rate
• the thickness of the printing ECG waveforms line to choose from: normal or bold
• presentation of the curves in the standard layout or Cabrera layout
• multilingual menu
• external USB communication port to connect a PC and the CardioTEKA software, for real-time transmission of ECG signal
• acoustic signalling of detected beats
• protection against defibrillation pulse
• detection and presentation of stimulating pulses on printout
• automatic examination with the printout of patient data and clinic data
• battery power saving functions

• limb electrodes, 4 pieces
• chest electrodes, 6 piece
• KEKG-30R ECG cable
• medical power connector, M12-15
• RB1 paper 58 mm wide (1 roll)
• ECG gel
• operation manual
