| Description | Shipped From Abroad

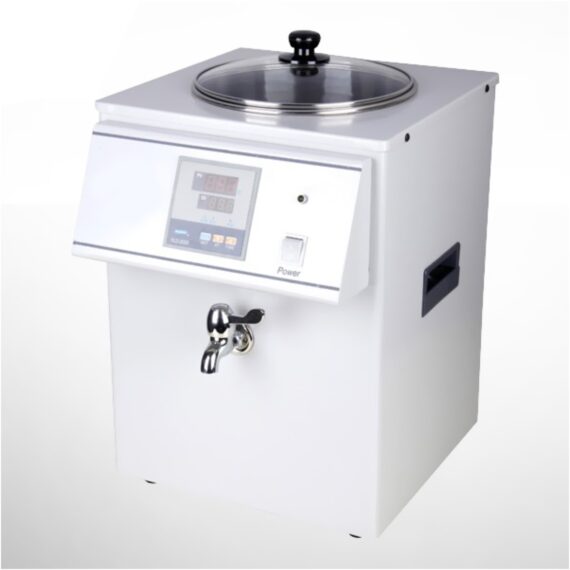

High-quality Paraffin Dispenser with keyboard control, microcomputer automatic memory and Digital shows
Delivery & Availability:
Typically 14-21 Working Days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
| Shipped from Abroad
Advanced routine laboratory microscope for brightfield and phase contrast observations with IOS W-PLAN objectives and rackless stage. Ideal for Asbestos analysis in accordance to international rules with 12.5x eyepieces and Walton & Becket graticule to perform perfect asbestos fibers analysis at a glance. The high-efficiency X-LED3 makes it reliable for all transmitted light observations.
Delivery & Availability:
Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | Shipped from Abroad
SFX Series is the new line of OPTIKA stereomicroscopes designed for extreme simplicity and incorporating the most wanted features in a first experience microscope, revealing a completely new and wonderful hidden world with three-dimensional image of any subject put underneath it.
Delivery & Availability:
Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | Shipped From Abroad
The fully automated Leica RM2255 microtome embodies the latest technological innovations in microtomy and perfectly harmonizes practical features with an ergonomic design and user safety. Its two-in-one design concept, which allows motorized as well as manual sectioning, provides reproducible, quality sections.
Delivery & Availability:
Typically 5-7 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | Shipped from Abroad
Trinocular gemological stereomicroscopes for brightfield and darkfield applications with special side-emitting LED illumination ring for true darkfield illumination. Equipped also with an incident LED flexible arm and a diffusive LED disc for transmitted illumination. The instrument can be easily tilted horizontally for immersion analysis.
Delivery & Availability:
Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. | Shipped from Abroad
Phase contrast, darkfield and brightfield binocular microscope with W-PLAN objectives, rackless stage and combining the exclusive X-LED3 with ALC (Automatic Light Control) for great-looking, rich and highquality view.
Delivery & Availability:
Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information. |
| Content | High-quality Paraffin Dispenser with keyboard control, microcomputer automatic memory and Digital shows.
Features of KEDEE KD-BMR Paraffin Dispenser:
◆Utilizes full computer automated control and intelligent digital temperature control.
◆Utilizes new type of heating elements that enable fast, energy efficient and reliable heating.
◆Temperature sensors are made in USA, precise and reliable.
◆Automatically saves the latest operation settings.
◆Memory and automatic restoration function enables the pre-set temperature to be automatically saved after device operation.
◆LED displays the heating status
Technical Specifications:
◆Temperature Range: Continuously adjustable within 0 - 100℃
◆Temperature control precision: ±1℃
◆Capacity: 10000 ml
◆Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
◆Power: 1200W
◆Dimensions: 355×410×540mm (W×D×H)
◆Net weight: 16kg | Advanced routine laboratory microscope for brightfield and phase contrast observations with IOS W-PLAN objectives and rackless stage. Ideal for Asbestos analysis in accordance to international rules with 12.5x eyepieces and Walton & Becket graticule to perform perfect asbestos fibers analysis at a glance. The high-efficiency X-LED3 makes it reliable for all transmitted light observations.
Features:
- Observation mode: Brightfield, phase contrast.
- Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
- Interpupillary distance: Adjustable between 50 and 75 mm.
- Dioptric adjustment: On the left eyepiece tube.
- Eyepieces: WF10x/22 mm, high eye-point and WF12.5x/18 mm with dioptric adjustment, one with Walton & Beckett graticule.
- Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
- Objectives:
– IOS W-PLAN 4x/0.10
– IOS W-PLAN 10x/0.25
– IOS W-PLAN PH 40x/0.65
– IOS W-PLAN 100x/1.25 (Oil)
All with anti-fungus treatment.
- Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
- Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
- Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. With 40x phase contrast slider.
- Transmitted illumination (Full Koehler type): X-LED³ with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.
Technical Specifications:
| Observation Method -
Transmitted Light |
Brightfield |
Yes |
| |
Phase contrast (Positive type) |
Yes |
| |
Darkfield |
As optional |
| |
Simple polarized light |
As optional |
| Main Body |
Type |
Upright |
| |
Construction material |
Aluminum die-cast |
| |
Trasportation handle |
Yes |
| Head |
Type |
Trinocular (Siedentopf) |
| |
Split ratio |
50/50 |
| |
Inclination |
30° |
| |
360° rotating |
Yes |
| |
Interpupillary distance (mm) |
50-75 |
| |
Tube inner diameter (mm) |
30 |
| Eyepieces |
Field number (mm) |
22 |
| |
Magnification |
10x |
| |
Planar type |
Yes |
| |
Micrometric scale |
As optional |
| |
Diameter of micrometer glass (mm) |
26 |
| |
High eyepoint (for glass wearers) |
Yes |
| |
Rubber cup |
Yes |
| |
Retractable protections |
Yes |
| Nosepiece |
Positions |
Quintuple |
| |
Reversed |
Yes |
| |
Bi-directional |
Yes |
| |
Rotation on ball bearings |
Yes |
| |
Objective thread |
RMS |
| Objectives |
Optical system |
∞ |
| |
Anti-fungus treatment |
Yes |
| |
Parfocal distance (mm) |
45 |
| |
Standard magnifications |
40x-1000x |
| |
Type |
IOS W-PLAN |
| |
Objectives included |
4x/0.10, W.D. 17.3 mm
10x/0.25, W.D. 10 mm
PH 40x/0.65, W.D. 0.54 mm
100x/1.25 (Oil),
W.D. 0.13 mm |
| Stage |
Type |
Double layer |
| |
Dimensions (mm) |
233x147 |
| |
Moving mechanism |
Rackless |
| |
Moving range (mm) |
78x54 |
| |
Material |
Anti-scratch painting |
| |
Specimen holder |
Yes |
| |
Slide number |
2 |
| |
X-Y Vernier scale |
Yes |
| |
Vernier scale accuracy (mm) |
0.1 |
| Condenser - Multiple
Position |
Type |
Abbe.
Brightfield - Phase contrast |
| |
Number of positions |
2 (BF, 40x) |
| |
Numerical aperture (N.A.) |
1.25 |
| |
Magnification scale for simplified positioning |
Yes |
| |
Removable |
Yes |
| |
Diaphragms |
Iris |
| |
Centrable |
Yes |
| |
Focusable |
By rack and pinion |
| Focusing System |
Type |
Coaxial coarse & fine |
| |
Coarse total travel (mm) |
25 |
| |
Fine total travel (per single rotation) (mm) |
0.2 |
| |
Fine graduations |
100 |
| |
Fine resolution (µm) |
2 |
| |
Upper stop to prevent contact |
Yes |
| |
Adjustable tension |
Yes |
| |
Flat knob for ergonomy |
Yes |
| Transmitted
Illumination |
Kohler illumination |
Full |
| |
Type |
X-LED |
| |
X-LED type |
X-LED3 |
| |
Light source power (W) |
3.6 |
| |
Brightness control |
Manual
|
| |
Lifetime (hours) |
> 65,000 |
| |
Temperature (K) |
6,300 |
| |
Max. required power (W) |
6 |
| Power Supply for
Transmitted
Illumination |
Type |
External |
| |
Microscope connector |
Jack, 2.1 mm |
| |
Power plug type |
Multi-plug (EU, UK, US) |
| |
Input voltage |
100/240 Vac, 50/60 Hz |
| |
Output voltage |
6 Vdc 2.5A |
| Accessories Included |
Dust cover |
Yes |
| |
Immersion oil (10ml) |
Yes |
| |
Tension adjustment tool |
Yes |
| |
Allen wrench |
Yes |
| |
Centering telescope |
Yes |
| |
Green filter |
Yes |
| |
User Manual |
Digital version (downloadable) |
| Additional Information |
|
Heating stage (as optional).
External rechargeable battery pack (as optional). |
| Product Weight |
Height (mm) |
405 |
| |
Width (mm) |
235 |
| |
Depth (mm) |
370 |
| Product Weight |
(kg) |
9 |
| Description:
Entry-level stereomicroscope for routine and educational fields
Specifications:
| Head |
Binocular, 45° inclined. Adjustable dioptric compensation on both eyepiece tubes. Interpupillary distance adjustable between 53 and 75 mm. |
| Eyepieces |
Wide Field, WF 10x/20. |
| Objectives |
2x – 4x selectable.
Working distance: 57 mm. |
| Stand |
Pillar with focus mechanism |
| Focusing |
By means of a rack and pinion controlled by a pair of knobs placed on both sides of the microscope. |
| Stage |
Fitted with a semi-transparent plastic disc for transmitted light with specimen clamps. |
| Illumination |
Double adjustable illuminator for incident and transmitted light fitted with two high-efficiency 1 W LED light sources. Input Voltage: 110/240 Vac, 50/60 Hz. Maximum power consumption: 3 W. Internal NiMH rechargeable battery. Up to 8 hours of use from a single charge, LED at medium intensity. Recharging time: approx. 8 hours. |
| Dimensions |
HEIGHT: 288 mm
WIDTH: 183 mm
DEPTH: 205 mm
WEIGHT: 1.8 kg |
| Accessories included |
Manual and dust cover. |
| The fully automated Leica RM2255 microtome embodies the latest technological innovations in microtomy and perfectly harmonizes practical features with an ergonomic design and user safety. Its two-in-one design concept, which allows motorized as well as manual sectioning, provides reproducible, quality sections.
Features:
- Compact, ergonomic design
- Ergonomically designed handwheel handle
- Smooth-running handwheel with integrated quick-lock mechanism for safety
- Enclosed micrometer feed mechanism
- Low-maintenance cross-roller bearings
- Two forward and backward coarse feed speeds
- Alternate trimming and sectioning modes, as indicated on the display
- Speed control through the cutting window for enhanced efficiency
- Automatic, variable specimen retraction, depending on sectioning speed
- Section thickness totalizer and section counter
- Intuitive control panel
- Integrated communication display
- Precise specimen orientation with zero point reference
- Knife holder design with red colored knife guard
- Precise lateral knife holder adjustment with click stop settings
- Spacious and easy-to-clean section waste tray
- Wide range of accessories
Technical Specifications:
Section thickness
Setting thickness setting range: 0.5 – 100 µm
Setting values: from 0.5 – 5 µm in 0.5 µm increments
from 5 – 20 µm in 1 µm increments
from 20 – 60 µm in 5 µm increments
from 60 – 100 µm in 10 µm increments
Trimming section thickness setting range: 1 – 600 µm
Setting values: from 1 – 10 µm in 1 µm increments
from 10 – 20 µm in 2 µm increments
from 20 – 50 µm in 5 µm increments
from 50 – 100 µm in 10 µm increments
from 100 – 600 µm in 50 µm increments
Object feed: 24 mm ± 1 mm, feed motion via step motor
Vertical specimen stroke: 70 mm
Sectioning modes: 4
Specimen retraction:
In manual operation: 5 – 100 µm in 5 µm increments, can be turned off
In motorized operation: varying with the sectioning speed, can be turned of
Electric coarse feed: 300 µm/s and 800 µm/s
Sectioning speed: 0.5 – 420 mm/s ± 10%
Maximum specimen size (L x H x W): 50 x 60 x 40 mm
Specimen orientation horizontal: ±8°, vertical: ±8°
Nominal supply voltages: 100/120/230/240 V AC ± 10%
Nominal frequency: 50/60 Hz
Power draw: 340 VA
Dimensions basic instrument
Width (incl. handwheel): 413 mm
Depth (incl. waste tray): 618 mm
Height (with storage area on cover): 305 mm
Weight (without accessories): Approx. 40 kg
Dimensions control panel: W x D x H 121 x 166 x 50 mm
Weight: approx. 0.66 kg, approx. 1.45 Ibs
Click Here To Download Catalogue | Trinocular gemological stereomicroscopes for brightfield and darkfield applications with special side-emitting LED illumination ring for true darkfield illumination. Equipped also with an incident LED flexible arm and a diffusive LED disc for transmitted illumination. The instrument can be easily tilted horizontally for immersion analysis.
Features:
- Observation mode: Brightfield, darkfield.
- Heads: Trinocular, 45° inclined, 360° rotating.
- Interpupillary distance: Adjustable between 51 and 75 mm.
- Dioptric adjustment: On both eyepiece tubes.
- Eyepieces: WF10x/21 mm, high eye-point.
- Objective: Parfocal achromatic zoom 0.7x…4.5x (zoom factor 6.43:1).
- Working distance: 100 mm.
- Specimen stage: Gemological stage, with clamp for holding gems.
- Focusing: Rack and pinion mechanism controlled by a pair of knobs.
- Stand: Fixed arm stand with tilting system (with position lock control). It can be totally overturned and rotated allowing in this way to obtain a 2-in-one instrument: an instrument for standard observations and one for observation of water-immersed gems.
- Darkfield illumination: Equipped with a state-of-the-art illuminator for darkfield observation. It consist of an innovative side-emmiting LEDs ring with an emission angle of 38°. With brightness control.
- Transmitted light llumination: Equipped with a LED illuminator, located under the stage. With brightness control.
- Incident illumination: Equipped with a flexible gooseneck-arm LED illuminator. With brightness control.
- Color temperature: Pure white 6,300 K
Technical Specifications:
| Observation Method -
Transmitted Light |
Brightfield |
Yes |
| |
Darkfield |
Yes |
| |
Simple polarized light |
As optional |
| Observation Method -
Incident Light |
Brightfield |
Yes |
| |
Darkfield |
Yes |
| |
Simple polarized light |
As optional |
| Head |
Type |
Binocular |
| |
Construction material |
Aluminum & Plastic molds / Aluminum gears |
| |
Split ratio |
Fixed. 50 (eyepiece) / 50 (photo) |
| |
Inclination |
45° |
| |
360° rotating |
Yes |
| |
Interpupillary distance (mm) |
51-75 |
| |
Dioptric adjustement |
On both tube |
| |
Head holder internal diameter (mm) |
76 |
| |
Tube inner diameter (mm) |
30 |
| Eyepieces |
Field number (mm) |
21 |
| |
Magnification |
10x |
| |
Micrometric scale |
As optional |
| |
Diameter of micrometer glass (mm) |
23 |
| |
High eyepoint (for glass wearers) |
Yes |
| |
Rubber cup |
Yes |
| |
Retractable protections |
Yes |
| Objectives |
Optical system |
Greenough |
| |
Anti-fungus treatment |
Yes |
| |
Zoom type |
Achromatic |
| |
Working distance (mm) |
100 |
| |
Standard magnifications |
7x-45x |
| |
Zoom ratio |
6.43 |
| Focusing System |
Type |
Coarse |
| |
Coarse total travel (mm) |
114 |
| |
Adjustable tension |
Yes |
| |
Head holder internal diameter (mm) |
76 |
| Stand |
Type |
Fixed arm |
| |
Tilting mechanism |
Yes, full 90° tilt angle and 360° rotating |
| Stage |
Gemological clamp |
Yes, adjustable |
| Transmitted
Illumination |
Type |
LED |
| |
Darkfield illuminator |
Yes, side-emitting LEDs |
| |
Lever for dark background insertion |
Yes |
| |
Selector for illumination modes |
Yes, 3 modes:
- brightfield only
- darkfield only
- both brightfield and darkfield. |
| |
Light source power (W) |
2 |
| |
Illuminance (lux) |
6,000 |
| |
Brightness control |
Manual |
| |
Lifetime (hours) |
> 65,000 |
| |
Temperature (K) |
6,300 |
| |
Max. required power (W) |
3 |
| Incident Illumination |
Type |
LED |
| |
Light source power (W) |
1 |
| |
Illuminance (lux) |
20,000 |
| |
Brightness control |
Manual |
| |
Lifetime (hours) |
> 65,000 |
| |
Temperature (K) |
6,300 |
| |
Max. required power (W) |
3 |
| Power Supply for
Transmitted
Illumination |
Type |
External |
| |
Microscope connector |
Jack, 2.1 mm |
| |
Power plug type |
Multi-plug (EU, UK, US) |
| |
Input voltage |
100/240 Vac, 50/60 Hz |
| |
Output voltage |
12 Vdc 2.5A |
| Accessories Included |
Dust cover |
Yes |
| |
User Manual |
Digital version (downloadable) |
| Additional Information |
Maximum sample height (mm): |
90 |
| Product Weight |
Total Height (mm) |
480 |
| |
Head Height (mm) |
230 |
| |
Head Width (mm) |
140 |
| |
Head depth (mm) |
150 |
| |
Base height (mm) |
60 |
| |
Base width (mm) |
210 |
| |
Base depth (mm) |
270 |
| Product Weight |
(kg) |
10 |
| Phase contrast, darkfield and brightfield binocular microscope with W-PLAN objectives, rackless stage and combining the exclusive X-LED3 with ALC (Automatic Light Control) for great-looking, rich and highquality view.
Features:
- Observation mode: Brightfield, phase contrast and darkfield (dry).
- Head: Binocular, 30° inclined, 360° rotating (when ALC cable is unplugged).
- Interpupillary distance: Adjustable between 48 and 75 mm.
- Dioptric adjustment: On the left eyepiece tube.
- Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
- Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
- Objectives:
W-PLAN 4x/0.10
W-PLAN PH 10x/0.25
W-PLAN PH 40x/0.65
W-PLAN PH 100x/1.25 (Oil/Water)
All with anti-fungus treatment.
- Specimen stage: Double layer rackless mechanical stage, 150×139 mm, 75×33 mm X-Y range.
- Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
- Condenser: Phase condenser (10x/20x, 40x, 100x) with darkfield (dry) and brightfield.
- Illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300K) and brightness control. ALC system. Multi-plug 100-240Vac/6Vdc external power supply
Technical Specifications:
| Observation Method -
Transmitted Light |
Brightfield |
Yes |
| |
Phase contrast (Positive type) |
Yes |
| |
Darkfield |
Yes |
| |
Simple polarized light |
As optional |
| Main Body |
Type |
Upright |
| |
Construction material |
Aluminum die-cast |
| |
Trasportation handle |
Yes |
| Head |
Type |
Binocular (Siedentopf) |
| |
Inclination |
30° |
| |
360° rotating |
Yes |
| |
Interpupillary distance (mm) |
48-75 |
| |
Dioptric adjustement |
On left tube |
| |
Fixing screw for eyepieces |
Yes |
| |
Tube inner diameter (mm) |
23 |
| Eyepieces |
Field number (mm) |
20 |
| |
Magnification |
10x |
| |
Pointer |
As optional |
| |
Micrometric scale |
As optional |
| |
Diameter of micrometer glass (mm) |
21 |
| |
High eyepoint (for glass wearers) |
Yes |
| |
Rubber cup |
Yes |
| Nosepiece |
Positions |
Quintuple |
| |
Reversed |
Yes |
| |
Bi-directional |
Yes |
| |
Rotation on ball bearings |
Yes |
| |
Objective thread |
RMS |
| Objectives |
Optical system |
160 |
| |
Anti-fungus treatment |
Yes |
| |
Parfocal distance (mm) |
45 |
| |
Standard magnifications |
40x-1000x |
| |
Type |
IOS |
| |
|
W-PLAN
4x/0.10, W.D. 15.8 mm
W-PLAN PH
10x/0.25, W.D. 12.2 mm
W-PLAN PH
40x/0.65, W.D. 0.37 mm
W-PLAN PH
100x/1.25 (Oil),
W.D. 0.13 mm |
| Stage |
Type |
Double layer |
| |
Dimensions (mm) |
150x139 |
| |
Moving mechanism |
Rackless |
| |
Moving range (mm) |
75x33 |
| |
Material |
Anti-scratch painting |
| |
Specimen holder |
Yes |
| |
Slide number |
1 |
| |
X-Y Vernier scale |
Yes |
| |
Vernier scale accuracy (mm) |
0.1 |
| Condenser - Multiple
Position |
Type |
Abbe.
Brightfield - Phase contrast - Darkfield (dry) |
| |
Number of positions |
5 (BF, 10x/20x, 40x, 100x, DF) |
| |
Numerical aperture (N.A.) |
1.25 |
| |
Removable |
Yes |
| |
Diaphragms |
Iris |
| |
Centrable |
Yes |
| |
Focusable |
By rack and pinion |
| Focusing System |
Type |
Coaxial coarse & fine |
| |
Coarse total travel (mm) |
25 |
| |
Fine total travel (per single rotation) (mm) |
0.2 |
| |
Fine graduations |
100 |
| |
Fine resolution (µm) |
2 |
| |
Upper stop to prevent contact |
Yes |
| |
Adjustable tension |
Yes |
| |
Flat knob for ergonomy |
Yes |
| Transmitted
Illumination |
Kohler illumination |
Fixed (full as optional) |
| |
Type |
X-LED |
| |
X-LED type |
X-LED3 |
| |
Light source power (W) |
3.6 |
| |
Brightness control |
Manual
& Automatic (ALC) |
| |
Lifetime (hours) |
> 65,000 |
| |
Temperature (K) |
6,300 |
| |
Max. required power (W) |
6 |
| Power Supply for
Transmitted
Illumination |
Type |
External |
| |
Microscope connector |
Jack, 2.1 mm |
| |
Power plug type |
Multi-plug (EU, UK, US) |
| |
Input voltage |
100/240 Vac, 50/60 Hz |
| |
Output voltage |
6 Vdc 2.5A |
| Accessories Included |
Dust cover |
Yes |
| |
Immersion oil (10ml) |
Yes |
| |
Tension adjustment tool |
Yes |
| |
Allen wrench |
Yes |
| |
Centering telescope |
Yes |
| |
Green filter |
Yes |
| |
User Manual |
Digital version (downloadable) |
| Additional Information |
|
External rechargeable battery pack (as optional) |
| Product Weight |
Height (mm) |
405 |
| |
Width (mm) |
235 |
| |
Depth (mm) |
370 |
| Product Weight |
(kg) |
8 |
|
Reviews
There are no reviews yet.
