Description Shipped From Abroad
Features：
Valve sealed design, no free electrolyte, Maintenance -free
Designed floating service life:15 years @ 25 °C/68 °F.
Wide operating temperature range from -15°C to 35°C
Nanometer gel electrolytes eliminate the acid stratification and prolong cycle life
Low self-discharge rate: ≤3%/month.
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad
Features:
The battery cabinet is made of metal material, strong and can bear up to 500KG.
The battery cabinet is assembled in the form of assembly, which is conven-ient for transportation and simple for assembly.
The surface of electrostatic spraying, strong rust resistance, color can be fixed spray.
Other sizes can be customized.
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad
Features:
60KW single power module in 3U
N+1or N+X parallel redundancy for power guarantee
Supports horizontal expansion by 1+1 cabinet paralleloperation.
Hot-swappable modular design decreases MTTR
High scalability
Built-in maintenance bypass switch for easy maintenance without interruptible
High efficiency double conversion online UPS
Flexible battery configuration and adjustable charging current
High overload capability
Power walk-in function
Built-in dynamic password protection
Built-in ultra communication slot
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Shipped From Abroad
Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Content Features：
Valve sealed design, no free electrolyte, Maintenance -free
Designed floating service life:15 years @ 25 °C/68 °F.
Wide operating temperature range from -15°C to 35°C
Nanometer gel electrolytes eliminate the acid stratification and prolong cycle life
Low self-discharge rate: ≤3%/month.
Application
UPS Systems
Portable Equipment
Renewable Energy Systems
Electric Utilities
Outdoor control Equipment
Railroad Utilities
Telecom Systems
Technical Specifications
Model
Nominal Voltage
Capacity
Dimension LXWXH (mm)
Total Height
(mm)
Weight (KG/IBS)
Terminal
VG12-33
12V
33AH
195
130
167
167
10
22.05
M6
VG12-35
12V
35AH
195
130
167
167
11.5
25.35
M6
VG12-38
12V
38AH
197
165
172
172
12.5
27.56
M6
VG12-40
12V
40AH
197
165
172
172
13.2
29.1
M6
VG12-45
12V
45AH
197
165
172
172
15
33.07
M6
VG12-50
12V
50AH
229
138
205
208
15.5
34.17
M6
VG12-55
12V
55AH
229
138
205
208
16.5
36.38
M6
VG12-65
12V
65AH
350
166
175
175
21
46.3
M8
VG12-70
12V
70AH
260
168
208
211
21.8
48.06
M8
VG12-80
12V
80AH
260
168
208
211
24
52.91
M8
VG12-90
12V
90AH
330
171
216
219
27
59.52
M8

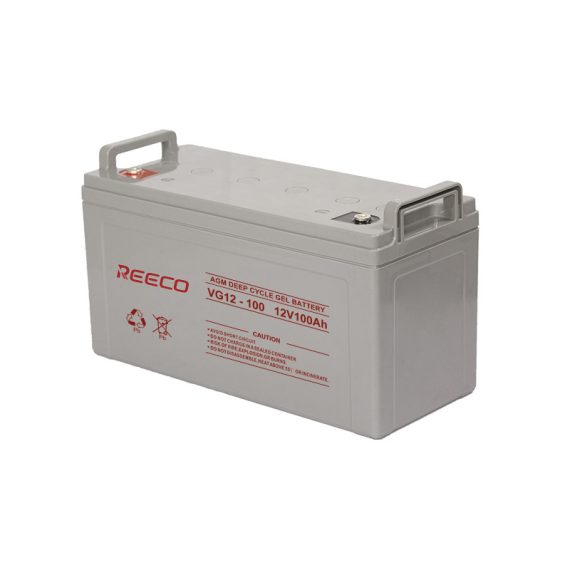

VG12-100
12V
100AH
330
171
216
219
29.5
65.04
M8
VG12-120
12V
120AH
407
173
237
237
35
77.16
M8

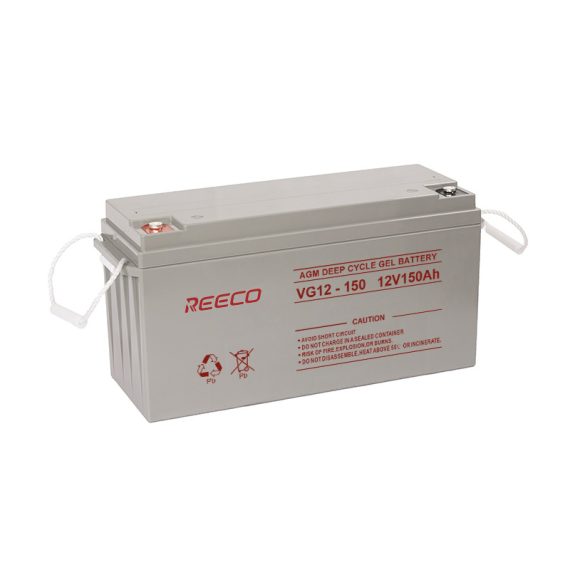

VG12-150
12V
150AH
484
170
241
241
45
99.21
M8
VG12-200
12V
200AH
522
240
219
222
61.5
135.58
M8
VG12-250
12V
250AH
520
268
220
223
71
156.53
M8
Features：
True double-conversion
LCD screen auto-rotation with Rack position ( only for 10K-20K models)
DSP technology guarantees high performance
Output power factor 1
Support 1/1；3/1；3/3 Phase Adjustable
Active power factor correction in all phases
50HZ / 60HZ frequency converter mode
ECO mode operation for energy saving ( ECO)
Emergency power off function ( EPO)
Generator compatible
Supports dual AC inputs
3-stage extendable charging design for optimized battery performance
Adjustable battery numbers for long-run model
Supporting Parallel sharing of battery packs
Optional isolation transformer offers full isolation and complete common mode noise rejection
Support with SNMP,USB, RS232 communication
Technical Specifications
MODEL
33RM 10KL
33RM 15KL
33RM 20KL
33RM 30KL
33RM 40KL
33RM 60KL
CAPACITY
10KVA/10KW
15KVA/15KW
20KVA/20KW
30KVA/30KW
40KVA/40KW
60KVA/60KW
PHASE
3 Phase input / 3 Phase output
PARALLEL CAPABILITY
4 Max
INPUT
Nominal Voltage
3×380 VAC (3Ph+N)
Voltage Range
190-520 VAC (3 Phase) @ 50% load , 305-478 VAC (3 Phase) @ 100% load
Frequency Range
46-54 Hz or 56~64Hz
Power Factor
≥ 0.99 @ 100% load
OUTPUT
Output Voltage
3 x 360*/380/400/415 VAC (3Ph+N)
AC Voltage Regulation (Batt. Mode)
± 1%
Frequency Range (Synchronized Range)
46~54Hz or 56~64Hz
Frequency Range (Batt. Mode)
50 Hz ±0.1 Hz or 60 Hz ±0.1 Hz
Current Crest Ratio
3:1 (max.)
Harmonic Distortion
≤1 % THD (Linear Load), ≤3% THD (Non-linear Load)
Transfer Time
AC mode to Battery mode
zero
Inverter to Bypass
zero
Waveform (Batt. Mode)
Pure Sine Wave
Overload
AC Mode
100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately Protection
Battery Mode
100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately Protection
EFFICIENCY
AC Mode
95.5%
ECO Mode
98.5%
Battery Mode
94.5%
BATTERY
Battery Type
Depending on the applications
Numbers
20 pcs
32-40 pcs (Adjustable)
Charging Current (max.)
1A~ 12A (Adjustable)
1A~ 16A (Adjustable)
1A 〜18A (Adjustable)
Charging Voltage
±13.65 VDCx N (N=10)
±13.65VxN (N=16〜20)
PHYSICAL
Dimension, D * W * H (mm)
680*438*133 [3U]
797*438*176 [4U]
Net Weight (kgs)
27
30
40
45
ENVIRONMENT
Operation Temperture
0-40°C
Operation Humidity
0-95% and non-condersing
Noise Level
Less than 62dB @ 1 Meter
Less than 65dB @ 1 Meter
Less than 70dB @ 1 Meter
MANAGEMENT
Smart RS-232/USB
Supports Windows® Family, Linux and MAC
Optional SNMP
Power management from SNMP manager and web browser
Features:
Capacity: 2200W 2048Wh /640000mAh
Input AC Output Power:Rated Power 2400W Peak Power 4800W
Input AC Charging：AC100~125V/AC174~264V Bidirectional Inverter 1400W Max
Input Car Charging：DC12V~24V/10A 240W Max
Input Solar Charging：DC16V~60V/10A 500W Max
Output Voltage：230VAC±10%/110VAC±10%
Output Frequency: 50Hz±5%/60Hz±5%
USB Output:2*QC18W+PD27W+PD100W Max
DC Output:1*Cigarette Lighter 12.8V/12A Max+2*DC5521 Rated Output 12.8V/5A Max
Output Waveform:Pure Sine Wave
LED:3 Levels(H/M/L)+SOS
UPS Function:Support ; Battery Expandable: Support
Applications:
Mammogram
Ultrasound Equipments
Radiology rooms
Features:
The battery cabinet is made of metal material, strong and can bear up to 500KG.
The battery cabinet is assembled in the form of assembly, which is conven-ient for transportation and simple for assembly.
The surface of electrostatic spraying, strong rust resistance, color can be fixed spray.
Other sizes can be customized.
Technical Specifications
Features:
60KW single power module in 3U
N+1or N+X parallel redundancy for power guarantee
Supports horizontal expansion by 1+1 cabinet paralleloperation.
Hot-swappable modular design decreases MTTR
High scalability
Built-in maintenance bypass switch for easy maintenance without interruptible
High efficiency double conversion online UPS
Flexible battery configuration and adjustable charging current
High overload capability
Power walk-in function
Built-in dynamic password protection
Built-in ultra communication slot
Technical Specifications
MODEL
RM Pro 120K
RM Pro 180K
RM Pro 300K
RM Pro 420K
RM Pro 480K
RM Pro 600K
Phase
3 Phase in / 3 Phase out
Cabinet Capacity*
120 KW
180 KW
300KW
420KW
480KW
600KW
Battery Type
Extemal Battery
One Power Module Capacity
60KVA/60KW
Max. Power Module No.
2
3
5
7
8
10
INPUT
Nominal Voltage
3×380/400/415 VAC(3Ph+N)
Voltage Range
-30%～+20%
Nominal Frequency
50/60Hz(Auto Sensing)
Frequency Range
40Hz~70Hz
Power Factor
>0.99 @100% Load, >0.98 @ 50% Load
Harmonic Distortion (THDi)
<3%@ 100% load
OUTPUT
Nominal Voltage
3×380/400/415 VAC (3Ph+N)
Voltage Regulation(Steady State)
≤±1% Typical(balanced load); ≤±2% Typical(unbalanced load)
Nominal Frequency
50/60Hz
Frequency Range(Synchronized)
46Hz～54Hz or 56Hz～64Hz
Overload Capability
1 hour for ≤110%,10 mins for 111%～125%,1 min for 126%~150% and 200ms for >150%
Haronic Distortion
≤2% THD (Linear Load); ≤4% THD (Non-linear Load)
Eficiency
96%
BATTERY / CHARGER
Nominal Voltage
’+/- 192V～+/- 240V(Selectable)
Maximum Voltage
’+/- 240V (12V×40 PCS)
Minimum Voltage
‘+/-192V (12V×32 PCS)
Floating Charge Voltage
2.28V/Cell (2.25~2.33 Selectable)
Boost Charging Voltage
2.35V/Cell
Temperature Compensation
Yes
Maximum Charging Current
(Per Power Module)
18A(Adjustable)
PHYSICAL
Cabinet Dimension (DxWxH)mm
1100x600x1475
1100x600x1475
1100x600x2010
1100×600×2010
1065x1000x2000
1065×1000×2000
Net Weight (Kg)
308
352
516
654
932
1020
Power Module (PM-60) Net Weight
44KGS
ENVIRONMENT
Operating Temperature
0～40℃
Relative Humidity
0～95% non-condensing
Altitude*
<1000m for Nominal power
IP Protection
IP 20
MANAGEMENT
Smart RS-232/USB
Supports Windows⑧ Family, Linux and MAC
Optional SNMP
Power management from SNMP manager and web browser
STANDARDS
Safety
IEC/EN62040-1
EMC
IEC/EN 62040-2 Category C3
Features: One of the most popular rechargeable battery generators in the market. It comes with AC outlets,DC car port,three Quick Charge USB ports,one Type-C port and built-in fast charging wireless charger.
Applications:
Mammogram
Ultrasound Equipments
Radiology rooms
Technical Specifications
Model
ADVANCE 300W
ADVANCE 500W
ADVANCE 1000W
ADVANCE 1500W
Power
300W Rated Power
600W Peak Power
500W Rated Power
1000W Peak Power
1000W Rated Power
2000W Peak Power
1500W Rated Power
3000W Peak Power
Input
DC, 7909,12-28V
DC, 7909,12-28V
DC, 7909,12-28V
DC, 8020,12-60V
PV(Anderson) 12-60V
Battery Type
18650 Lithium-ion Battery 2.6Ah
18650 Lithium-ion Battery 3.0Ah
18650 Lithium-ion Battery 3.0Ah
18650 Lithium-ion Battery 2.6Ah
Capacity
silk-screen
231Wh(22.2V 10.4Ah)
400Wh(22.2V 18Ah)
933Wh(22.2V 42Ah)
1328Wh (22.2V 59.8Ah)
single cell
Volts(V)
3.7V
3.7V
3.7V
3.7V
Capacity(Ah)
2.6Ah
3.0Ah
3.0Ah
2.6Ah
Cascade No.
6
6
6
6
Parallel No.
4
6
14
23
Input
Watts
Wall Charger
48W
100W
150W
240W
Solar Panel
80W
100W
120W
600W
Car Port
55W
60W
60W
60W
Recharge
Time
Wall Charger
4.8h
4.0h
6.2h
5.5h
Solar Panel
2.9h
4.0h
7.8h
2.2h
Car Port
4.2h
6.7h
15.5h
22.1h
AC Outlet
Germany
1x ， 230V, 50Hz((with cover)
1x ， 230V, 50Hz((with cover)
2x ，230V ， 50Hz(with cover)
3x ，230V ， 50Hz
DC Output
1XCigarette lighter port ，
12V 10A
1XCigarette lighter port ，
12V 10A
1XCigarette lighter port ，
12V 10A
2x 5525 ,1XCigarette lighter port，
Parallel output 12V 10A
1×7406 24V 5A
USB Output
2*USB-A QC 3.0 18W each,36W Max
1*USB-C PD3.0 60W Max
3*USB-A QC 3.0 18W each,54W Max
1*USB-C PD3.0 60W Max
3*USB-A QC 3.0 18W each,54W Max
1*USB-C PD3.0 60W Max
2*USB-A QC 3.0 18W each,36W Max
2*USB-C PD3.0 120W Max
Wireless Charger
/
1x, 10W
1x, 10W
1x, 10W
LED light
/
1x 1W
1x 1W
1x 1W
Flashlight
1x 1W
1x 1W
1x 1W
/
LCD Display
Yes
Yes
Yes
Yes
Charging Temp
0~40℃
0~40℃
0~40℃
0~40℃
Operating Temp
﹣ 10~40℃
﹣ 10~40℃
﹣ 10~40℃
﹣ 10~40℃
Accesssories
48W Adapter x83cm，
AC Cable x48cm,
Car charger cable x131cm，
Instruction manual
100W Adapter x81cm，
AC Cable x48cm,
Car charger cable x131cm，
Instruction manual
150W Adapter x81cm，
AC Cable x121cm,
Car charger cable x131cm，
Instruction manual.
240W Adapter x150cm，
AC Cable x121cm,
Car charger cable x131cm，
Instruction manual.
Products Size(mm)
192*142*148mm
230*168*178mm
290*201*200mm
350*265*240mm
Package
N.W
2.76kg
4.42kg
8.55kg
14.1kg
Box Size
238*218*190mm
276*241*227mm
371*254*262mm
455*355*345mm
G.W
3.7kg
5.14kg
9.74kg
15.96kg
Carton Size
504*460*233mm
525*301*267mm
555*406*316mm
471*377*375mm
Carton/pcs
4pcs
2pcs
2pc
1pc
G.W
16.06kg
11.8kg
20.37kg
17.9kg
Loading Quantity
(20GP/40GP/40HQ)
1740 / 3880 / 4800
1160 /2580 / 3200
690 1530 /1900
368/ 818 /1015
Reviews
There are no reviews yet.
