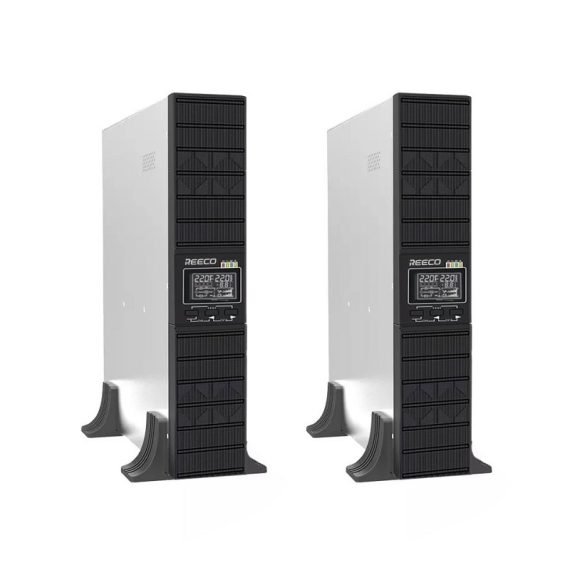

Single Phase Rack mount Online UPS RM Series

$0.00

Shipped From Abroad

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
SF1033560130139-31
Brands:: Reeco Power

Description

Features:

1) Output power factor: PF1.0

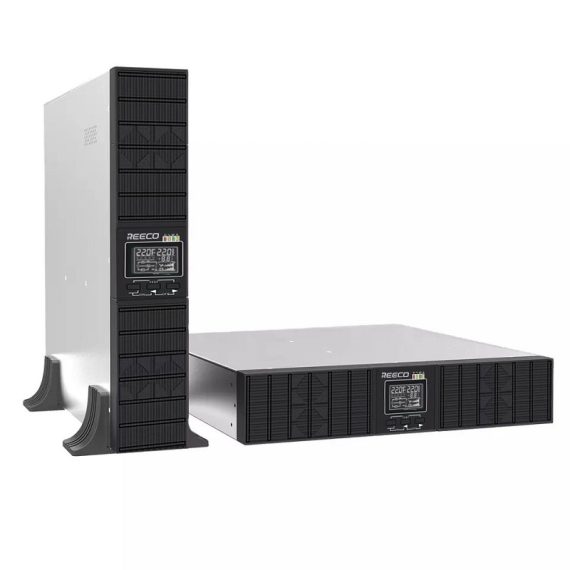

2) Rack/Tower Convertiable Design with manual roatatable LCD Screen.
3) Input voltate:110-300Vac
4) Output voltage:208/220/230/240Vac
5) Transfer time: AC to DC mode 0ms ; DC to bypass mode 4ms.
6) Output frequency: 50Hz/60Hz auto adjusted.
7)ECO Power Mode, High Efficiency up to 98.5%
8) Interferface: 1*USB, 1*RS232, 1*EPO, 1*SNMP card slot ( SNMP card needs to be purchased separately).
9)Protection: high/low voltage, over load, short circuit protection.



Technical Specifications
Model RM   1K RM1KL RM   2K RM   2KL RM   3K RM    3KL RM   6K RM   6KL RM   10K RM    10KL
Rated Capacity 1KVA/1KW 2KVA/2KW 3KVN/3KW 6KVA/6KW 10KVA/10KW
INPUT
Input Formats L+N+PE
Rated Input Voltage 208/220/230/240 VAC
Voltage Range 110-300VAC (110-176VAC,280-300VAC Power Limited)
Frequency Range 50/60Hz±6Hz,±10Hz(Setable)
Input Power Factor >0.99
Input Harmonic Distortion <1%THD(Linear Load),<5%THD(Non-linear Load)PF=0.8 <5%THD(Linear Load),<8%THD(Non-linear Load)PF=0.8
OUTPUT
Output Formats L+N+PE
Output Voltage 208 /220/230/240 VAC
Output Accuracy ±1%
Output Frequency AC Mode:Same as AC,Battery Mode:50160Hz±1%
Output Harmonic Distortion <1%THD(Linear Load),<3%THD(Non-linear Load)PF=0.8 <2%THD(Linear Load),<5%THD(Non-linear Load)PF=0.8
Output Power Factor 1.0
Transfer Time AC Mode to Battery Mode:0ms,Inverter Mode to Bypass Mode:4ms
Load Capacity AC Mode:         Battery  Mode
30min@102%~110%load    1min@102%~110%load
10min@110%~130%load 10s@110%~130%load
30s@130%~150%load   3s@130%~150%load
200ms@>150%load     200ms@>150%load
AC Mode:         Battery  Mode
30min@102%~110%load    10min@102%~110%load
10min@110%~130%load  1min@110%~130%load
30s@130%~150%load   10s@130%~150%load
500ms@>150%load     500ms@>150%load
MACHINE EFFICIENCY
AC Mode Maximum Efficiency 95.5%,Full Load Efficiency 95%
Battery Mode Full Load Efficiency 89.5@36VAC
Full Load Efficiency 89.5@24VAC
Full Load Eficiency 91.5@72VAC
Full Load Efficiency 91.5@48VAC
Full Load Efficiency 91.5@96VAC
Full Load Eficiency 91.5@72VAC
Maximum Efficiency 95.3%,Full Load Eficiency 94.8%(20pcs
Battery
BATTERY
Battery Quantity 7AH*2 36VDC 7Ah*4/7ah*6 DC
2
7Ah*4/7ah*6 96VDC 7AH*16 192VDC 7AH*16 192VDC
Backup Time Depend on User’s Requirement and Configuration
Charge Current Internal Battery Type:RM 1KVA-3KVA:1.0A (Default),1-12A Adjustable
Extemal Battery Type:RM 1KL-3KL:5.0A (Default),1-12A Adjustable.
1.0A(Default),1-12A Adjustable(PF=0.8,1-8A Adjustable)
WORKING ENVIRONMENT
Ambient Temperature 0~40℃
Ambient Humidity 20%-95%(No Condensation)
Storage Temperature -15~60°℃(Battery:0~40℃)
Altitude <1000m,Derating at above 1000m,Maximum 4000m,Refer to IEC62040
DISPLAY
LCD Working Mode/Load/Battery Power /Input /Output ect
Standard &Certification EN/IEC61000,EN/IEC62040,GB/T4943,YD/T1095,TLC ect
PHYSICAL
UPS Size (L*W*H) 438*88*385mm 438*88*505 438*88*385 UPS case size:438*88*470 mm;
Battery Pack size:438*88*690mm
Package Size
(L*W”H)
533*178*480mm 533*178*507mm 533*178*590mm 570*595*230mm
Net Weight(KG) 11.2 5.8 15 6.5 20.5 7.5 20.2 9.5 21.5 10.25
Gross Weight(KG) 12.0 6.5 17 9 22.5 9 21.5 11.5 23 11.2
COMUNICATION INTERFACE
Interface 1*USB,1*RS232,1*EPO
