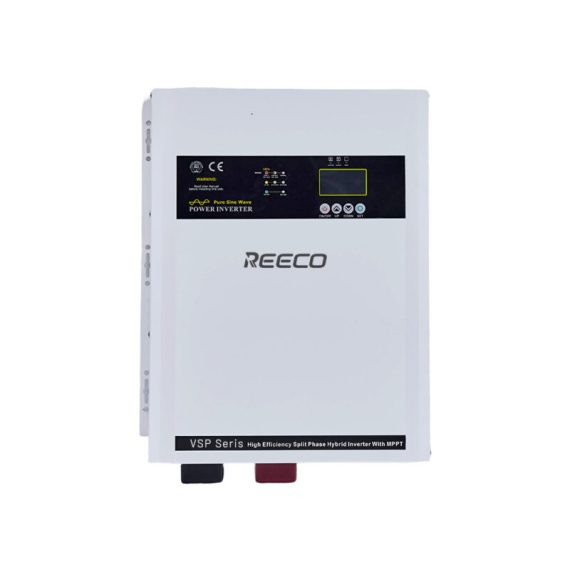

Spilt Phase Single Phase Low Frequency Hybrid Solar Inverter VSP Series

$0.00

Shipped From Abroad

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
SF1033560130139-32
Brands:: Reeco Power

Description

Features:
  • Spilt Phase output Voltage:
  • Output 1: HOT1 / HOT2 + N = 100 / 110 / 115 / 120VAC
  • Output 2: HOT1 + HOT2 = 200 / 220 / 230 / 240VAC
  • Pure sine wave output 1KW to 12KW
  • Built in high efficiency MPPT solar charge controller(99%),50-120A MPPT solar charger controller.
  • UPS function AC to DC automatic conversion time 5-8MS
  • Can use for different types of batteries:Lead-acid battery,GEL battery、lithium battery.
  • AC charging is adjustable from 5-30A/5-40A/5-50A/5-70A.
  • 3-Level voltage stabilizer to protectelectrical appliances from highand low voltage damage.
  • Strong load capacity with 3 times peak power,Support to bear withinductive loads. such as motors, pumps,air conditioners,compressor etc.
  • High-low voltage protection,overload, short-circuit Protection,under-voltage and over-temperature protection,over voltage,battery reverse connection(optional)etc.
  • Support RS232,RS485 for APP(WIFl) andremote monitoring (optional)



Technical Specifications
MODEL 1000W 1500W 2000W 3000W 4000W 5000W 6000W 8000W 10000W 12000W
INPUT Rated capacity 1000W 1500W 2000W 3000W 4000W 5000W 6000W 8000W 10000W 12000W
Peak power 3000W 4500W 6000W 9000W 12000W 15000W 18000W 24000W 30000W 36000W
Commercial Power range 110VAC:83V-137VAC 120VAC:90V-150V
220VAC:165V-275VAC 240VAC: 173V-287V
220VAC:176V-264VAC
240VAC:184V-276V
AC frequency range 45-65HZ
SOLAR MPPT Solar Controller 30A/50A/60A/80A 80A/100A
Solar input 360W/720W/1440W/1920W/2400W/2880W/3840W 3840W/4800W/7680W/9600W
PV input Voltage Range 14-130VDC(12V SYSTEM)/38-130VDC(24V SYSTEM)/72-180VDC(48VDC SYSTEM)/144-280VDC(96V SYSTEM)
BATTERY Type Lead-acid battery / GEL battery / Lithium battery
DC Voltage 12VDC /24VDC 24VDC/48VDC 48VDC/96VDC
Input voltage range 12VDC:10.5-15VDC    24VDC:21-30VDC    48VDC:42-60VDC  96VDC: 84-120VDC
Floating charge set 12.9 〜13.6 V(1PCS battery) can be set
Low voltage restored 12VDC:12.6-14.4VDC 24VDC:25.2-28.8VDC 48VDC:50.4-57.6VDC 96VDC:100.8-115.2VDC
Low voltage shutdown set 12VDC:10-10.9V       24VDC:20-21.8V    48VDC:40-43.6V   96VDC:80-87.2V
Over voltage protection 12VDC: 16.7VDC 24VDC:33.4V 48VDC:66.8V
Over voltage alarm 12VDC:15VDC 24VDC:30V    48VDC:60V
AC charging 5A-30A(40A, 50A, 60A.70A Optional)
OUTPUT Capable of starting
electric motor
0.5HP 1HP 1.5HP 2HP 3HP
Voltage range (VAC) 110VAC/220VAC ,120VAC/240VAC±10% (Auto-sensing) 110VAC/220VAC ,120VAC/240V AC±10% (Auto-sensing)
Transfer time Typical: 10ms(lncluding detection time)
Temperature protection ≥85°C alarm ≥90°C machine shut off
Overload IPS automatically shut down if overload exceeds 120% of normal value for 10 seconds,
IPS automatically resume work if overload comes to rated load.
Waveform Pure sine wave
Frequency Commercial power supply: shared frequency with the commercial inversion state:60/50±0.5
Output frequency range (electric supply mode) Tracking automatically
Temperature Operating Temperature 0°C~50°C
Thermal method Cooling fan in intelligent control<42°C fan rotates slowly to >45°C fan rotates fast
Appearance External Size(mm) (L*W*H) 510*325*215mm 645*325*215mm 765*320*250mm
Gross Size(mm) (L*W*H) 560*380*280mm 730*400*290mm 840*405*320mm
Net weight(kg) 14 15 18 20 31 34 35 52 54 56
Gross weight(kg) 16 17 20 22 35 37 38 56 58 60
