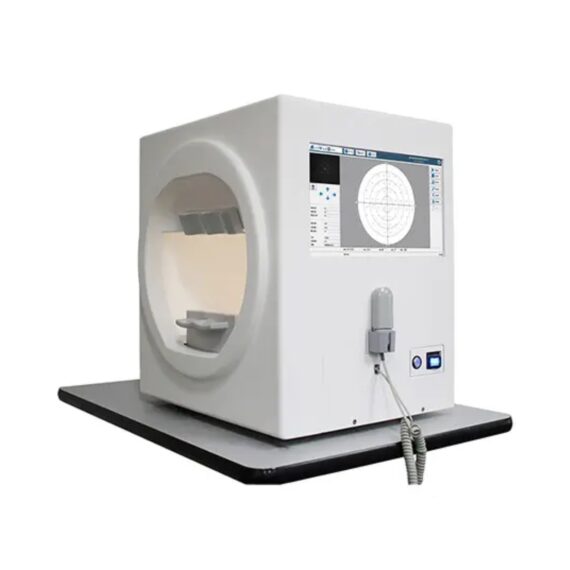

Automatic Computer Goldmann (Visual Field Analyzer)

Click Here To Download Catalogue

Click Here To Download Catalogue

• TS-CSA-A (Vertical movement, 1.6m stroke, rail length 3x4meter) including HV cable 15m
• WBS-TA: Vertical movement

1. V Stroke:1,450mm in Uprigh Bucky Position,
2. 1,526mm in Horizontal Bucky position.

• PBT-4 is a 4 way Floating Tabletop. A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free
• Digital Flat Panel Detector (FPD) – Wireless 17X14 (Csl, 4336W) with Auto Exposure Detection (AED) function, there is no DR trigger cable between detector and generator.
• Full Featured Imaging Software & Excellent Digital Image Processing:

1. Provides convenient user interface and easy operation
2. Anatomical view-based digital image processing automatically optimizes and enhances the quality of the captured image for the pictured anatomy.
3. Radiographic stand & automatic collimator control function
4. DICOM 3.0 networking interface includes Worklist, Print, Store, Query for integration with any PACS or RIS

• Included – Software, HP Laptop Computer

1. CPU≥3.2GHz
2. Memory capacity：≥4GB
3. Hard drive capacity ：≥500 GB
4. Resolution: 1280 x 1024
5. Display size： 21 inch color LCD screen
6. 64 bit Windows 10 operation system
7. Core: i5

• Power Rating - 32KW
• Generator - GXR-32S
• Rotor - Dual Speed Starter(DSS)
• Input Power - 400/480VAC, Three phase
• Line Frequency - 50/60Hz
• X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
• Tube Voltage - 40 to 150kV, 1kV Step
• Tube Current – 10 to 640mA
• Output - 640mA@81kV,  500mA@104kV, 400mA@130kV, 320mA@150kV
• Time Range - 1ms to 10s
• mAs Range - 0.1 to 800mAs
• Reproducibility - Coe­cient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
• Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
• Linearity - Coe­cient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
• Mechanical Parts:

1. V Stroke:1,450mm in Upright Bucky
2. Position, 1,526mm in Horizontal Bucky position.

Click Here To Download Catalogue

• dimensions: 220x153x55 mm (LxWxH)
• weight: < 0,6 kg
• recording of standard 12 ECG leads
• saving the ECG signal simultaneously from all the 12 leads during the automatic recording, together with the date and time of the examination, filter settings, examination recording time and, optionally, patient's data, in the internal memory
• printout of the automatic ECG recording from internal memory, in groups of three leads
• printout of the analysis, interpretation of automatic ECG examination
• display of 1, 3, 6 or 12 lead ECG recordings
• ECG printout in 1-, 3-, 6- or 12-channel modes
• attaching the name of the patient to the ECG printout
• LCD TFT (4,3", 480x282) touch screen
• membrane alphanumeric keyboard with functional keys
• graphical menu displayed on the screen for easy operation using keyboard
• automatic analysis and interpretation in compliance with EN 60601-2-25 (CSE database) - interpretation dependable on age & sex of a patient
• memory of the last automatic examinations, with a limit from 5 to 1000
• up to 130 automatic examinations in battery mode
• continuous heart rate (HR) measurement and display
• automatic detection of QRS complex
• adapted to direct operation on an open heart
• power line interference filter: 50 Hz, 60 Hz
• muscle interference filter; filters available: 25 Hz, 35 Hz, 45 Hz
• contour line filters; filters available: 0.15 Hz, 0.45 Hz, 0.75 Hz, 1.5 Hz
• detection of electrode detachment, independent for each channel
• selectable channel to detect heart rate
• thickness of the printing ECG waveforms line to choose from: normal or bold
• presentation of the curves in the standard layout or Cabrera layout
• multilingual menu
• external USB communication port to connect a PC and the CardioTEKA software, for real-time transmission of ECG signal
• acoustic signalling of detected beats
• protection against defibrillation pulse
• detection and presentation of stimulating pulses on printout
• automatic examination with the printout of patient data and clinic data
• battery power saving functions

• clamp electrodes (set of 4)
• chest electrodes (set of 6)
• KEKG-30R ECG cable
• medical power connector M12-15
• ECG paper RB1 58 mm wide (1 roll)
• ECG gel
• operation manual

Click Here To Catalogue Download

• Cooperation with the CardioTEST cardiovascular exercise system and AsTER cardiac rehabilitation system,
• Control using a computer through the RS-232 port,
• Braking: a processor-controlled brake with torque measurement,
• Load range: 25 - 1000 W,
• Speed ​​range: 20 - 150 rpm,
• Load independent of the number of turns,
• Built-in ECG module,
• 12 standard leads in diagnostic mode,
• 2 leads in training mode,
• Sensitivity 2,5 / 5/10/20 mm / mV,
• Shift 25/50/100 mm / s,
• Digital filters 25 Hz, 35 Hz, 50 Hz, anti-frit filter,
• Digital filter of the isoelectric line,
• Measuring range HR 15-240 bpm,
• Maximum patient weight 200 kg,
• Power supply: 230 V, 50 Hz, 60VA,
• Dimensions: (LxWxH) 1190x600x1370 mm.

• excellent quality of ECG waveforms thanks to the use of digital filters eliminating the swimming of the isoelectric line and disruption of muscle origin,
• uninterrupted recording and presentation of 12-lead ECG signal,
• presentation of averaged P-QRS-T units with 12 leads along with the results of ST level and slope measurements,
• automatic HR measurement, ST level and ST segment slope,
• automatic control of cycloergometer and treadmill load,
• archiving and printing of the research report,
• automatic determination of measuring points with the possibility of manual correction,
• automatic arrhythmia analysis,
• presentation of parameters regarding: test phase, current load, stage time and total effort time,
• monitored parameters: rhythm rate, MET, double product, blood pressure, level, ST segment slope and load,
• real-time ECG printout,
• preview of trends of all measured parameters during the test,
• alarm system for monitored parameters and arrhythmia,
• an option to automatically measure blood pressure,
• archiving and printing a report enabling a reliable assessment of the study (such an report contains ECG, average P-QRS-T assemblies and a table with measurement results),
• standard test protocols and the ability to define your own protocols also in RAMP mode,
• preview the report on the screen before printing the report,
• function of reanalysis of the performed test,
• presentation of 3D trends illustrating ST segment changes.
