Barco MDAC-8355
$0.00
Shipped From Abroad

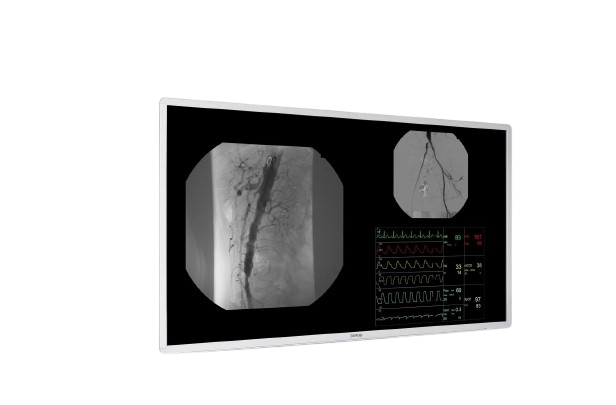

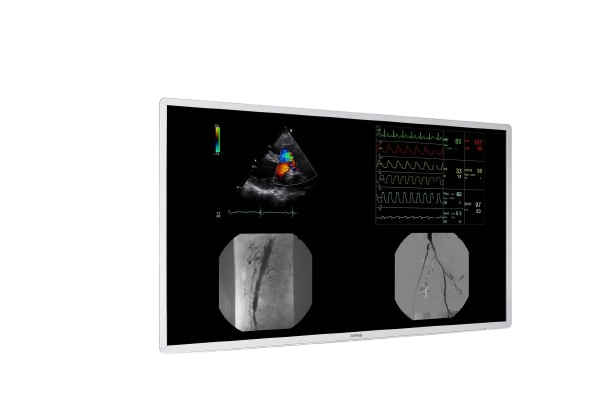

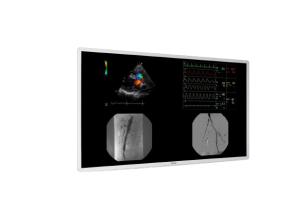

The Barco MDAC-8355 is a 55-inch UHD medical-grade display designed for surgical and diagnostic environments. With advanced IPS technology, wide viewing angles, accurate color reproduction, and protective glass, it ensures exceptional image clarity, safety, and reliability for critical medical workflows.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
The Barco MDAC-8355 is a 55-inch 4K UHD medical display engineered for surgical precision and clinical accuracy. Featuring IPS technology, 1.07 billion colors, DICOM compliance, and advanced calibration, it delivers unmatched image quality in operating rooms and diagnostic environments. With failover capability, scratch-resistant AR protective glass, versatile video inputs, and ergonomic design, it enhances workflow efficiency while ensuring long-term reliability. Built for demanding healthcare settings, the MDAC-8355 combines cutting-edge technology, durability, and compliance with international medical safety standards.
With its unique in-built internal picture composition capability, the MDAC-8355 is suitable for displaying multi-modality images from a wider range of image-guided systems.
The MDAC-8355 can be integrated into your image-guided system to support clinical teams (within interventional radiology, cardiology, radiation oncology, NIR-guided surgery, and endovascular robotics) who perform both routine and complex procedures where high quality, clean, sharp, and more defined multi-modality images need to be displayed simultaneously. It can be wall- or ceiling-mounted and packaged for specific clinical applications on a medical cart.
With lifetime luminance stability and DICOM calibration assured, clinical teams who make fast decisions during image-guided procedures can work with an optimal viewing experience.
Features
-
55-inch UHD (3840 × 2160) resolution for exceptional clarity
-
IPS technology with wide 178° viewing angles
-
1.07 billion colors with 10-bit depth
-
Calibrated luminance of 350 cd/m² @ 6500K
-
DICOM compliance with gamma adjustment 1.0–4.0
-
Scratch-resistant anti-reflective protective glass
-
Failover support for uninterrupted operation (SPIB)
-
Multiple input options: DVI (dual/single/quadrant), DisplayPort 1.2
-
Durable housing in black or white finish
-
VESA mount compatibility for flexible installation
Specifications
| Category | Specification |
|---|---|
| Screen Technology | a-Si TFT active matrix, IPS |
| Active Screen Size (Diagonal) | 54.6″ (1388 mm) |
| Active Screen Size (H × V) | 1210 × 680 mm |
| Aspect Ratio | 16:9 |
| Resolution | UHD (3840 × 2160 pixels) |
| Pixel Pitch | 0.3150 mm |
| Color Support | 1.07 billion colors (10-bit) |
| Viewing Angle | 178° |
| Luminance | 350 cd/m² calibrated @ 6500K |
| Contrast Ratio | 1100:1 (typical) |
| Response Time | 8 ms (typical) |
| White Point | 2000K to 12000K (default 6500K) |
| Look-up Table | Native, DICOM, Gamma, User |
| Gamma Curve | 1.0 – 4.0 (step 0.1), default 2.4 |
| Front Protection | Scratch-resistant 2-side AR glass |
| Video Inputs | DVI Dual Link (2 inputs, full screen) DVI Single Link (4 inputs, full screen) DVI Single Link (4 Quadrant Drive, independent sources) DP 1.2 SST (Full Screen 4K native / 2K upscaled) |
| Features | Option SPIB: Failover (auto DVI if no DP) Option SPIW: Internal Picture Composition |
| Remote Control | Option SPIB: N/A Option SPIW: Infrared remote control |
| Power Supply | 90–264 VAC, 50/60 Hz |
| Power Consumption | 135 W (max) 25 W (stand-by) |
| Housing Color | SPIB: Black SPIW: White |
| Dimensions (W × H × D) | 1260 × 734 × 87 mm |
| Net Weight | 34 kg |
| Packaged Weight | 40 kg |
| Mounting Standard | VESA 200 × 200 mm & 600 × 200 mm |
| Operating Temperature | +5 °C to +35 °C |
| Storage Temperature | –20 °C to +60 °C |
| Operating Humidity | 10% to 80% |
| Storage Humidity | 10% to 90% RH (non-condensing) |
| Certification & Compliance | IEC 62368-1:2018 EN 62368-1:2020 + A11:2020 IEC 60601-1:2005 + A1:2012 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:14 IEC 60601-1-2: 2014 (ed.4) EN 60601-1-2:2015 (ed.4) + A1:2021 CISPR 11 Class B FCC Part 15 Class B ICES-003 Level B GB4943.1-2011; GB9254-2008; GB17625.1-2012 |
| Green Compliance | RoHS (2011/65/EU + Directive (EU) 2015/863), REACH, WEEE |
| Protection Rating | IP20 (IP45 front side) |
| Warranty | 3 years |
