New

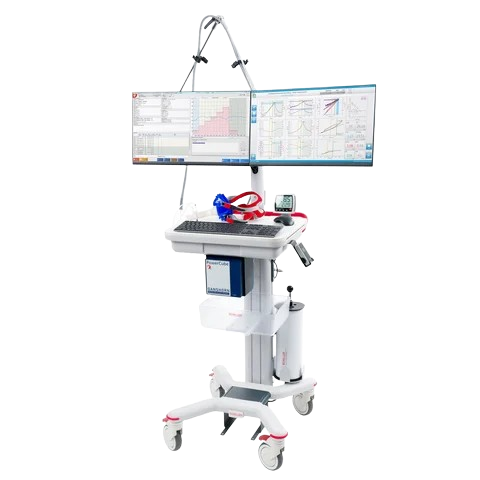

CARDIOVIT CS-200 Office ErgoSpiro
$0.00
Shipped From Abroad
The CARDIOVIT CS-200 Office ErgoSpiro is a cardiopulmonary exercise testing (CPET) system that combines breath-by-breath gas analysis with a diagnostic-quality 12-lead exercise ECG. It is suitable for both clinical patients and high-performance athletes.
Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.
Description
This system integrates respiratory gas measurement (VE, VOâ‚‚, VCOâ‚‚) via an ultrasonic COâ‚‚ cell and pneumotach-based flow/volume measurement with a fully integrated 12-lead exercise ECG. It supports ATS/ERS-compliant protocols, automatic blood-pressure measurement, an optional SpOâ‚‚ module, and athlete-specific interpretation (ETM Sport). Ideal for cardiac rehabilitation, sports medicine, exercise physiology, and cardiology departments, it allows a wide range of subjects – from general clinical patients to elite athletes – to be tested under one unified workflow.
The CARDIOVIT CS-200 Office ErgoSpiro performs cardiopulmonary exercise tests (CPET) according to the latest ATS/ERS guidelines.
The metabolic tests combined with diagnostic-quality 12-lead exercise ECG are suitable for a wide range of subjects, from clinical patients to high-performance athletes. The PWC Ergo forms the heart of the system. Together with the pneumotach, it ensures the highest possible accuracy.
Features
- Breath-by-breath gas exchange analysis (VE, VO2, VCO2) with a unique maintenance-free ultrasonic cell for CO2 measurement; easy, quick, and fully assisted calibration for highly accurate measurements; charts and data display through standard or user-defined 9-panel
- Fully integrated 12-lead exercise ECG with wireless acquisition improves patient comfort
- Full disclosure storage of unfiltered, continuous ECG signals
- Resting ECG with ETM automatic interpretation; ETM Sport for interpretation of athletes’ hearts
- Automatic blood pressure measurement with an optional built-in SpO2Â module from the BP-200 plus
- Optional LFSport for the performance assessment and exercise scheduler are two comprehensive features for use in sports medicine
Technical Specifications
| Parameter | Specification (typical) |
|---|---|
| Trolley Dimensions | Approx. 1400 × 631 × 590 mm (height with monitor ~1600 mm) |
| System Weight | Approx. 35 kg fully equipped |
| Operating System | Windows® Embedded / PC platform with full networking |
| Gas Measurement – O₂ | Electrochemical fuel cell; measurement range 0–40 % O₂ |
| Gas Measurement – CO₂ | Ultrasonic cell; measurement range 0–15 % CO₂; rise time <100 ms |
| Flow/Volume Measurement | Pneumotach; flow range ~0 to ±18 L/s; accuracy < ±3% or 50 mL/s (whichever greater) |
| Standards Compliance | ATS/ERS cardiopulmonary testing guidelines |
| Network / Connectivity | WiFi (dual-band) + LAN; Bluetooth; multiple USB ports |
