ENT

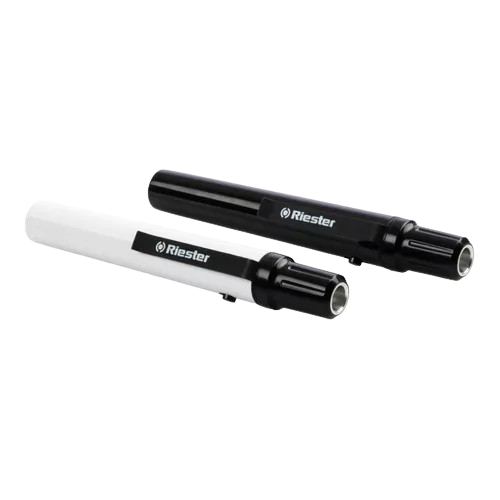

e-xam® diagnostic penlight

Brands: Riester

~~$0.00~~

Shipped From Abroad

e-xam® diagnostic penlight is exceptionally bright, with all possible combinations to illuminate body openings such as the throat, nose and ears, for pupil examination and general use. The e-xam® is equipped with a xenon lamp or LED lamp with AA size handles for use with alkaline batteries.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Riester

Description
Reviews (0)

Description

The e-xam® diagnostic penlight is a high-performance tool used by trained physicians and specialists for medical diagnosis, especially of the throat and pupil. Its design includes an inbuilt tongue depressor holder, making it highly functional for examining the oral cavity. The penlight is available with either high-performance LED or Xenon (XL) lamps.

e-xam® diagnostic penlight – details

Lamp head, LED
On/Off button
Battery Compartment
Tongue blade holder

Features and benefits

Photobiologically validated for the lighting of pupils according to EN 62471:2008
Pre-focused and even field of light
Bright and natural white light from high-performance LED
LED burns at least 20,000 hours
Low maintenance costs thanks to long LED and battery service lives

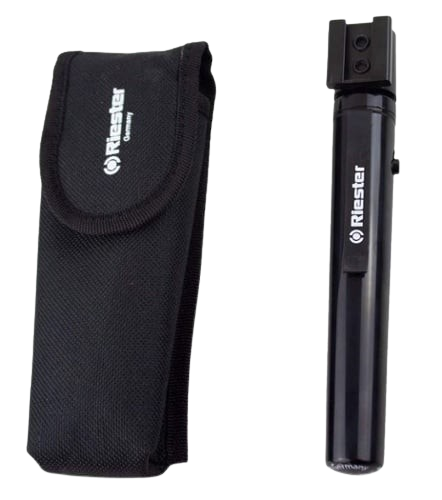

ABS casing with metal clip, disinfectable, easy to use with on/off switch, including blade holder, batteries, and nylon case

Product details

e-xam®

Dimension
Blade holder	Recording for wooden mouth spatula
The lamp for e-xam®	LED 2.5 V, 5000 – 5500 Kelvin, 180,000 Lux max. Xenon 2.5 V, 3500 – 4000 Kevin, 60,000 Lux max.
Light Field	LED 2.5 V, Approx. 11 cm Ø / distance 15 cm Xenon 2.5 V, Approx. 14 cm Ø / distance 15 cm
Batteries	2 Alkaline AA 1.5 V batteries
Ambient temperature	0 °C to 40 °C
Relative Humidity	30% to 70% non-condensing
Storage/ Transport Ambient temperature	-10 °C to 55 °C
Storage/ Transport relative Humidity	10% to 95% non-condensing

Download Riester e-xam Catalogue EN

Reviews

There are no reviews yet.

Be the first to review “e-xam® diagnostic penlight”

Quick Comparison

e-xam® diagnostic penlight remove ENTERWAVE remove Rigid scopes remove RZ Medizintechnik Complete Endoscopy Stack remove MIR Spirobank II Advance remove M.I One ENT Treatment Unit ( IU-3000) remove

Name e-xam® diagnostic penlight remove ENTERWAVE remove Rigid scopes remove RZ Medizintechnik Complete Endoscopy Stack remove MIR Spirobank II Advance remove M.I One ENT Treatment Unit ( IU-3000) remove


SKU SF103356013089-5 SF103356013089-3 SF1033560074 SF10335601291 SF10335601261

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad e-xam® diagnostic penlight is exceptionally bright, with all possible combinations to illuminate body openings such as the throat, nose and ears, for pupil examination and general use. The e-xam® is equipped with a xenon lamp or LED lamp with AA size handles for use with alkaline batteries.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Features

Safe, reliable and powerful
4 MHz radiofrequency – reduces lateral damage
130 Watts maximum output power
Neutral Electrode Safety System (NEMSY)
6 operating modes - soft and forced coagulation
Fine and heavy cutting modes
Bipolar cutting and coagulation modes
Finger and foot switch operation
Integrated power-off timer
High level of patient safety

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

RZ LED iLumen EndoVue 24"Features:
- 1920x1200 (WUXGA), 518x324mm, 16:10
- 178° viewing angle, 49 W
- 24 inch TFT LCD (LED)
- 1920 x 1200 pixel (WUXGA)
- 2 x DVI-D
- 1 x SD/HD/3G-SDI (BNC)
- 2 x SOG
- 1 x VGA (D-sub)
- 1 x C-Video (BNC)
- 1 x S-Video (DIN)
- 1 x Component (RGBS, YPbPr) (5 x BNC)

Delivery & Availability: Typically 14-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock

The new Spirobank II Advanced from MIR is a user-friendly, intuitively operable mobile spirometer that has enough storage space to record up to 10,000 tests and enables immediate diagnosis thanks to the traffic light display. Delivery & Availability: Typically 7-14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

The IU-3000 ENT treatment unit is ergonomically designed to simplify ENT procedures, vastly improve efficiency and reduce user fatigue in the ENT consulting / treatment room. Its additional storage space, articulated arm for Microscopy, CCU Camera, and various integrated functions makes it suitable for ENT consulting rooms Delivery & Availability: Typically 14-21 Working Days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

e-xam® diagnostic penlight – details

Lamp head, LED
On/Off button
Battery Compartment
Tongue blade holder

Features and benefits

Photobiologically validated for the lighting of pupils according to EN 62471:2008
Pre-focused and even field of light
Bright and natural white light from high-performance LED
LED burns at least 20,000 hours
Low maintenance costs thanks to long LED and battery service lives
ABS casing with metal clip, disinfectable, easy to use with on/off switch, including blade holder, batteries, and nylon case

Product details

e-xam®

Dimension
Blade holder	Recording for wooden mouth spatula
The lamp for e-xam®	LED 2.5 V, 5000 - 5500 Kelvin, 180,000 Lux max. Xenon 2.5 V, 3500 - 4000 Kevin, 60,000 Lux max.
Light Field	LED 2.5 V, Approx. 11 cm Ø / distance 15 cm Xenon 2.5 V, Approx. 14 cm Ø / distance 15 cm
Batteries	2 Alkaline AA 1.5 V batteries
Ambient temperature	0 °C to 40 °C
Relative Humidity	30% to 70% non-condensing
Storage/ Transport Ambient temperature	-10 °C to 55 °C
Storage/ Transport relative Humidity	10% to 95% non-condensing

Download Riester e-xam Catalogue EN

The ENTERWAVE is an intelligent, microprocessor controlled electrosurgical unit. Its ultra-high frequency design makes it highly suitable for various tissue volume reduction procedures and delicate surgical intervention. The ENTERWAVE is a versatile unit that has an extremely wide spectrum of clinical applications and guarantees fast tissue healing and quick patient recovery.

Technical specifications

Operating frequency

4 MHz

Modulation frequency

33 kHz

Patient safety

NEMSY (Neutral Electrode Safety System)

Activation

Dual Footswitch and Pencil with switch

Dimensions (W x D x H)

280 mm x 430 mm x 150 mm

Weight

12.7 kg

They are available in a large range of external diameters, from 1 to 12 mm. Commonly, rigid endoscopes have a series of high-resolution optical glass rod lenses.

Features

Robust construction
All endoscopes are Storz compatable
Available in a wide selection
Available for the sinus, ear and larynx in various angles of view

RZ LED iLumen EndoVue 24"

Features:

- 1920x1200 (WUXGA), 518x324mm, 16:10
- 178° viewing angle, 49 W
- 24 inch TFT LCD (LED)
- 1920 x 1200 pixel (WUXGA)
- 2 x DVI-D
- 1 x SD/HD/3G-SDI (BNC)
- 2 x SOG
- 1 x VGA (D-sub)
- 1 x C-Video (BNC)
- 1 x S-Video (DIN)
- 1 x Component (RGBS, YPbPr) (5 x BNC)

Full HD Digital Camera System F 1

Features:

3-Chip Full HD camera with latest MOS technology for brilliant picture quality
Pure Natural Colors technology

Multitude of digital video outputs for

best possible picture transmission to medical grade monitors
3 programmable remote control buttons User-friendly multilingual menu allows a large variety of setups for individual procedures and surgeons preferences
Full HD 60fps video recording
Full HD image saving
USB pen drive included
Boost function
On-screen-menu
3 user settings storable
5x digital zoom

Freeze function

LUMEN LED 1 High Intensity Light Source 180W

Features:

More than 10.000h lamp lifetime
Latest PHASER® – Technology
Waterproof touch control panel
High color rendering
High luminance
Daylight color temperature
Low noise level
No UV or IR light
Low power consumption
Video-IN terminal - 1 x VHS (BNC)

Color temperature - 6000 – 6500° K

AIRFLOW A2 INSUFFLATOR

Feature:

Gas Flow - 20L/min
User-friendly interface
Highest safety standard for patients
Available with CO2 heating system
Pre-insufflation mode for use with Verres Cannulas
Non-heating unit features same gasflow rates as heating unit models
Gas connection - UNF 7/16“ male
Gas - Medical Grade Carbon Dioxide.

**SUCTION AND IRRIGATION PUMP P1000

Feature:

Double roll pump for precise suction- and irrigation during Laparoscopic surgeries
Also for extraction of smoke gases that arise when using lasers and HF devices
Optional footswitch for comfortable operation during surgery
Permits dispensing with mechanically sensitive trumpet valves that require elaborate cleaning
Independently digital pre-settings for maximum suction and irrigation pressures
Digital display of actual suction and irrigation pressures
High efficiency with rates up to 3L/min
Color coded tubing sets
Standby function
Irrigation Power - 0 - 3.0 ml/min
Suction Power - 0 - 3.0 ml/min
Pressure - 0 - 750 mmHg.

**DIATHERMY MACHINE 200W

Feature:

Stable and Powerful Generators,
Highest patient safety through REM system
Digital value indicator of chosen power output
Monopolar and Bipolar applications
Activation through Hand- or Footswitch
Safe application through color-coded membrane keypad
Max output power CUT 200W – 250Ω
Max output power ENHANCED 120W – 250Ω
Max output power BLEND120W – 200Ω

Max output power FORCED COAG 150W – 150Ω
Max output power SOFT COAG 90W – 100Ω
Max output power BIPOLAR COAG 80W – 50Ω
Working frequency 600 kHz
Patient circuit F
Mains voltage 115-230 Vac
Mains frequency 50-60 Hz

Electrical input power 350 VA

HIGH-END TROLLEY

Feature:

Power columns for cables
Endoscope Holder
Variable height support arms
Conductive rolls
Optional doors and rear panel in order to protect valuable equipment
Optional main on/off switch

Accessory

Fibre Optic Light Guide Cable Ø 4,8mm, 3000mm
Adaptor for Fibre Optic light guide Type RZ/Storz - connection to unit

TV-adapter for RZ HD 3-Chip camera f=28mm, C-Mount, soakable

Click Here To Download Catalogue

The new Spirobank II Advanced from MIR is a user-friendly, intuitively operable mobile spirometer that has enough storage space to record up to 10,000 tests and enables immediate diagnosis thanks to the traffic light display. The real-time spirometry curve allows the results to be evaluated directly on the device.

MIR Spirobank II Advance Specifications

Bluetooth 2.1.
Portable spirometer with high resolution display.
Quick and intuitive to use thanks to function keys with symbols.
User-friendly technology.
Backlighting enables use in emergency medicine.
With traffic light display.
Spirometry analysis also possible directly on the display.
Storage space for up to 10,000 spirometry exams.
With integrated, powerful battery (approx. 40 operating hours).
USB connection for data transfer.
Estimated lung age (ELA).
With motivational images for children.
Optionally available with reusable or disposable turbines.
Includes WinspiroPRO software.
LCD display with backlight, resolution: 160 x 18.
3.7 V lithium battery, rechargeable.
Temperature sensor: semiconducting (0 – 45 ° C).
Flow sensor: bi-directional digital turbine.
Capacity: 10 liters.
Dimensions: 16.0 x 5.5 x 2.5 cm.

Click Here To Download Catalogue

- Ergonomic design for user friendly  
- Emergency function (Forced working by push the button in case of problem happen)
- No hassle & advance quality Spray  
- Various storage spaces by one touch  
- Meet the latest safety regulation  
- Two color Choice (Charcoal, White)

Technical Specification: Power Source: 220V AC, 50/60Hz Power Consumption: 1.5kW Compressor Motor: 0.9~2.0kg/cm² Suction Motor: Max. Vacuum 680mmHG Anit-Fog Device: 330W Device Control Switch: Water Resistant, Sound Effect Option: Monitor with arm Set, Side Can, Sub Table, Doctor Chair, Patient Chair Dimension: W1096xD737xH890 Weight: 110kg Standard Component Spray (3ea) Suction (2ea) Ventilator Post Pole (max 2ea, Straight/Curved) Medicine Bottle (6ea) Medicine Bottle Tray (Option, 14ea) Internal Instrument (eating) External Instrument Tray Heater Pen Light Outlet (6ea) 100mm Can (2ea) 83mm Can (12ea) 53mm Can (2ea)
