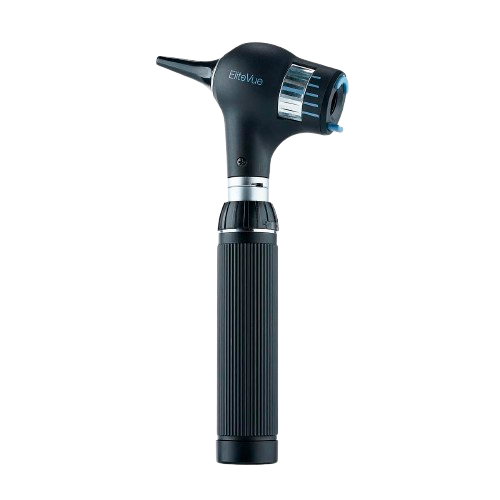

EliteVue Macro Otoscope

Brands: Riester

~~$0.00~~

Shipped From Abroad

EliteVue offers a 5x magnification and a field diameter of 11 mm at a distance of about 20 mm. Twice the field of view provides a complete view of the auditory canal and tympanic membrane and eliminates the need for panning the otoscope, supporting a more efficient diagnosis.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Riester

Description
Reviews (0)

Description

Riester’s top-of-the-line EliteVue Macro Otoscope provides 66% greater magnification (5x) and twice the field of view compared to standard otoscopes, ensuring a complete and efficient examination of the auditory canal and tympanic membrane. The manual focus wheel adjusts for varying ear canal lengths, and the innovative SpecEject® feature minimizes cross-contamination, making it a powerful and safety-conscious choice for professional diagnostics.

EliteVue details

Throat illumination through a fibre optic ring
Disposable or reusable specula
Insufflation port for pneumatic otoscopy
Battery compartment, black chrome-plated metal handles
Default focus position (catch)
The focus wheel allows for adjustment for variable ear canal lengths and long-sighted eyes
Spectacle protection
SpecEject® button

Features and benefits

Features 5x magnification and a manual focus wheel
Offers 66% greater magnification when compared to standard otoscopes
Shows twice the field of view
Specula ejection feature to reduce cross-contamination
Innovative LED illumination or Xenon illumination
High-performance fiber optic lighting
Suitable for throat illumination
Various options for battery power

Specifiations

Dimension
5x magnification	The lens system offers 5x magnification and a field of view of 11 mm in diameter at a distance of about 20 mm.
The lamp for EliteVue XL	XL 2.5 V, 2.5 V, 750 mA, average life span 16.5 h XL 3.5 V, 3.5 V, 720 mA, average life span 15 h
The lamp for EliteVue LED	LED 2.5 V, 2.5 V, 300 mA, average life span up to 100,000 h LED 3.5 V, 3.5 V, 300 mA, average life span up to 100,000 h
Ambient temperature	0 °C to 40 °C
Relative Humidity	30% to 70% noncondensing
Storage/ Transport Ambient temperature	-10 °C to 55 °C
Storage/ Transport relative Humidity	10% to 95% noncondensing
Air pressure	800 hPa – 1100 hPa

Reviews

There are no reviews yet.

Be the first to review “EliteVue Macro Otoscope”

Quick Comparison

EliteVue Macro Otoscope remove MIR Spirodoc – Spirometer with Oximeter remove RZ Medizintechnik Complete Endoscopy Stack remove Hersill V7 Plus B Emergency High Vacuum Portable Suction Machine remove MIR Spirobank II Advance remove Flexible Endoscope remove

Name EliteVue Macro Otoscope remove MIR Spirodoc – Spirometer with Oximeter remove RZ Medizintechnik Complete Endoscopy Stack remove Hersill V7 Plus B Emergency High Vacuum Portable Suction Machine remove MIR Spirobank II Advance remove Flexible Endoscope remove


SKU SF10335601290 SF1033560074 SF1033560450-6 SF10335601291 SF103356013089-2

Rating

Price

~~$0.00~~

Stock

Availability

Add to cart

Description

Shipped From Abroad EliteVue offers a 5x magnification and a field diameter of 11 mm at a distance of about 20 mm. Twice the field of view provides a complete view of the auditory canal and tympanic membrane and eliminates the need for panning the otoscope, supporting a more efficient diagnosis.

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock

The MIR Spirodoc™ Touchscreen Spirometer with Oximeter is a high quality, portable spirometer used for measuring lung function, as well as measuring oxygen saturation. Delivery & Availability: Typically 7-14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

RZ LED iLumen EndoVue 24"Features:
- 1920x1200 (WUXGA), 518x324mm, 16:10
- 178° viewing angle, 49 W
- 24 inch TFT LCD (LED)
- 1920 x 1200 pixel (WUXGA)
- 2 x DVI-D
- 1 x SD/HD/3G-SDI (BNC)
- 2 x SOG
- 1 x VGA (D-sub)
- 1 x C-Video (BNC)
- 1 x S-Video (DIN)
- 1 x Component (RGBS, YPbPr) (5 x BNC)

Delivery & Availability: Typically 14-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped from Abroad The V7 range of high vacuum portable suction units are ideal for use in healthcare facilities (surgery, gynaecology, ENT), homes, ambulances, transportation and use in emergency situations. Delivery & Availability: Typically 21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

In Stock

The new Spirobank II Advanced from MIR is a user-friendly, intuitively operable mobile spirometer that has enough storage space to record up to 10,000 tests and enables immediate diagnosis thanks to the traffic light display. Delivery & Availability: Typically 7-14 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Shipped From Abroad

Features

Crystal clear optics
Precise motion for perfect control
The flexible tip can be moved 130°
Waterproof design
Supplied in a carrying case with leak tester and Storz/Wolf adaptors

Delivery & Availability: Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Content

Riester's top-of-the-line EliteVue Macro Otoscope provides 66% greater magnification (5x) and twice the field of view compared to standard otoscopes, ensuring a complete and efficient examination of the auditory canal and tympanic membrane. The manual focus wheel adjusts for varying ear canal lengths, and the innovative SpecEject® feature minimizes cross-contamination, making it a powerful and safety-conscious choice for professional diagnostics.

EliteVue details

Throat illumination through a fibre optic ring
Disposable or reusable specula
Insufflation port for pneumatic otoscopy
Battery compartment, black chrome-plated metal handles
Default focus position (catch)
The focus wheel allows for adjustment for variable ear canal lengths and long-sighted eyes
Spectacle protection
SpecEject® button

Features and benefits

Features 5x magnification and a manual focus wheel
Offers 66% greater magnification when compared to standard otoscopes
Shows twice the field of view
Specula ejection feature to reduce cross-contamination
Innovative LED illumination or Xenon illumination
High-performance fiber optic lighting
Suitable for throat illumination
Various options for battery power

Specifiations

Dimension
5x magnification	The lens system offers 5x magnification and a field of view of 11 mm in diameter at a distance of about 20 mm.
The lamp for EliteVue XL	XL 2.5 V, 2.5 V, 750 mA, average life span 16.5 h XL 3.5 V, 3.5 V, 720 mA, average life span 15 h
The lamp for EliteVue LED	LED 2.5 V, 2.5 V, 300 mA, average life span up to 100,000 h LED 3.5 V, 3.5 V, 300 mA, average life span up to 100,000 h
Ambient temperature	0 °C to 40 °C
Relative Humidity	30% to 70% noncondensing
Storage/ Transport Ambient temperature	-10 °C to 55 °C
Storage/ Transport relative Humidity	10% to 95% noncondensing
Air pressure	800 hPa - 1100 hPa

The MIR Spirodoc™ Touchscreen Spirometer with Oximeter is a high quality, portable spirometer used for measuring lung function, as well as measuring oxygen saturation. The Touchscreen Spirometer is ideal for lung and asthma specialty offices, as well as hospitals and clinics.The Desktop Spirometer features a bright, easy to read backlit LCD touchscreen display and a flowmeter head which can detach from the touchscreen to facilitate an oximetry test.

Features:

Touch screen.
Non-invasive.
Detachable flowmeter head to facilitate oximetry tests.
Spot oximetry test.
24 hour Holter test.
Patient eDiary.
On-screen results and curves preview for immediate data assessment.
Home care symptoms diary.
6MWT (6-Minute Walk Test).
Triaxial Accelerometer.
Capable of sleep desaturation study.
Respiratory Rehabilitation Monitoring.
Activity Monitoring.
Long life, rechargeable battery.
Traffic light health indicator for immediate test interpretation.
Wireless real time test on PC via Bluetooth.
May be used for both home and office use.

MIR Spirodoc Specifications:

Unit:
- Display: LCD backlit touch screen.
- Resolution: 128 x 64 pixels.
- Power Supply: Lithium Ion 3.7 V 1100 mA rechargeable battery.
- Data Transmission: USB 2.0 on-the-go and Bluetooth 2.1.
- Accelerometer: Triaxial ± 2 g. 400 Hz sampling.
- Dimensions: 101 mm x 48 mm x 16 mm.
- Weight: 0.22 lb (99 g).
- Removable Turbine Head Dimensions: 46 mm x 47 mm x 24 mm.
- Removable Turbine Head Weight: 17 g.
Spirometer:
- Flow Sensor: Bi-directional digital turbine.
- Flow Range: ± 16 L/s.
- Volume Accuracy: ± 3% or 50 mL, whichever is greater.
- Flow Accuracy: ± 5% or 200 mL/s, whichever is greater.
- Dynamic Resistance at 12 L/s: < 0.5 cmH₂O/L/s.
- Temperature Sensor: Semiconductor (0 - 45 degrees C).
Pulse-Oximeter:
- SpO₂ Range: 0 - 99%.
- SpO₂ Accuracy: ± 2 % (70 - 99% SpO₂).
- Heart Rate Range: 30 - 254 BPM.
- Heart Rate Accuracy: ± 2 BPM or 2%, whichever is greater.

Click Here To Download Catalogue

RZ LED iLumen EndoVue 24"

Features:

- 1920x1200 (WUXGA), 518x324mm, 16:10
- 178° viewing angle, 49 W
- 24 inch TFT LCD (LED)
- 1920 x 1200 pixel (WUXGA)
- 2 x DVI-D
- 1 x SD/HD/3G-SDI (BNC)
- 2 x SOG
- 1 x VGA (D-sub)
- 1 x C-Video (BNC)
- 1 x S-Video (DIN)
- 1 x Component (RGBS, YPbPr) (5 x BNC)

Full HD Digital Camera System F 1

Features:

3-Chip Full HD camera with latest MOS technology for brilliant picture quality
Pure Natural Colors technology

Multitude of digital video outputs for

best possible picture transmission to medical grade monitors
3 programmable remote control buttons User-friendly multilingual menu allows a large variety of setups for individual procedures and surgeons preferences
Full HD 60fps video recording
Full HD image saving
USB pen drive included
Boost function
On-screen-menu
3 user settings storable
5x digital zoom

Freeze function

LUMEN LED 1 High Intensity Light Source 180W

Features:

More than 10.000h lamp lifetime
Latest PHASER® – Technology
Waterproof touch control panel
High color rendering
High luminance
Daylight color temperature
Low noise level
No UV or IR light
Low power consumption
Video-IN terminal - 1 x VHS (BNC)

Color temperature - 6000 – 6500° K

AIRFLOW A2 INSUFFLATOR

Feature:

Gas Flow - 20L/min
User-friendly interface
Highest safety standard for patients
Available with CO2 heating system
Pre-insufflation mode for use with Verres Cannulas
Non-heating unit features same gasflow rates as heating unit models
Gas connection - UNF 7/16“ male
Gas - Medical Grade Carbon Dioxide.

**SUCTION AND IRRIGATION PUMP P1000

Feature:

Double roll pump for precise suction- and irrigation during Laparoscopic surgeries
Also for extraction of smoke gases that arise when using lasers and HF devices
Optional footswitch for comfortable operation during surgery
Permits dispensing with mechanically sensitive trumpet valves that require elaborate cleaning
Independently digital pre-settings for maximum suction and irrigation pressures
Digital display of actual suction and irrigation pressures
High efficiency with rates up to 3L/min
Color coded tubing sets
Standby function
Irrigation Power - 0 - 3.0 ml/min
Suction Power - 0 - 3.0 ml/min
Pressure - 0 - 750 mmHg.

**DIATHERMY MACHINE 200W

Feature:

Stable and Powerful Generators,
Highest patient safety through REM system
Digital value indicator of chosen power output
Monopolar and Bipolar applications
Activation through Hand- or Footswitch
Safe application through color-coded membrane keypad
Max output power CUT 200W – 250Ω
Max output power ENHANCED 120W – 250Ω
Max output power BLEND120W – 200Ω

Max output power FORCED COAG 150W – 150Ω
Max output power SOFT COAG 90W – 100Ω
Max output power BIPOLAR COAG 80W – 50Ω
Working frequency 600 kHz
Patient circuit F
Mains voltage 115-230 Vac
Mains frequency 50-60 Hz

Electrical input power 350 VA

HIGH-END TROLLEY

Feature:

Power columns for cables
Endoscope Holder
Variable height support arms
Conductive rolls
Optional doors and rear panel in order to protect valuable equipment
Optional main on/off switch

Accessory

Fibre Optic Light Guide Cable Ø 4,8mm, 3000mm
Adaptor for Fibre Optic light guide Type RZ/Storz - connection to unit

TV-adapter for RZ HD 3-Chip camera f=28mm, C-Mount, soakable

Click Here To Download Catalogue

The V7 range of high vacuum portable suction units are ideal for use in healthcare facilities (surgery, gynaecology, ENT), homes, ambulances, transportation and use in emergency situations. Features:

ABS ergonomical case and ancorage system tested to 10 g.
Long life medical grade piston type suction pump. Oil-free and maintenance-free.
Vacuum gauge of 0-100 kPa (0-760 mmHg).
Precise and stable vacuum control knob.
Indicator lights: ON, flashing, vacuum level, vacuum indicator and battery status.
Maximum noise level: 49 + 1,5 dB (depending on model).
Battery for long duration autonomy (consult models in which it is included). LED battery level lights.
Collection jar with overflow safety valve in polycarbonate or polysulfone of 1 L (useful capacity 0.75 L) PC1/PSU1 or 1.75 L (useful capacity 1.30 L) -PC2/PSU2.
Also available with holders compatible with the main disposable canister
Hydrophobic bacteria filter, made of PTFE. With an efficiency of 99% in the retention of particles and bacteria of 99.99%. With PVC suction tube.
ON/OFF swith with moisture protection.
Equipment dimensions: 385 x 155 x 255 mm.

Technical Specifications:

Power supply	Flow rate	Maximum vacuum
V7 ac	220 V_aC 250 W	20 L/min	80 kPa 600 mmHg
V7 dc	12 V_DC 18 W	14 L/min	75 kPa 562 mmHg
V7 plus ac	220 V_AC 120 W	30 L/min	84 kPa 630 mmHg
V7 plus dc	12 V_DC 85 W	30 L/min	84 kPa 630 mmHg
V7 plus b	12 V_DC 85 W Battery	30 L/min	84 kPa 630 mmHg
V7 plus b emergency	12 V_DC 85 W Battery	30 L/min	84 kPa 630 mmHg
V7 mx	110/240 V_ac 12 V_DC 160 W (AC) / 84 W (DC) Battery	30 L/min	84 kPa 630 mmHg

Click Here To Download Catalogue

The new Spirobank II Advanced from MIR is a user-friendly, intuitively operable mobile spirometer that has enough storage space to record up to 10,000 tests and enables immediate diagnosis thanks to the traffic light display. The real-time spirometry curve allows the results to be evaluated directly on the device.

MIR Spirobank II Advance Specifications

Bluetooth 2.1.
Portable spirometer with high resolution display.
Quick and intuitive to use thanks to function keys with symbols.
User-friendly technology.
Backlighting enables use in emergency medicine.
With traffic light display.
Spirometry analysis also possible directly on the display.
Storage space for up to 10,000 spirometry exams.
With integrated, powerful battery (approx. 40 operating hours).
USB connection for data transfer.
Estimated lung age (ELA).
With motivational images for children.
Optionally available with reusable or disposable turbines.
Includes WinspiroPRO software.
LCD display with backlight, resolution: 160 x 18.
3.7 V lithium battery, rechargeable.
Temperature sensor: semiconducting (0 – 45 ° C).
Flow sensor: bi-directional digital turbine.
Capacity: 10 liters.
Dimensions: 16.0 x 5.5 x 2.5 cm.

Click Here To Download Catalogue

The flexible Naso-Pharyngo-Laryngoscope is manufactured in Germany to the highest of standards. It is highly suitable for both adult and paediatric use. The high resolution, crystal clear optics ensure sharp image quality. The flexible tip can be moved 150° using the scope’s mechanism. Technical Specifications

Total length

530 mm

Working length

300 mm

Flexible part diameter

3.4 mm or 2.8 mm

Angle deflection

up 150°, down 150°

Angle of vision

70°

Depth of focus

5-50 mm

Weight N/A N/A N/A N/A N/A N/A

Dimensions N/A N/A N/A N/A N/A N/A

Additional information

EliteVue Macro Otoscope

Description

EliteVue details

Features and benefits

Specifiations

Reviews

Quick Comparison

EliteVue details

Features and benefits

Specifiations

Click Here To Download Catalogue

RZ LED iLumen EndoVue 24"

Features:

Full HD Digital Camera System F 1

Features:

LUMEN LED 1 High Intensity Light Source 180W

Features:

AIRFLOW A2 INSUFFLATOR

Feature:

**SUCTION AND IRRIGATION PUMP P1000

Feature:

**DIATHERMY MACHINE 200W

Feature:

HIGH-END TROLLEY

Feature:

Accessory

Click Here To Download Catalogue

Click Here To Download Catalogue

MIR Spirobank II Advance Specifications

Click Here To Download Catalogue

M.I One ENT Treatment Chair (IC-3000)

MIR Spirobank II Advanced Bluetooth Smart

MIR Spirobank Smart

Endocontainer

RZ Medizintechnik Complete Endoscopy Stack

MIR Spirodoc – Spirometer with Oximeter

MIR Minispir New Spirometer

ENTERWAVE mini

Flexible Endoscope

EliteVue Macro Otoscope

Description

EliteVue details

Features and benefits

Specifiations

Reviews

Quick Comparison

EliteVue details

Features and benefits

Specifiations

RZ LED iLumen EndoVue 24"

Features:

Full HD Digital Camera System F 1

Features:

LUMEN LED 1 High Intensity Light Source 180W

Features:

AIRFLOW A2 INSUFFLATOR

Feature:

**SUCTION AND IRRIGATION PUMP P1000

Feature:

**DIATHERMY MACHINE 200W

Feature:

HIGH-END TROLLEY

Feature:

Accessory

MIR Spirobank II Advance Specifications

Related products
