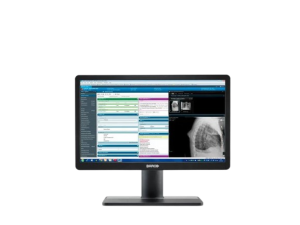

Eonis 22″ (MDRC‑2422)

The Eonis 22" brings reliable, DICOM-compliant images to a broad palette of imaging applications, including EMR. It combines consistent image quality and an attractive, versatile design with effortless quality assurance.

Easy collaboration with consistent images

Automated quality assurance

Fit for clinical review

Variants

• MDRC-2422 (Option SNIB): standard brightness, no cover, no touchscreen, internal power supply, black housing
• MDRC-2422 (Option STIB): standard brightness, no cover, touchscreen, internal power supply, black housing
• MDRC-2422 (Option SNEW): standard brightness, no cover, no touchscreen, external power supply, white housing
• MDRC-2422 (Option SPEW): standard brightness, protective cover, no touchscreen, external power supply, white housing

A+ ecolabel for Eonis 22”

• High energy efficiency & possibility to automatically switch to standby mode when the device is not in use
• >65% halogen-free PCBs and >50% halogen-free cables
• Recycled aluminium
• Full cardboard packaging, containing >58% recycled content
• Unpainted housing

Key Features

• 22″ Full HD (1920 × 1080) clinical review display

• DICOM-calibrated grayscale and color support

• Front consistency sensor for automatic image uniformity

• QAWeb enterprise support for calibration and monitoring

• LED-backlit panel with stable luminance

• Adjustable stand: tilt, height, pivot

• Multiple video inputs (DisplayPort, DVI, HDMI)

• VESA mounting compatibility

• Compact footprint and medical-grade housing

Technical Specifications

• fully compatible with Microsoft Windows environment
• unbeatable tool for alternative placement of electrodes
• independent analysis of the ST segment in all recorded channels, the positioning of all measurement points is user-reconfigurable and may depend on heart rate
• simultaneous arrhythmia detection in all three channels
• automatic signal calibration independent in all channels assures the use of all dynamic range available
• detection, reviewing and editing capability in the qualitative assessment of VE, VT, Single SVE, PSVT, Pauses, Irregular Rhythm, VT, IVR, Brady - and Tachycardia, Couplets, ST-segment elevation and depression, Maximum, Minimum and averaged Heart Rates, artifacts
• validation tool for beat classification making the correction easy and effective
• tabular hourly summaries all quantitative results
• printing of all recorded ECG signal available

• 12-channel digital registration of the ECG signal
• 10-lead patient cable
• registration time: 48 hours or 7 days on SD card
• built-in the real time clock
• EVENT button
• pacemaker detection
• dimensions: 72x76x23 mm

Click Here To Download Catalogue

• Simultaneous registration and observation of ECG signal from all 12 leads on PC screen,
• Automatic measurement of HR, ST level and slope,
• Printing and archiving examination report which contains: patient's data, the full disclosure ECG of the whole recording, selected strips, average P-QRS-T complexes, table summary, load value, HR, ST level and slope,
• RAMP protocol
• PMHR control
• Digital filtration of mains disturbances
• Digital filtration of muscle origin disturbances
• Resting examination: 12, 6 or 3-channel in manual or automatic mode
• Automatic regulation of isoelectric line position in the middle of registration channel
• Automatic elimination of isoelectric line migration

• excellent quality of ECG waveforms thanks to the use of digital filters eliminating the swimming of the isoelectric line and disruption of muscle origin,
• uninterrupted recording and presentation of 12-lead ECG signal, presentation of averaged P-QRS-T units with 12 leads along with the results of ST level and slope measurements,
• automatic HR measurement, ST level and ST segment slope,

• automatic control of cycloergometer and treadmill load,
• archiving and printing of the research report,
• automatic determination of measuring points with the possibility of manual correction,
• automatic arrhythmia analysis,
• presentation of parameters regarding: test phase, current load, stage time and total effort time,
• monitored parameters: rhythm rate, MET, double product, blood pressure, level, ST segment slope and load,
• real-time ECG printout,
• preview of trends of all measured parameters during the test,
• alarm system for monitored parameters and arrhythmia,
• an option to automatically measure blood pressure,
• archiving and printing a report enabling a reliable assessment of the study (such an report contains ECG, average P-QRS-T assemblies and a table with measurement results),
• standard test protocols and the ability to define your own protocols also in RAMP mode,
• preview the report on the screen before printing the report,
• function of reanalysis of the performed test,
• presentation of 3D trends illustrating ST segment changes.

Click Here To Download Catalogue

• PBT-6 is a 4 way Motorized Tabletop with Elevating feature (66cm). A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free
• Automatic Stitching - GXR-SD system provides outstanding automatic stitching function with Source tilting method
• Digital Flat Panel Detector (FPD) – Wireless 17X14 (Csl, 4336W) with Auto Exposure Detection (AED) function, there is no DR trigger cable between detector and generator.
• Full Featured Imaging Software & Excellent Digital Image Processing:

1. Provides convenient user interface and easy operation
2. Anatomical view-based digital image processing automatically optimizes and enhances the quality of the captured image for the pictured anatomy.
3. Radiographic stand & automatic collimator control function
4. DICOM 3.0 networking interface includes Worklist, Print, Store, Query for integration with any PACS or RIS

• Included – Software, HP Laptop Computer

1. CPU≥3.2GHz
2. Memory capacity：≥4GB
3. Hard drive capacity ：≥500 GB
4. Resolution: 1280 x 1024
5. Display size： 21 inch color LCD screen
6. 64 bit Windows 10 operation system
7. Core: i5

• Power Rating - 32KW
• Generator - GXR-32S
• Rotor - Dual Speed Starter(DSS)
• Input Power - 400/480VAC, Three phase
• Line Frequency - 50/60Hz
• X-ray tube - DXT-12M, (0.6/1.2mm, 300kHU)
• Tube Voltage - 40 to 150kV, 1kV Step
• Tube Current – 10 to 640mA
• Output - 640mA@81kV,  500mA@104kV, 400mA@130kV, 320mA@150kV
• Time Range - 1ms to 10s
• mAs Range - 0.1 to 800mAs
• Reproducibility - Coe­cient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
• Accuracy - kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
• Linearity - Coe­cient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
