High-precision Pulsatile Pump

Brands: Preclinic

~~$0.00~~

Shipped From Abroad

The Pulsatile Pump is a medical simulation device designed to mimic the pulsating flow of blood in cardiovascular training, research, and device testing.

Delivery & Availability:
Typically 10-21 working days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Brands:: Preclinic

Description
Reviews (0)

Description

Product Description

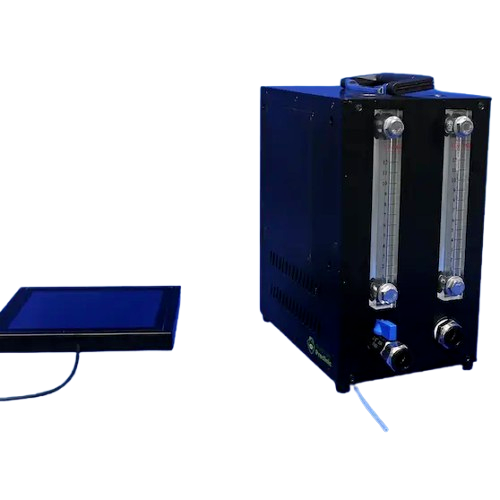

The High-Precision Pulsatile Pump by Preclinic is a medical simulation device designed to mimic the pulsating flow of blood in cardiovascular training, research, and device testing. It allows adjustment of critical parameters like pulse frequency, flow rate, pressure, and temperature to replicate realistic arterial and venous conditions. The pump includes a control system with touch-screen display, a fluid circuit module (for heated/temperature controlled fluid), and pressure monitoring interfaces. It’s ideal for medical schools, training centers, and research labs looking for high accuracy and reliability in simulating hemodynamics.

Key Features & Specifications

Feature	Detail
Model	PLPTXG003 (High-Precision Pulsatile Pump)
Voltage / Frequency	90-240 VAC, 50-60 Hz
Pulse Frequency	20-180 beats/min
Cardiac Output	7 L/min at ~72 beats/min maximum output
Pressure Range	0-250 mmHg
Pressure Accuracy	±2 mmHg
Temperature Control Accuracy	±0.5 °C
Maximum Power	800 W
Dimensions	290 × 165 × 290 mm
Weight	10 kg (gross)
Fluid Compatibility	Water, lubricating-fluid, blood-like liquids
Display / Controls	Touch screen + output curve display of parameters

Reviews

There are no reviews yet.

Be the first to review “High-precision Pulsatile Pump”
