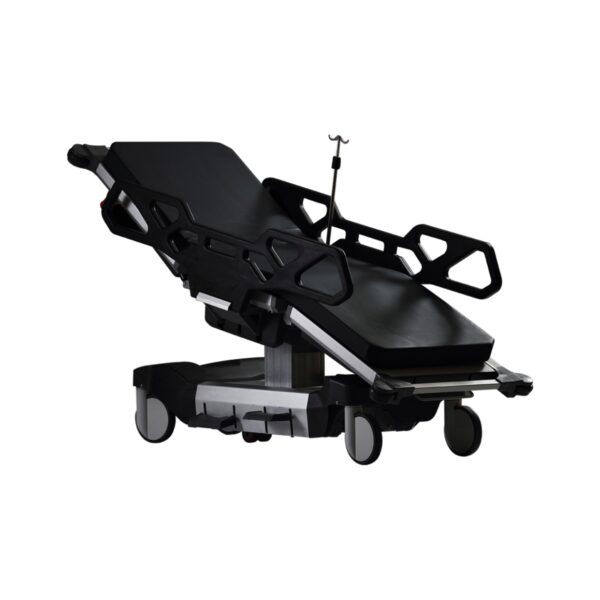

Linealife OTTO-5100 Emergency Stretcher

Brands: Linealife

Ask for Price0.00 €

In Stock

Features:

1.Movement: Backrest adjusted by two gas springs (800N) Max. 75
• 2. Movement : Legrest adjusted by two gas springs (800 N) Max 25®
• 3. Movement : Height adjusted by hydraulic pump (4500 N).
• 4. Movement : Trendelenburg and reverse trendelenburg adjusted by
four gas springs (1000 N).
• Produced by aluminium (%70).

Delivery & Availability:
Typically 14-21 Working Days – excluding furniture and heavy/bulky equipment. Please contact us for further information.

Compare

Add to quote

Sku:

SF10335601260

Tags:

Deal of the day / Linearlife OTTO-5100 Emergency Stretcher

Brands:: Linealife

Description

Features:

1.Movement: Backrest adjusted by two gas springs (800N) Max. 75
• 2. Movement : Legrest adjusted by two gas springs (800 N) Max 25®
• 3. Movement : Height adjusted by hydraulic pump (4500 N).
• 4. Movement : Trendelenburg and reverse trendelenburg adjusted by
four gas springs (1000 N).
• Produced by aluminium (%70).
• Epoxy painted metal frame (60 micron).
• Movable parts coated with galvanized.
• 200 mm central brake casters , 75 mm 5th castor.
• One castor is antistatic.
• X-Ray translucent.
• Mattress platform produced by HPL.
• Side rails structure : 20x20x1,5 mm profile covered by polyurethane.
• 3 lt tube holder.
• File holder on backrest.
• 3 mm ABS plastic covered on back and leg sides.
• Aluminium hinges.
• 7 mm aluminium column profile by 6063 T5 block.
• S.S Foldable serum holder with two hooks.
• Bumpers .
• Mattress platform produced by 8 mm HP.

Technical Specification:

• Width: 817 MM
  • Length: 2215 MM
  • Mattresses Dimensions (MM): 600X 1995X100
  • Min. Height: 560 + 230 MM
  • Max. Height: 790 MM
  • Back Angle (Max.): 70®
  • Leg Angle (Max.): 25®
  • Trendelenburg Angle: 14®
  • Reverse Trendelenburg Angle: 13®
  • Carrying Capacity: 250 KG
  • Wheel: 200 MM
